Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 12, 2017, 10:03 AM

  • 01 1320_01 0802_12042017_030352.mp4

Date
04/12/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P01619
Time
3:03 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4425
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0802
Downstream MH
01 1320
Dir. of Survey
Upstream
Length Surveyed
342.2 ft.
Total Length
342.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
2
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole 01 0802 to 01 1320
MH: 01 0802MH: 01 1320upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 13202.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish336.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 12"340.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start342.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE342.2 ft. MWM - Water Mark, 35 %of cross sectional area342.2 ft. MWL - Water Level, 25 %of cross sectional area342.2 ft. AMH - Downstream Manhole, Survey Begins - 01 0802

Observation photos (2)

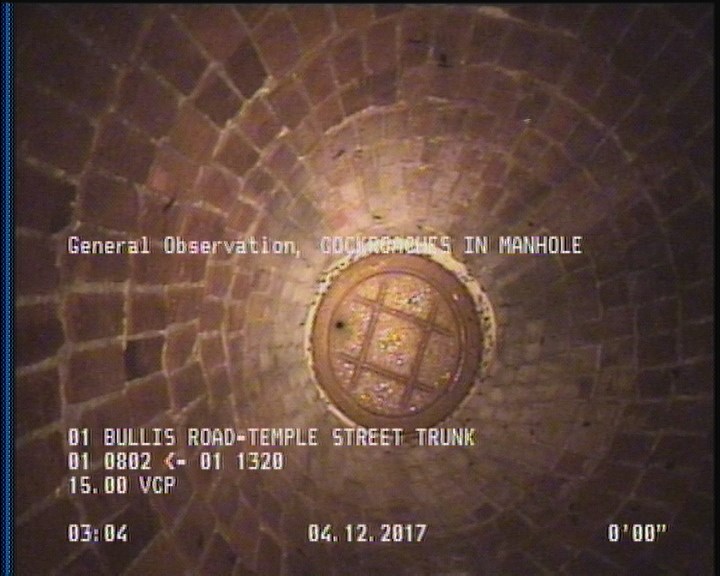

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

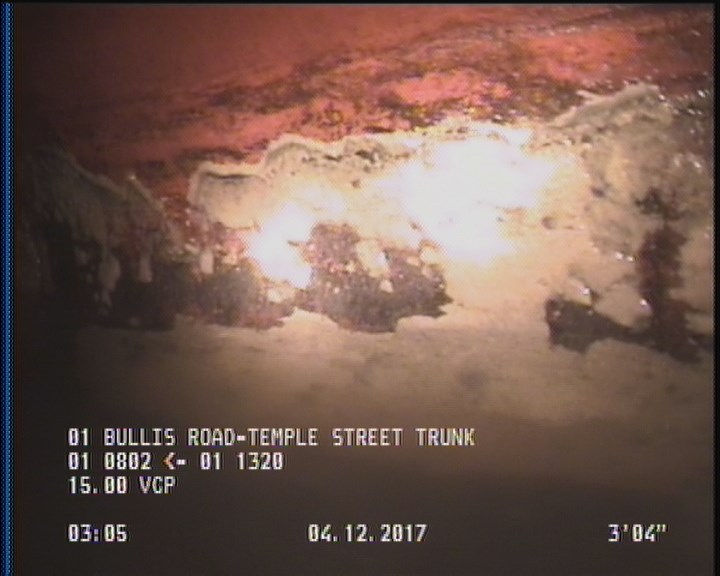

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01619Work order 630043

Observations (8)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
2DAGS—
0MWM—
0MWL—
5.3TFC—
342.2AMH01 1320
339.9DAGS—
0AMH01 0802

Properties (6)

additional_info
SC306994
custom_field_two
4
customer
LACSD
datetime
2017-04-12T03:03:05-07:00
documentation
PRO PIPE
is_lateral_inspection
false
