Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 08:29 PM

  • 01 0107_01 0106A_762017_133133.mp4

Date
07/06/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00203
PipeID
P26560
Time
1:29 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7455
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 1
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
15
Purpose
Maintenance Related
Project
20170706DF_COMPTON_CREEK_EXT_TR_SEC_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 0107
Downstream MH
01 0106A
Dir. of Survey
Downstream
Length Surveyed
249 ft.
Total Length
249 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 01 0107 to 01 0106A
MH: 01 0107MH: 01 0106Adownstream0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:30 PM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start80.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open179.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"179.8 ft. MGP - General Photograph220.8 ft. MGP - General Photograph248.5 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES248.5 ft. MGP - General Photograph - GREASE/ENCRUSTATION248.5 ft. MGP - General Photograph248.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish248.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish249 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. UNKNOWN249 ft. AMH - Downstream Manhole, Survey Ends - 1:47 PM

Observation photos (6)

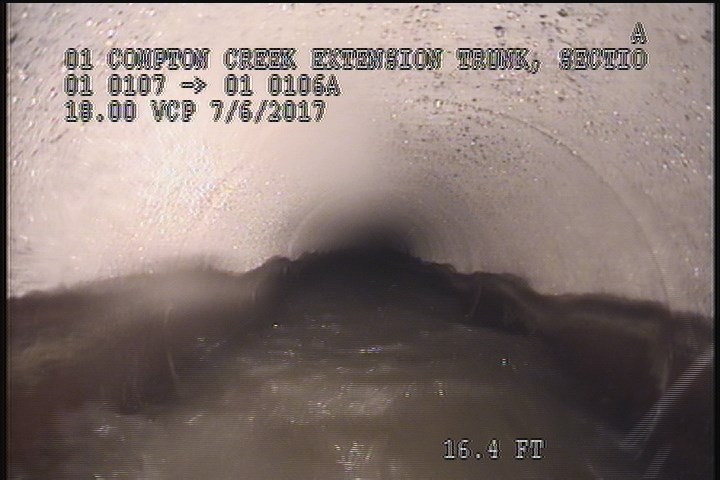

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

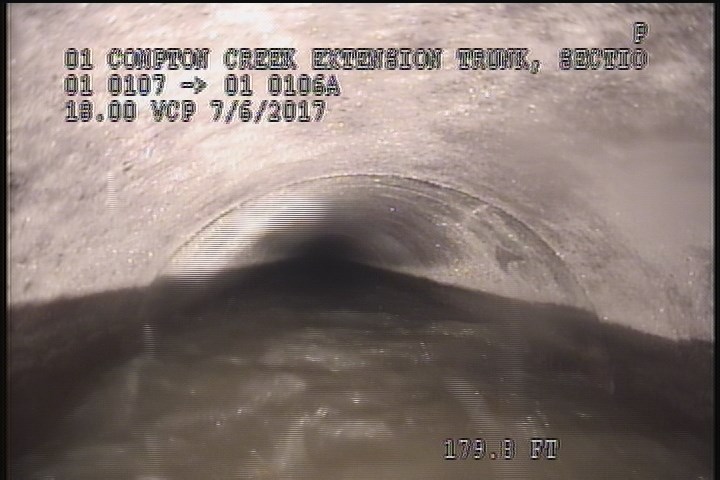

  • General Photograph

    179.8 ft. - General Photograph

  • General Photograph

    220.8 ft. - General Photograph

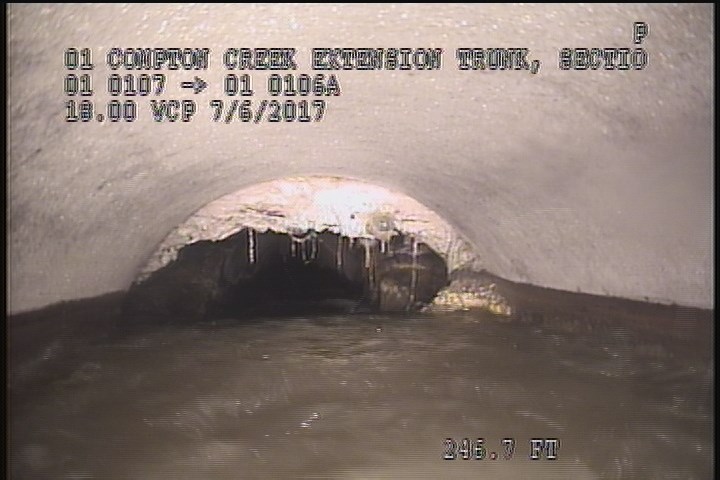

  • Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

    248.5 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

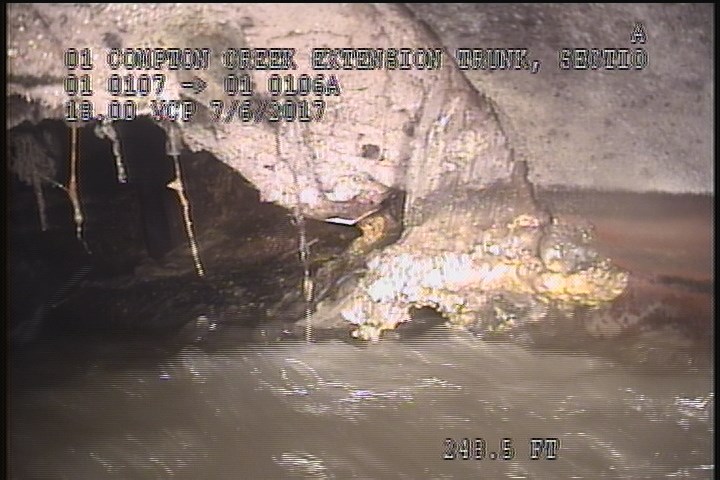

  • General Photograph - GREASE/ENCRUSTATION

    248.5 ft. - General Photograph - GREASE/ENCRUSTATION

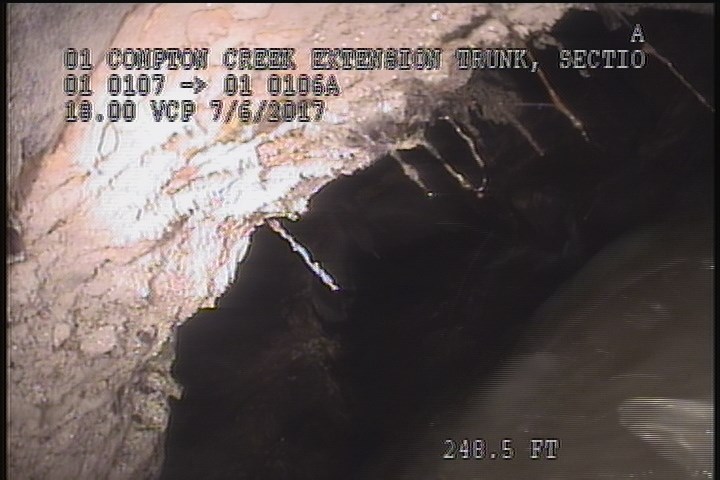

  • General Photograph

    248.5 ft. - General Photograph

All inspections of P26560Work order PENDING

Observations (16)

DistanceCodeObservation
249MGOConn. @ Mh, 3 O' Clock. UNKNOWN
0MWM—
179.8TFC—
179.8MGP—
80.1TFOpen
248.5DAGS—
220.8MGP—
248.7SSS—
2SSS—
249AMH1:47 PM
2CM—
248.7CM—
248.5MGPGREASE/ENCRUSTATION
0MWL—
0AMH1:30 PM
248.5MGP—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2017-07-06T13:29:28-07:00
documentation
FRANKLIN, IGNACIO, BRAR
is_lateral_inspection
false
