Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 08:35 AM

  • Section#6_F 0156_F 0155__762017__G6776.mp4

Date
07/06/2017
W/O
0649649
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00043
PipeID
P10290
Time
1:35 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6776
Sewer Name
F JOINT OUTFALL F - UNIT 7A
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37
Purpose
Routine Assessment
Project
20170705MDM_JOINT_OUTFALL_F_UNIT_7A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Upstream MH
F 0156
Downstream MH
F 0155
Dir. of Survey
Downstream
Length Surveyed
449.2 ft.
Total Length
449.2 ft.
Structural Index
4
Structural Quick
524Q
Structural Rating
374
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
374
Pipe schematic from manhole F 0156 to F 0155
MH: F 0156MH: F 0155downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG0 ft. AMH - Upstream Manhole, Survey Begins - 2:15AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 STUB2 ft. MGO - General Observation - MAG COAT 30% START 8:00 TO 4:002 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - CIRCUM REBAR2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG9.1 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish - CIRCUM REBAR118.1 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG398.5 ft. MGO - General Observation - MAG COAT 40%449.2 ft. AMH - Downstream Manhole, Survey Ends - 2:45AM449.2 ft. MGO - General Observation - MAG COAT 30% FINISH449.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG

Observation photos (5)

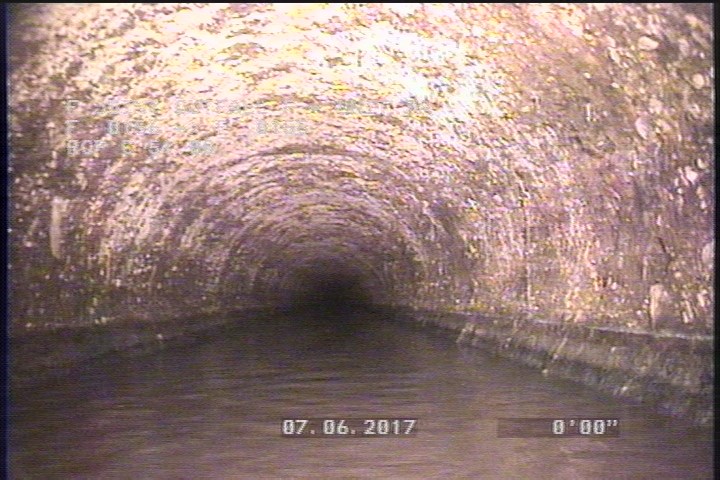

  • General Observation - MAG COAT 30% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 30% START 8:00 TO 4:00

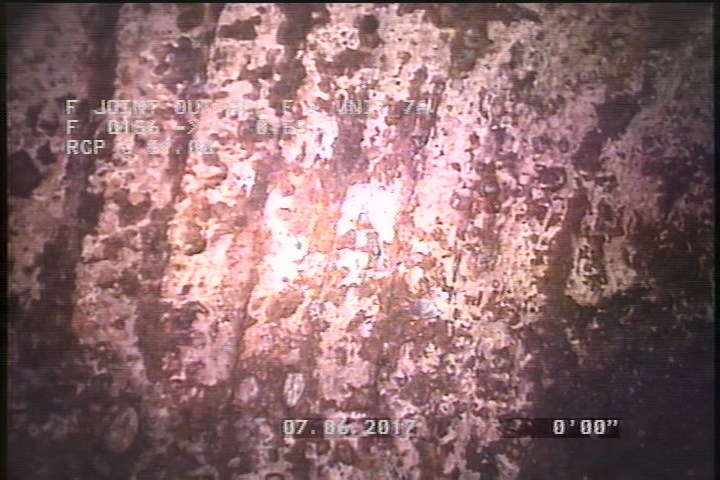

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - CIRCUM REBAR

    2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - CIRCUM REBAR

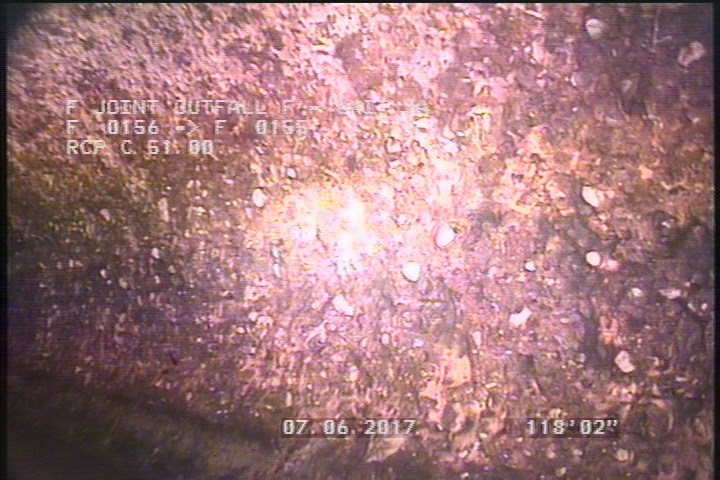

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    118.1 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

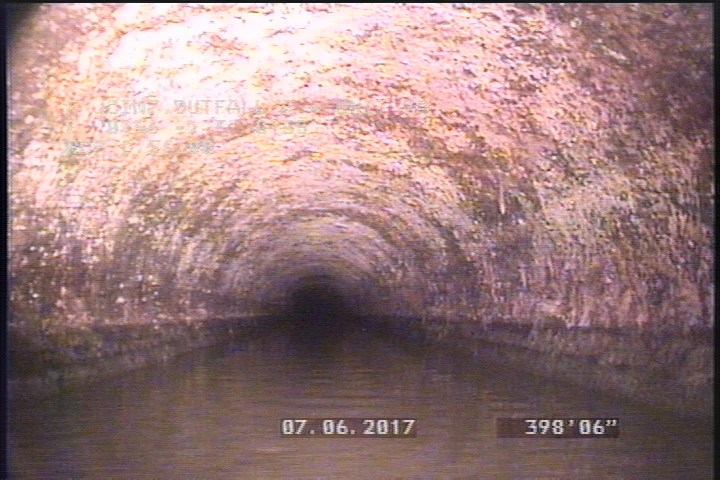

  • General Observation - MAG COAT 40%

    398.5 ft. - General Observation - MAG COAT 40%

All inspections of P10290Work order 0649649

Observations (14)

DistanceCodeObservation
118.1SAMSEVERE AGG
2MGOMAG COAT 30% START 8:00 TO 4:00
0MWL—
0SAMSEVERE AGG
9.1SRVCIRCUM REBAR
449.2AMH2:45AM
449.2MGOMAG COAT 30% FINISH
0AMH2:15AM
449.2SAMSEVERE AGG
398.5MGOMAG COAT 40%
2SRVCIRCUM REBAR
0MWM—
0MGOMH CONN 9:00 STUB
2SAMSEVERE AGG

Properties (6)

custom_field_three
VISIBLE CIRCUM REBAR 1 AREA OBSERVED
custom_field_two
2
customer
LACSD
datetime
2017-07-06T01:35:23-07:00
documentation
MARTIN,MANANES,REVELES,LIVER 111
is_lateral_inspection
false
