Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 26, 2017, 08:56 AM

  • 29 0815_29 0816 _20170526_021300.mp4

Date
05/26/2017
W/O
641199
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01117
PipeID
P25698
Time
1:56 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4611
Sewer Name
29 REDONDO AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_641199_TV29027_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0815
Downstream MH
29 0816
Dir. of Survey
Downstream
Length Surveyed
180.8 ft.
Total Length
180.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0815 to 29 0816
MH: 29 0815MH: 29 0816downstream0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 08150 ft. MWL - Water Level, 5 %of cross sectional area6.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"9.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"58.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"94.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"130 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"167.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"172.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"173.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 04 o'clock, , within 8 inches of joint: YES180.8 ft. AMH - Downstream Manhole, Survey Ends - 29 0816

Observation photos (1)

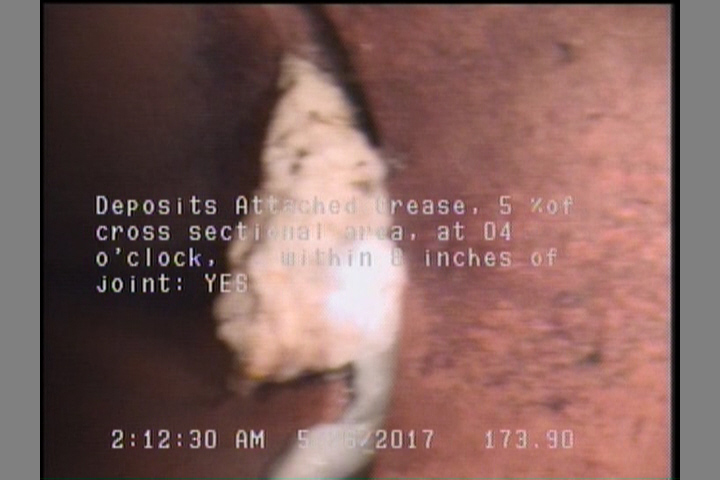

  • Deposits Attached Grease, 5 %of cross sectional area, at 04 o'clock, , within 8 inches of joint: YES

    173.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 04 o'clock, , within 8 inches of joint: YES

All inspections of P25698Work order 641199

Observations (14)

DistanceCodeObservation
150.6TF—
0MWM—
9.7TF—
58.3TF—
172.8TF—
167.7TF—
130TF—
180.8AMH29 0816
0AMH29 0815
0MWL—
94.6TF—
6.8TF—
78.6TF—
173.9DAGS—

Properties (7)

additional_info
SC345322
custom_field_two
4
customer
LACSD
datetime
2017-05-26T01:56:11-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
38855
