Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 27, 2017, 04:30 AM

  • 29 0603_29 0602 _20170626_222322.mp4

Date
06/26/2017
W/O
641199
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01117
PipeID
P24848
Time
9:30 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4626
Sewer Name
29 REDONDO AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Routine Assessment
Project
WO_641199_TV29027_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0603
Downstream MH
29 0602
Dir. of Survey
Downstream
Length Surveyed
167 ft.
Total Length
167 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0603 to 29 0602
MH: 29 0603MH: 29 0602downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 06030 ft. MWL - Water Level, 5 %of cross sectional area3.6 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES5.1 ft. MWM - Water Mark, 5 %of cross sectional area7.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"9.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"19.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"27.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"29.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"69.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"84 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"122.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"131.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"167 ft. AMH - Downstream Manhole, Survey Ends - 29 0602

Observation photos (1)

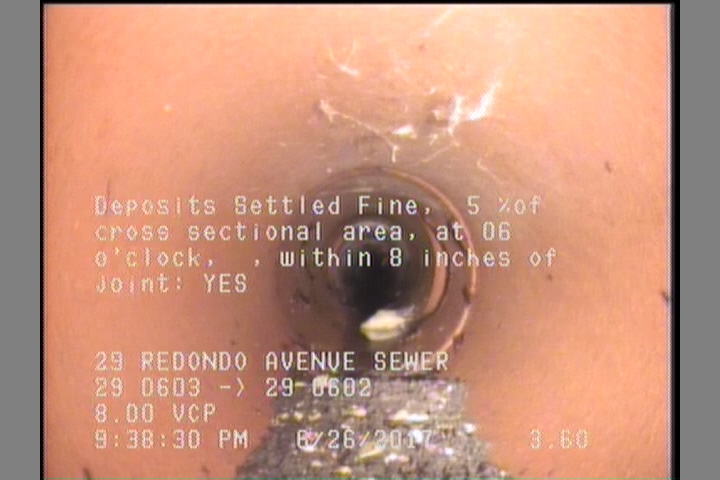

  • Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

    3.6 ft. - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

All inspections of P24848Work order 641199

Observations (14)

DistanceCodeObservation
19.2TF—
3.6DSF—
29.4TF—
9.8TF—
0AMH29 0603
7.6TF—
131.6TF—
122.7TF—
84TF—
69.1TF—
5.1MWM—
27.1TF—
0MWL—
167AMH29 0602

Properties (6)

additional_info
SC345343
custom_field_two
4
customer
LACSD
datetime
2017-06-26T21:30:23-07:00
documentation
PROPIPE
is_lateral_inspection
false
