Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 03:28 PM

  • 29 0209_29 0208_8162017_094211.mp4

Date
08/16/2017
W/O
0657414
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z01026
PipeID
P24111
Time
8:28 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7492
Sewer Name
29 28TH STREET PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20170816SHO_28TH_STREET_PUMPING_PLANT_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0209
Downstream MH
29 0208
Dir. of Survey
Downstream
Length Surveyed
301.1 ft.
Total Length
301.1 ft.
Structural Index
2
Structural Quick
2511
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 29 0209 to 29 0208
MH: 29 0209MH: 29 0208downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 09400 ft. MWL - Water Level, 5 %of cross sectional area12.3 ft. CS - Crack Spiral, from 12 to 12 o'clock, within 8 inches of joint: YES, 6ft, Start - JUST ABOUT EVERY JOINT28.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"51.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"63.9 ft. JOM - Joint Offset Medium74.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"75.5 ft. SSS - Surface Spalling, at 10 o'clock, within 8 inches of joint: YES91 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES92 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"104.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"152.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - OPEN164 ft. SSS - Surface Spalling, at 10 o'clock, within 8 inches of joint: YES175.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"197.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"260.7 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"262.4 ft. SSS - Surface Spalling, from 09 to 10 o'clock, within 8 inches of joint: YES280 ft. CS - Crack Spiral, from 12 to 12 o'clock, within 8 inches of joint: YES, 6ft, 6ft, Finish301.1 ft. AMH - Downstream Manhole, Survey Ends - 1005

Observation photos (3)

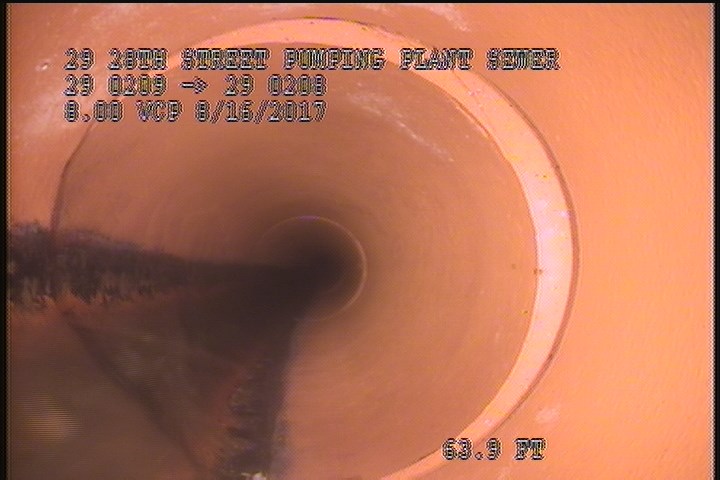

  • Joint Offset Medium

    63.9 ft. - Joint Offset Medium

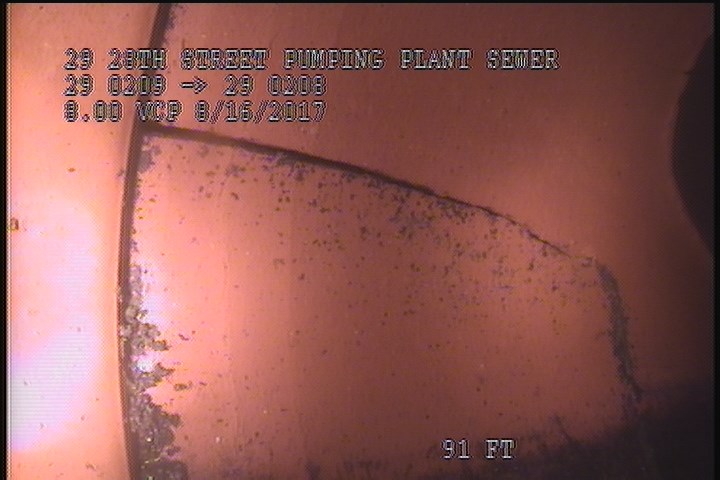

  • Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES

    91 ft. - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES

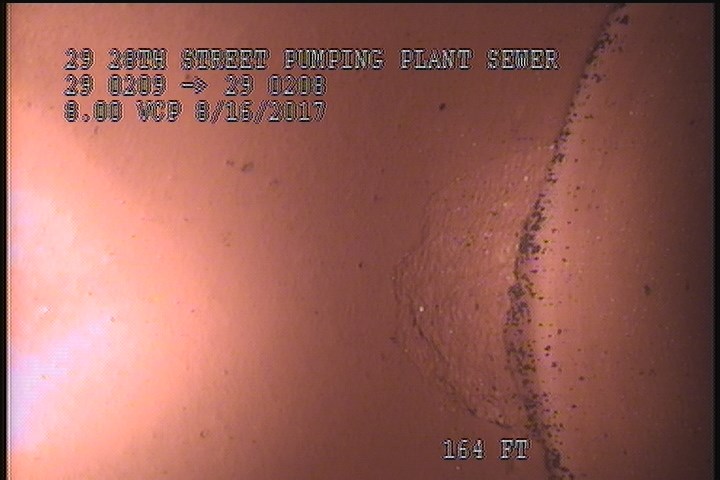

  • Surface Spalling, at 10 o'clock, within 8 inches of joint: YES

    164 ft. - Surface Spalling, at 10 o'clock, within 8 inches of joint: YES

All inspections of P24111Work order 0657414

Observations (20)

DistanceCodeObservation
12.3CSJUST ABOUT EVERY JOINT
63.9JOM—
91FC—
164SSS—
301.1AMH1005
104.8TFC—
175.2TFC—
0MWM—
28.2TFA—
0AMH0940
92TFC—
280CS—
260.7TFC—
152.5TFOPEN
75.5SSS—
51.4TFA—
74.2TFC—
197.9TFC—
0MWL—
262.4SSS—

Properties (6)

custom_field_three
CRACKS
custom_field_two
3
customer
LACSD
datetime
2017-08-16T08:28:06-07:00
documentation
OBREGON, IGNACIO, BRAR
is_lateral_inspection
false
