Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 14, 2017, 06:01 PM

  • 29 0205_29 0204_8142017_111639.mp4

Date
08/14/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01026
PipeID
P24107
Time
11:01 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7490
Sewer Name
29 28TH STREET PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20170814DF_28TH_ST_P_P_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0205
Downstream MH
29 0204
Dir. of Survey
Downstream
Length Surveyed
217.6 ft.
Total Length
217.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0205 to 29 0204
MH: 29 0205MH: 29 0204downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:13 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start15.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"37.4 ft. MGP - General Photograph - SLIGHT OFF SET JOINT38.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"66.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"89.1 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open111.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"139.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"161.9 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"189.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"194.4 ft. MGP - General Photograph - SPALLING202.7 ft. MGP - General Photograph - SPALLING208.1 ft. MGP - General Photograph - SPALLING215 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish215 ft. MGO - General Observation - Grease Throughout The Reach (5%)217.6 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active217.6 ft. AMH - Downstream Manhole, Survey Ends - 11:41 AM217.6 ft. MGO - General Observation - ROACHES @ MH

Observation photos (5)

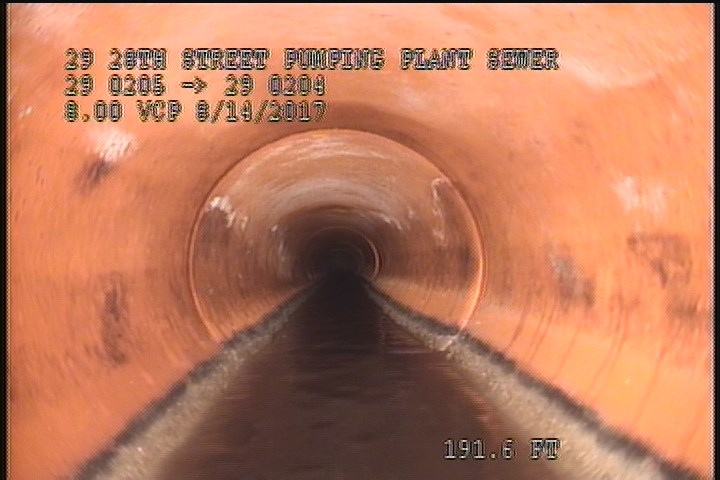

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

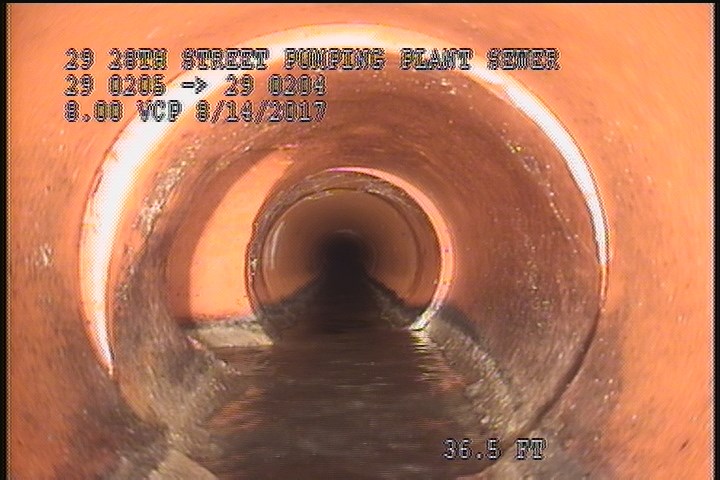

  • General Photograph - SLIGHT OFF SET JOINT

    37.4 ft. - General Photograph - SLIGHT OFF SET JOINT

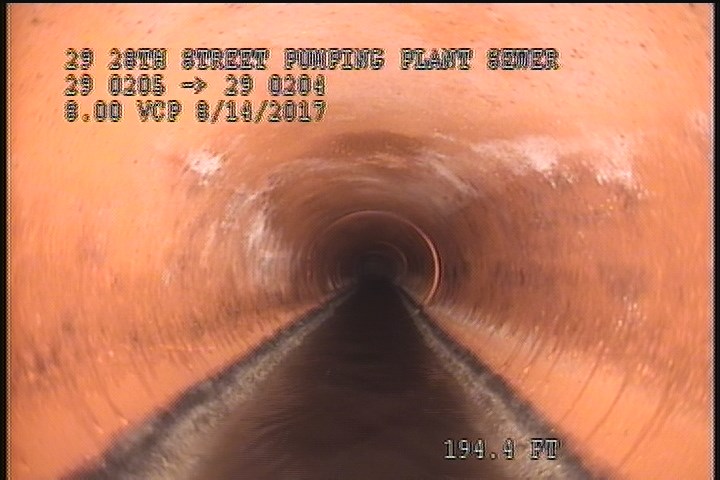

  • General Photograph - SPALLING

    194.4 ft. - General Photograph - SPALLING

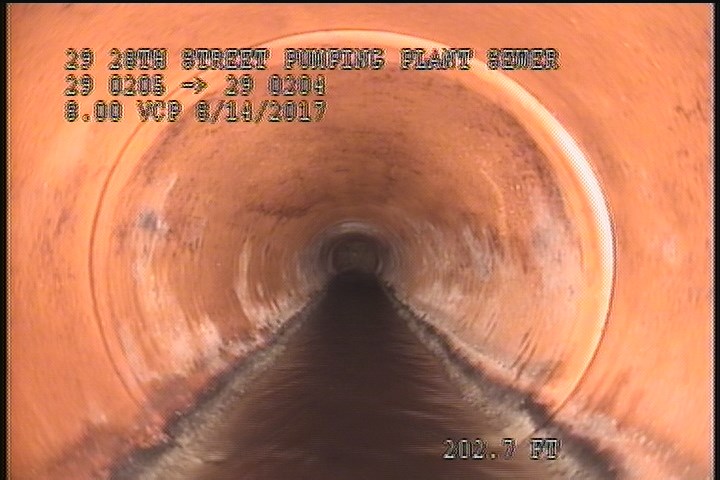

  • General Photograph - SPALLING

    202.7 ft. - General Photograph - SPALLING

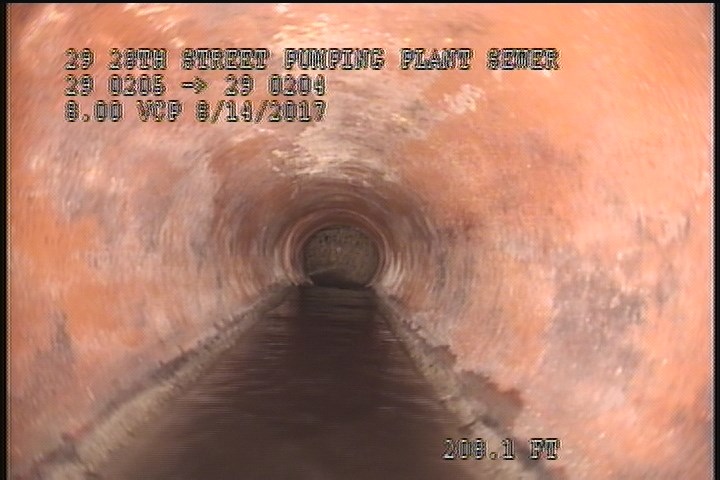

  • General Photograph - SPALLING

    208.1 ft. - General Photograph - SPALLING

All inspections of P24107Work order PENDING

Observations (22)

DistanceCodeObservation
15.4TFA—
139.7TFC—
0MWL—
37.4MGPSLIGHT OFF SET JOINT
189.6TFC—
217.6MGOConn. @ Mh, 9 O' Clock. Active
0MGOROACHES @ MH
194.4MGPSPALLING
89.1TFOpen
215SSS—
2SSS—
217.6AMH11:41 AM
208.1MGPSPALLING
0MWM—
202.7MGPSPALLING
217.6MGOROACHES @ MH
0AMH11:13 AM
215MGOGrease Throughout The Reach (5%)
66.6TFC—
161.9TFA—
38.6TFA—
111.8TFC—
