  • 29 0212_29 0211_8142017_082451.mp4

Date
08/14/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01026
PipeID
P24114
Time
8:12 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7490
Sewer Name
29 28TH STREET PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20170814DF_28TH_ST_P_P_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0212
Downstream MH
29 0211
Dir. of Survey
Downstream
Length Surveyed
250.4 ft.
Total Length
250.4 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0212 to 29 0211
MH: 29 0212MH: 29 0211downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:10 AM0.1 ft. MWL - Water Level, 5 %of cross sectional area0.1 ft. MWM - Water Mark, 10 %of cross sectional area1.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open14.2 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"42.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open59.2 ft. MGO - General Observation - CHIPPING FROM 5 TO 7 O'CLOCK90.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"109 ft. MGP - General Photograph - SPALLING112.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"140.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"162.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"180.9 ft. MGP - General Photograph - SPALLING190.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"213.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"235.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"249.2 ft. MGO - General Observation - Grease Throughout The Reach (5%)249.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish250.4 ft. AMH - Downstream Manhole, Survey Ends - 8:56 AM250.4 ft. MGO - General Observation - ROACHES @ MH

Observation photos (4)

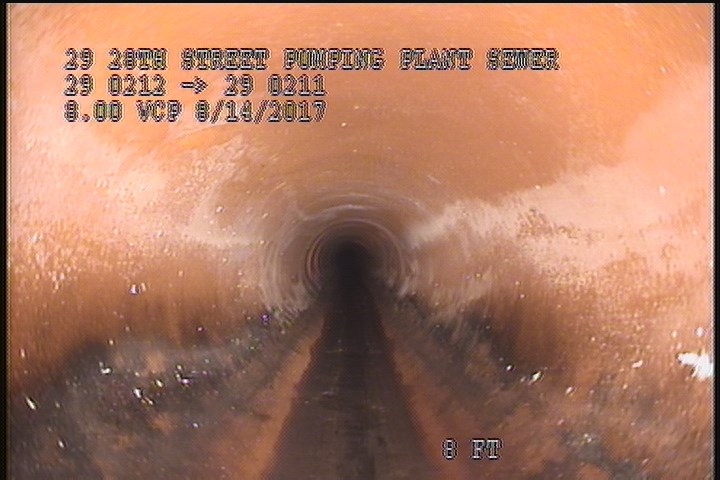

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

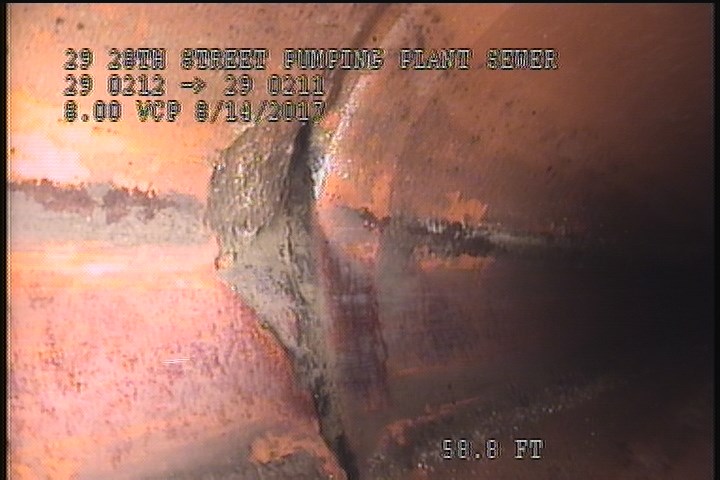

  • General Observation - CHIPPING FROM 5 TO 7 O'CLOCK

    59.2 ft. - General Observation - CHIPPING FROM 5 TO 7 O'CLOCK

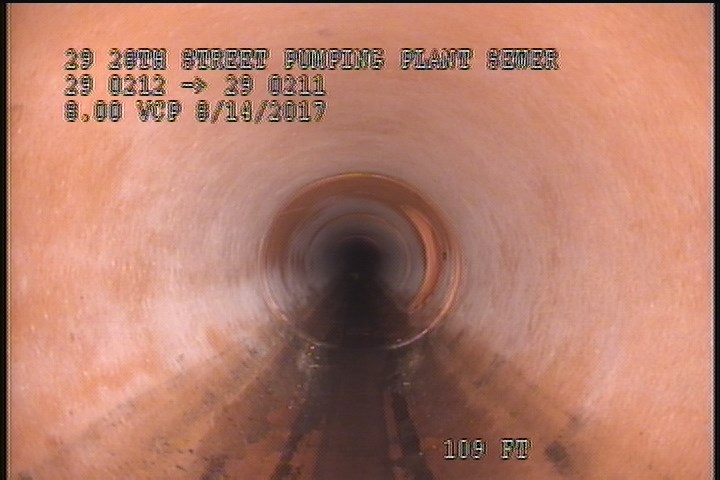

  • General Photograph - SPALLING

    109 ft. - General Photograph - SPALLING

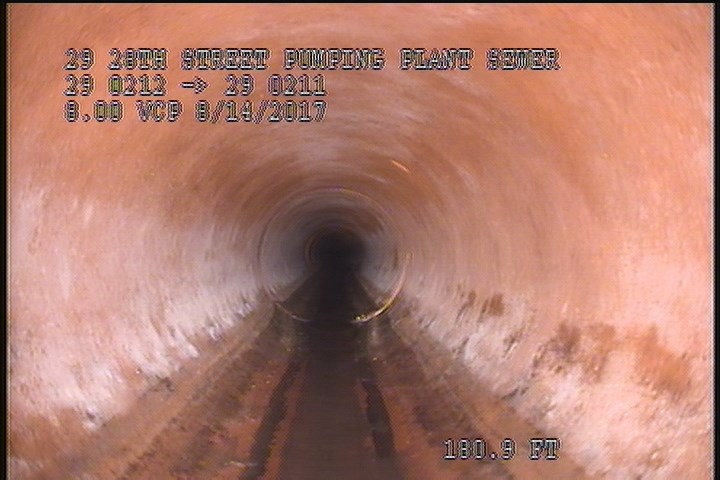

  • General Photograph - SPALLING

    180.9 ft. - General Photograph - SPALLING

All inspections of P24114Work order PENDING

Observations (21)

DistanceCodeObservation
112.9TFC—
235.9TFC—
90.1TFC—
249.2MGOGrease Throughout The Reach (5%)
213.2TFC—
3.6TFOpen
0.1MWL—
250.4AMH8:56 AM
42.6TFOpen
0AMH8:10 AM
14.2TFC—
162.9TFC—
249.2SSS—
250.4MGOROACHES @ MH
109MGPSPALLING
1.5SSS—
190.5TFC—
140.3TFC—
0.1MWM—
180.9MGPSPALLING
59.2MGOCHIPPING FROM 5 TO 7 O'CLOCK

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2017-08-14T08:12:19-07:00
documentation
FRANKLIN, IGNACIO
is_lateral_inspection
false
