Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 1, 2016, 10:30 AM

  • 02 2250_02 2249 _12012016_023923.mp4

Date
12/01/2016
W/O
602592
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00353
PipeID
P04570
Time
2:30 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3928
Sewer Name
02 TRACT #5445 RELIEF TRUNK
City
LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602592_TV02117_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 2250
Downstream MH
02 2249
Dir. of Survey
Downstream
Length Surveyed
239.1 ft.
Total Length
239.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 02 2250 to 02 2249
MH: 02 2250MH: 02 2249downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 22500 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area7.1 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES84.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"87.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"133.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"136.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"182.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"185.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start185.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"193.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish239.1 ft. AMH - Downstream Manhole, Survey Ends - 02 2249

Observation photos (2)

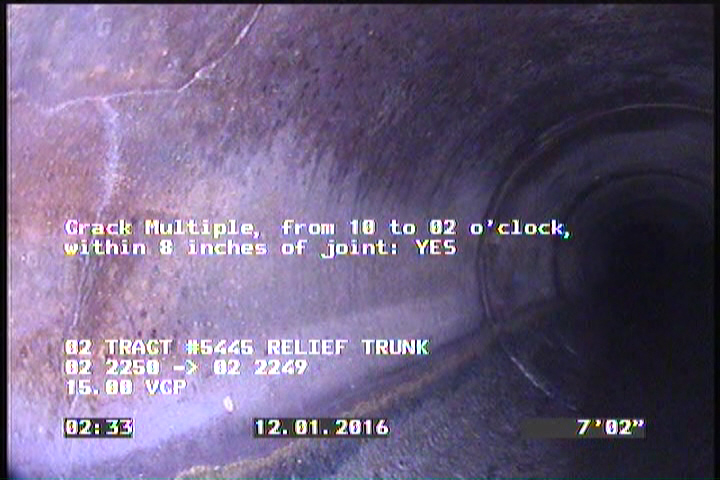

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    7.1 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

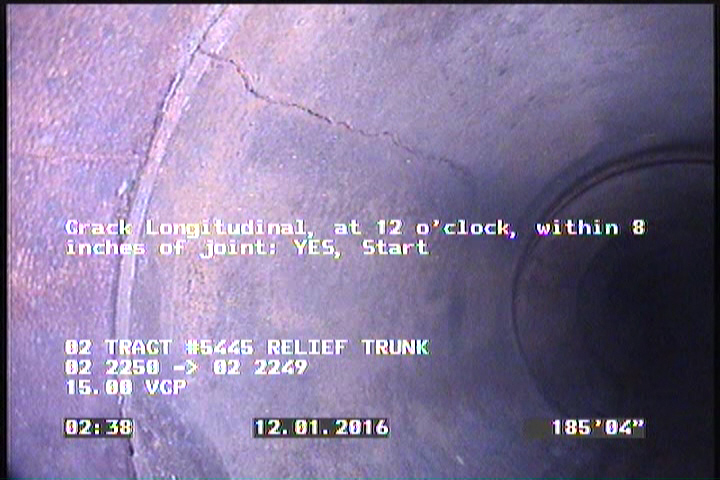

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    185.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P04570Work order 602592

Observations (13)

DistanceCodeObservation
133.7TF—
0AMH02 2250
136.6TFA—
0MWM—
87.5TF—
84.7TFC—
0MWL—
185.4CL—
7.1CM—
193.8CL—
239.1AMH02 2249
182.7TF—
185.4TF—

Properties (6)

additional_info
SC317672
custom_field_two
4
customer
LACSD
datetime
2016-12-01T02:30:39-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
