Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2016, 07:31 AM

  • 02 1450_02 2250A_11292016_234332.mp4

Date
11/29/2016
W/O
602592
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00307
PipeID
P20010
Time
11:31 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3927
Sewer Name
02 TRACT #5445 TRUNK
City
LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602592_TV02117_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1450
Downstream MH
02 2250A
Dir. of Survey
Downstream
Length Surveyed
223.8 ft.
Total Length
223.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 02 1450 to 02 2250A
MH: 02 1450MH: 02 2250Adownstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 14500 ft. MWM - Water Mark, 25 %of cross sectional area4.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start34.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"37.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"78.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"96.1 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"120.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"158.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"160.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"196.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"199.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"223.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish223.8 ft. AMH - Downstream Manhole, Survey Ends - 02 2250a223.8 ft. MGO - General Observation - LATERAL AT MH 9 O CLOCK

Observation photos (1)

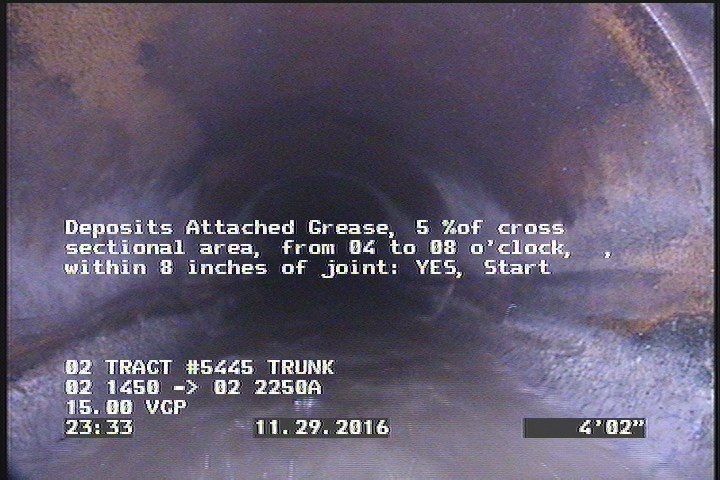

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P20010Work order 602592

Observations (16)

DistanceCodeObservation
78.4TFA—
223.8AMH02 2250a
0MWL—
4.2DAGS—
96.1TBA—
37.2TFA—
223.3DAGS—
120.1TFA—
199.4TFA—
196.9TFA—
160.7TFA—
34.6TFA—
0AMH02 1450
0MWM—
158.2TFA—
223.8MGOLATERAL AT MH 9 O CLOCK

Properties (6)

additional_info
SC317670
custom_field_two
4
customer
LACSD
datetime
2016-11-29T23:31:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
