Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2016, 06:56 AM

  • 02 1140_02 1139_11032016_235656.mp4

Date
11/03/2016
W/O
602268
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00351
PipeID
P02923
Time
11:56 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3907
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602268_TV02061_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1140
Downstream MH
02 1139
Dir. of Survey
Downstream
Length Surveyed
300 ft.
Total Length
300 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
171
O&M Index
2
O&M Quick
412K
O&M Rating
122
Overall Index
3
Overall Quick
—
Overall Rating
293
Pipe schematic from manhole 02 1140 to 02 1139
MH: 02 1140MH: 02 1139downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 11400 ft. MGO - General Observation - CAPPED CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 10 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start11.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start142 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 6"145.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"180.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"231 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"265.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"293.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"298.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish298.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE298.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish300 ft. AMH - Downstream Manhole, Survey Ends - 02 1139

Observation photos (4)

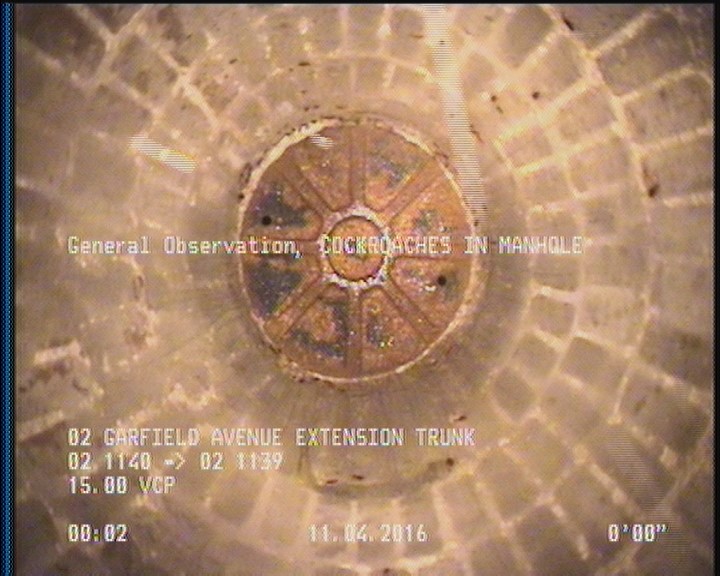

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    298.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02923Work order 602268

Observations (18)

DistanceCodeObservation
265.5TFC—
11.8CM—
0MGOCOCKROACHES IN MANHOLE
0MWL—
298.8CM—
0AMH02 1140
142TBA—
298.8MGOCOCKROACHES IN MANHOLE
231TFC—
0MGOCAPPED CONNECTION AT MH 3 O'CLOCK
293.1TFC—
298.8DAGS—
300AMH02 1139
0MWM—
145.8TFC—
0MGOACTIVE CONNECTION AT MH 10 O'CLOCK
2DAGS—
180.7TFC—

Properties (6)

additional_info
SC306345
custom_field_two
3
customer
LACSD
datetime
2016-11-03T23:56:13-07:00
documentation
PRO PIPE
is_lateral_inspection
false
