Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2017, 07:32 AM

  • 05 1105_05 1104_672017_003647.mp4

Date
06/07/2017
W/O
0635412
Weather
Dry
Operator/Surveyor
MARTIN,MANANES,REVELES
Sewer ID
Z00488
PipeID
P06340
Time
12:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0553
Sewer Name
05 MONETA EXTENSION TRUNK SECTION 1
City
CHENSHAW
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170602MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 1105
Downstream MH
05 1104
Dir. of Survey
Downstream
Length Surveyed
339.8 ft.
Total Length
339.8 ft.
Structural Index
2
Structural Quick
2D00
Structural Rating
48
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
48
Pipe schematic from manhole 05 1105 to 05 1104
MH: 05 1105MH: 05 1104downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 3 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM8 ft. MGO - General Observation - 10" VCP14.8 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT14.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT22.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE30.7 ft. FC - Fracture Circumferential, from 02 to 07 o'clock, within 8 inches of joint: YES - SL43 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE47 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE59.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H63.6 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT WITH CHIPPING83.7 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H95.9 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL95.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H108.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open115.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL115.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL135.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL225.7 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H229.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL234.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active244.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL268.6 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H277.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H289.2 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H322.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL322.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H330.2 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL330.2 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL339.8 ft. AMH - Downstream Manhole, Survey Ends - 1:20AM

Observation photos (2)

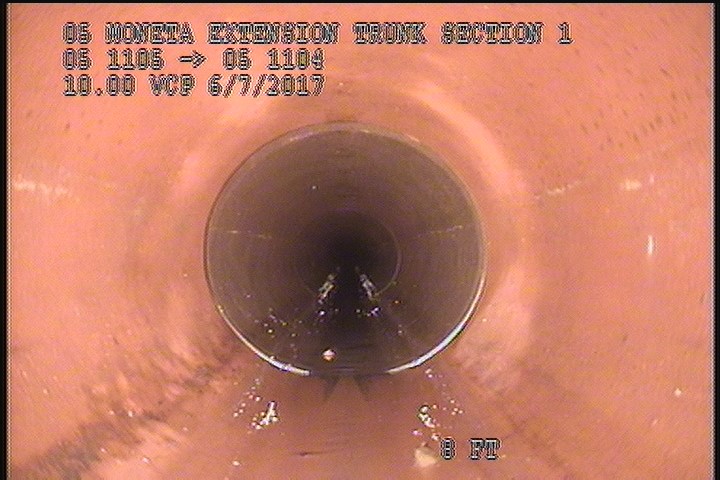

  • General Observation - 10" VCP

    8 ft. - General Observation - 10" VCP

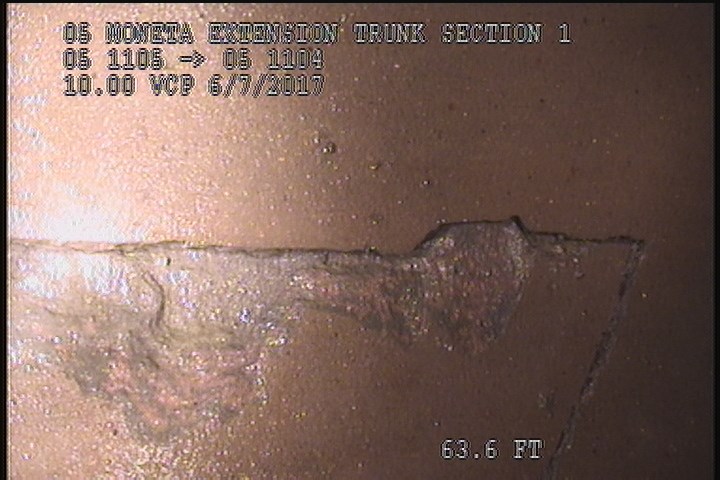

  • Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT WITH CHIPPING

    63.6 ft. - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT WITH CHIPPING

All inspections of P06340Work order 0635412

Observations (31)

DistanceCodeObservation
0MWM—
225.7FCH
277.1FCH
0MWL—
322.1FCSL
108.9TFOpen
95.9FCSL
83.7FCH
0AMH12:35AM
268.6FCH
59.1FCH
330.2FCSL
63.6FCSLIGHT WITH CHIPPING
14.8FCSLIGHT
339.8AMH1:20AM
135.6FCSL
43FCHAIRLINE
95.9FCH
115.1FCSL
289.2FCH
229.8FCSL
322.1FCH
234.5TFActive
22.6FCHAIRLINE
244.6FCSL
14.8FCSLIGHT
115.1FCSL
8MGO10" VCP
330.2FCSL
47FCHAIRLINE
30.7FCSL

Properties (6)

custom_field_three
FEW SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2017-06-07T00:32:15-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
