Wastewater/Activity/PacpInspection/1.0Jun 2, 2017, 03:03 PM
29 0026_29 0025_622017_081324.mp4
- Date
- 06/02/2017
- W/O
- 0635499
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00849
- PipeID
- P17698
- Time
- 8:03 AM
- Certificate
- 415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7423
- Sewer Name
- 29 SIGNAL HILL OUTFALL TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20170601DF_SIGNAL_HILL_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 29 0026
- Downstream MH
- 29 0025
- Dir. of Survey
- Downstream
- Length Surveyed
- 22.8 ft.
- Total Length
- 22.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

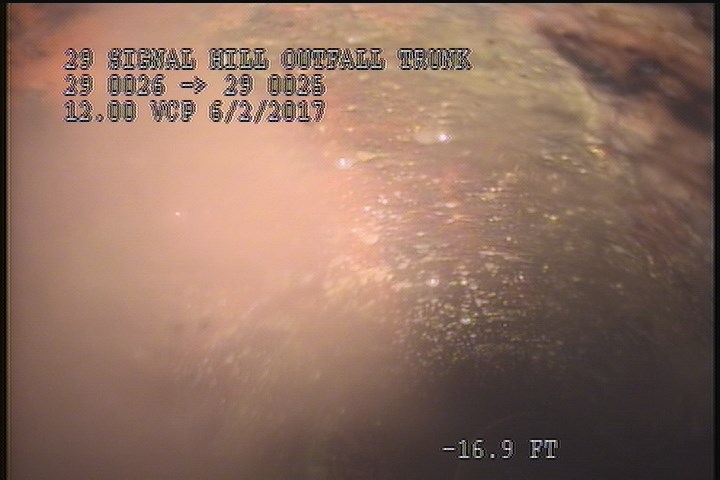

2 ft. - General Photograph

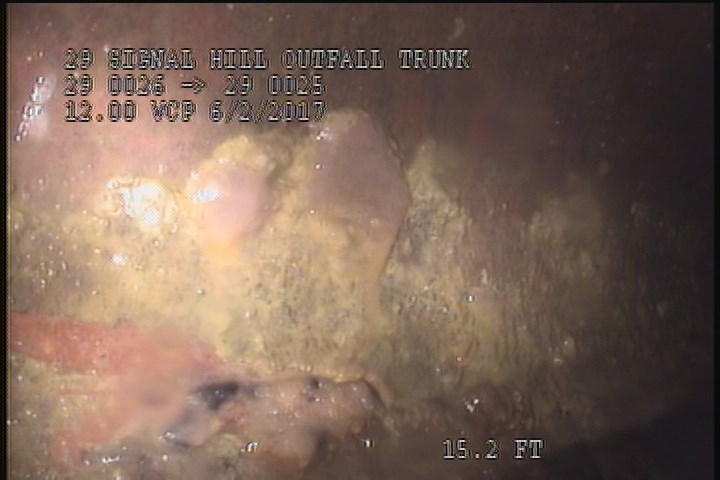

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

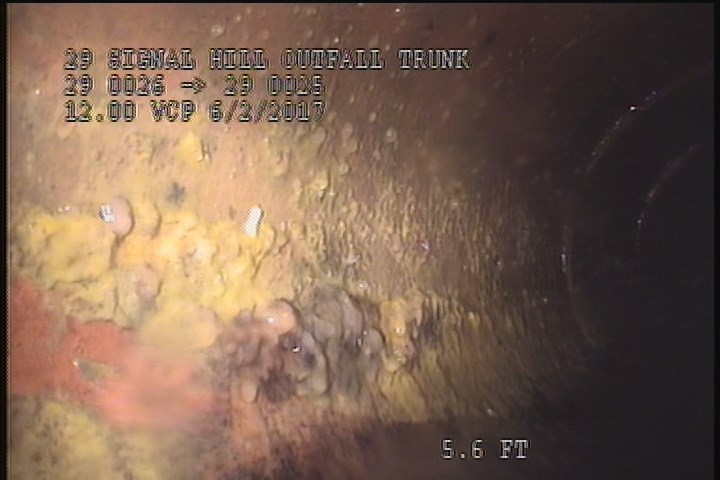

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 21 | DAGS | — |
| 2 | MGP | — |
| 2 | DAGS | — |
| 21 | DAE | — |
| 22.8 | AMH | 8:23 AM |
| 0.1 | MWL | — |
| 0.1 | MWM | — |
| 22.8 | MGO | Grease Throughout The Reach (5%) |
| 0 | AMH | 8:03 AM |
| 2 | DAE | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-02T08:03:31-07:00
- documentation
- FRANKLIN, IGNACIO, BRAR
- is_lateral_inspection
- false
