Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2017, 03:29 PM

  • 29 0594_29 0593_612017_091954.mp4

Date
06/01/2017
W/O
0640685
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01117
PipeID
P24839
Time
8:29 AM
Certificate
415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7423
Sewer Name
29 REDONDO AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20170601DF_REDONDO_AVENUE_SEWER
Material
Ductile Iron Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0594
Downstream MH
29 0593
Dir. of Survey
Downstream
Length Surveyed
8.5 ft.
Total Length
8.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 29 0594 to 29 0593
MH: 29 0594MH: 29 0593downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:18 AM0.1 ft. MWL - Water Level, 5 %of cross sectional area0.1 ft. MWM - Water Mark, 10 %of cross sectional area0.1 ft. MGO - General Observation - ROACHES @ MH2.3 ft. MMC - Material Change, Vitrified clay pipe4.1 ft. MMC - Material Change, Dictile Iron8.4 ft. MGP - General Photograph8.4 ft. MGP - General Photograph8.5 ft. MSA - Survey Abandoned - GREASE

Observation photos (4)

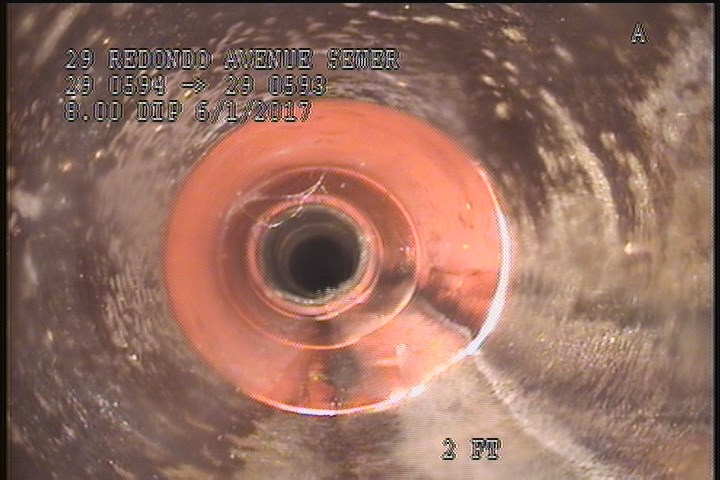

  • Material Change, Vitrified clay pipe

    2.3 ft. - Material Change, Vitrified clay pipe

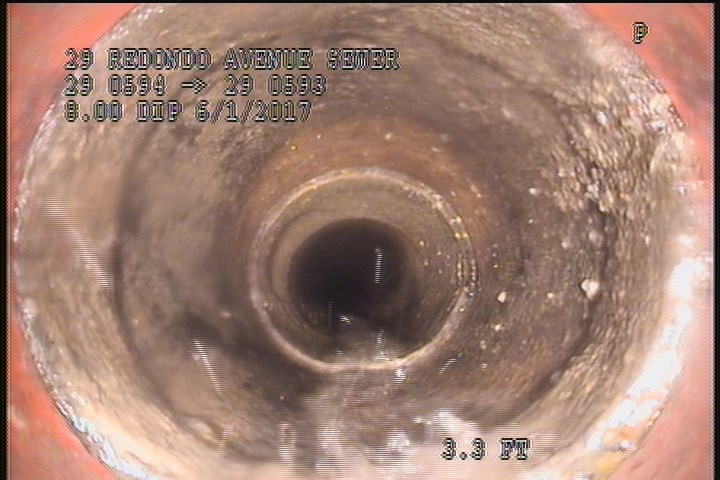

  • Material Change, Dictile Iron

    4.1 ft. - Material Change, Dictile Iron

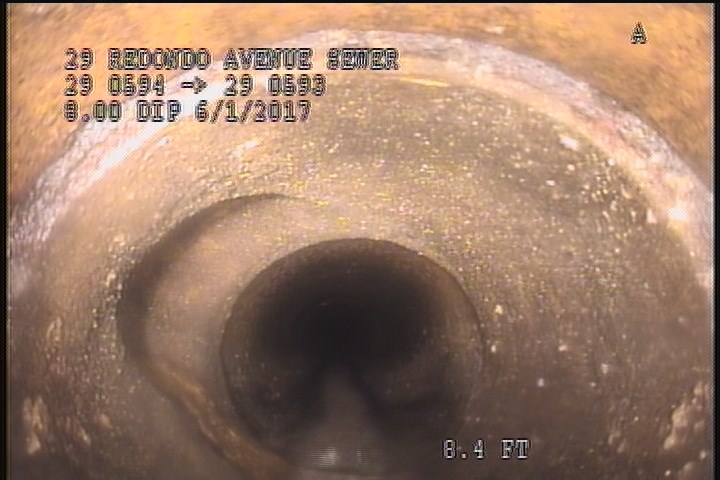

  • General Photograph

    8.4 ft. - General Photograph

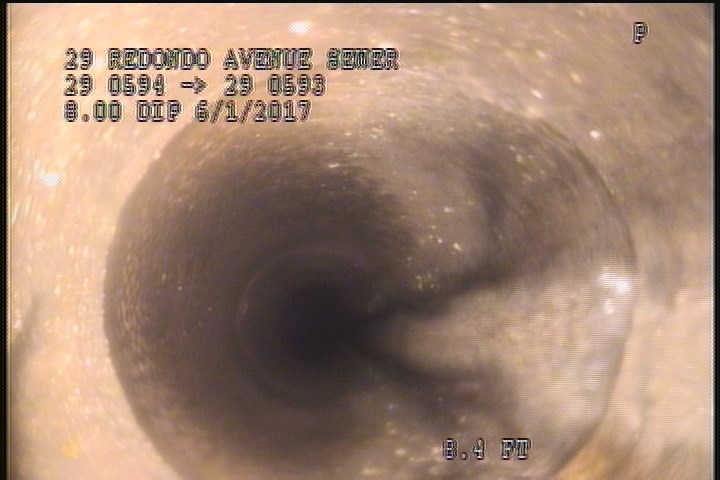

  • General Photograph

    8.4 ft. - General Photograph

All inspections of P24839Work order 0640685

Observations (9)

DistanceCodeObservation
0.1MWL—
2.3MMC—
0AMH9:18 AM
8.4MGP—
0.1MWM—
8.4MGP—
4.1MMC—
8.5MSAGREASE
0.1MGOROACHES @ MH

Properties (4)

customer
LACSD
datetime
2017-06-01T08:29:39-07:00
documentation
FRANKLIN, IGNACIO, BRAR
is_lateral_inspection
false
