Wastewater/Activity/PacpInspection/1.0Apr 4, 2017, 07:26 PM
19 0026_19 0025_04042017_Manual.mp4
- Date
- 04/04/2017
- W/O
- 0602259
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00727
- PipeID
- P15056
- Time
- 12:26 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7377
- Sewer Name
- 19 PALO VERDE TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 04042017DF_PALO_VERDE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 19 0026
- Downstream MH
- 19 0025
- Dir. of Survey
- Downstream
- Length Surveyed
- 220.1 ft.
- Total Length
- 220.1 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

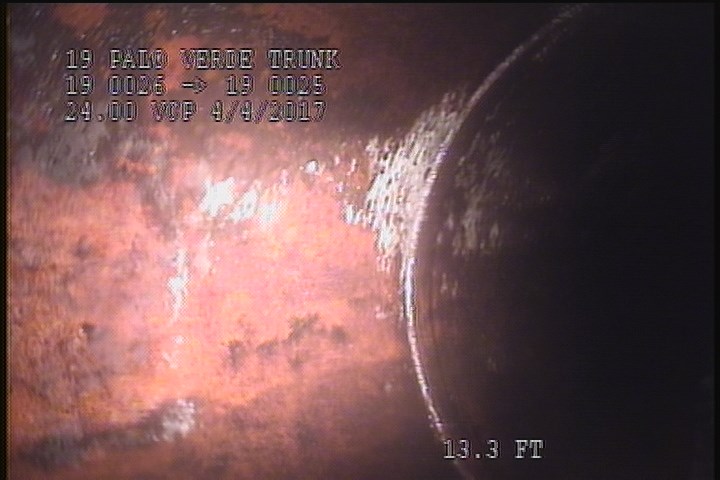

13.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

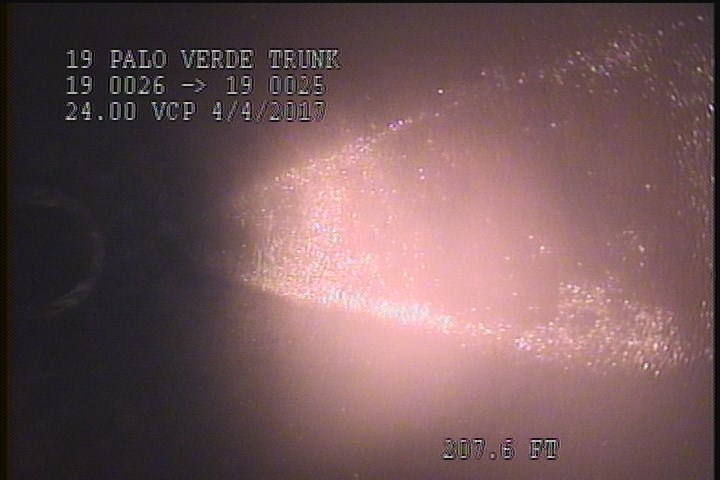

207.6 ft. - Surface Spalling, at 12 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 12:53 PM |
| 207.6 | SSS | — |
| 220.1 | AMH | 1:13 PM |
| 13.3 | SSS | — |
| 217.7 | SSS | — |
| 0 | MWM | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-04T12:26:08-07:00
- documentation
- FRANKLIN, IGNACIO, BRAR, SHADLER
- is_lateral_inspection
- false
