Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 4, 2017, 08:34 AM

  • H 1026_H 0865_442017_042147.mp4

Date
04/04/2017
W/O
0619014
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01006
PipeID
P22552
Time
1:34 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0482
Sewer Name
H JOINT OUTFALL H - UNIT 7C RELIEF
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
20170403MDM_JOINT_OUTFALL_H_UNIT_7C_RELIEF
Material
RCP-PTL
Shape
Circular
Height
66 in.
Upstream MH
H 1026
Downstream MH
H 0865
Dir. of Survey
Downstream
Length Surveyed
560.5 ft.
Total Length
560.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 1026 to H 0865
MH: H 1026MH: H 0865downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:25AM0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - 66" RCP-PTL262.2 ft. MGO - General Observation - 66" RCP-PTL366.4 ft. MGO - General Observation - PTL LINERN SMALL BLISTERS447.5 ft. MGO - General Observation - 66' RCP-PTL560.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active560.5 ft. AMH - Downstream Manhole, Survey Ends - 5:00AM

Observation photos (4)

  • General Observation - 66" RCP-PTL

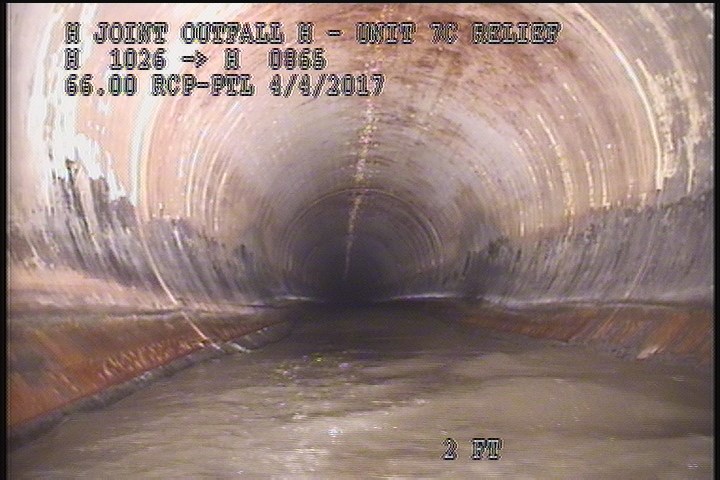

    2 ft. - General Observation - 66" RCP-PTL

  • General Observation - 66" RCP-PTL

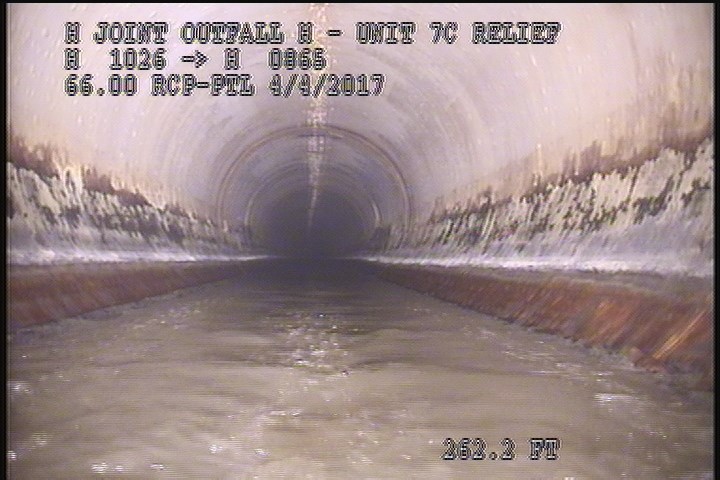

    262.2 ft. - General Observation - 66" RCP-PTL

  • General Observation - PTL LINERN SMALL BLISTERS

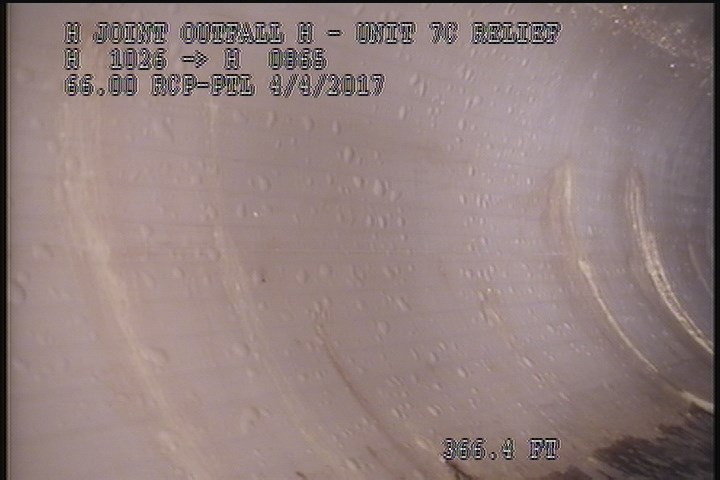

    366.4 ft. - General Observation - PTL LINERN SMALL BLISTERS

  • General Observation - 66' RCP-PTL

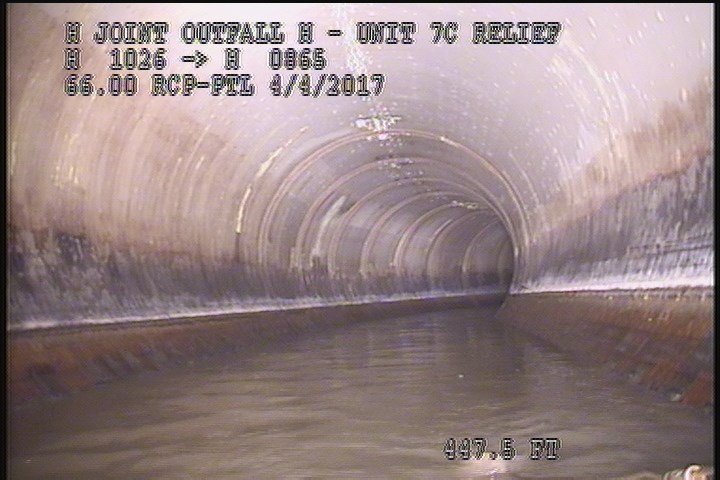

    447.5 ft. - General Observation - 66' RCP-PTL

All inspections of P22552Work order 0619014

Observations (9)

DistanceCodeObservation
0MWM—
0AMH4:25AM
447.5MGO66' RCP-PTL
560.2MGOConn. @ Mh, 9 O' Clock. Active
262.2MGO66" RCP-PTL
366.4MGOPTL LINERN SMALL BLISTERS
560.5AMH5:00AM
2MGO66" RCP-PTL
0MWL—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2017-04-04T01:34:24-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
