Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 3, 2017, 11:19 AM

  • H 1030_H 1029_432017_043109.mp4

Date
04/03/2017
W/O
0619014
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01006
PipeID
P22556
Time
4:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0481
Sewer Name
H JOINT OUTFALL H - UNIT 7C RELIEF
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
20170403MDM_JOINT_OUTFALL_H_UNIT_7C_RELIEF
Material
RCP-PTL
Shape
Circular
Height
66 in.
Upstream MH
H 1030
Downstream MH
H 1029
Dir. of Survey
Downstream
Length Surveyed
855.3 ft.
Total Length
855.3 ft.
Structural Index
4
Structural Quick
4400
Structural Rating
16
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole H 1030 to H 1029
MH: H 1030MH: H 1029downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:40AM0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area84.7 ft. MGO - General Observation - 66" RCP-PTL280.1 ft. SAM - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: NO - SEVERE AGG280.1 ft. SAM - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG-PEELED UP LINER341 ft. SAM - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES - SEVERE AGG359.9 ft. SAM - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG - PEELED UP LINER383.4 ft. MGO - General Observation - 66" RCP-PTL416.4 ft. SAM - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: NO - PEELED UP LINER855.3 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (6)

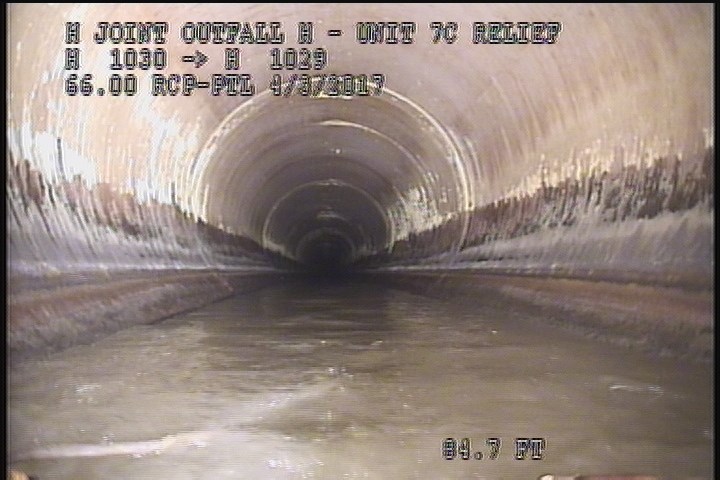

  • General Observation - 66" RCP-PTL

    84.7 ft. - General Observation - 66" RCP-PTL

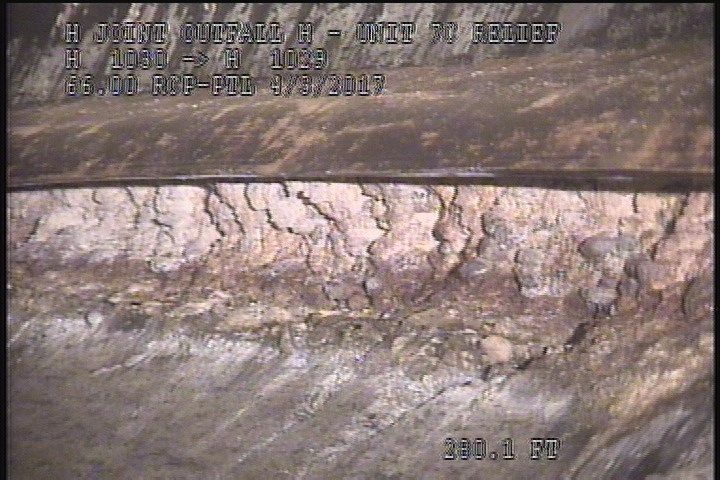

  • Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: NO - SEVERE AGG

    280.1 ft. - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: NO - SEVERE AGG

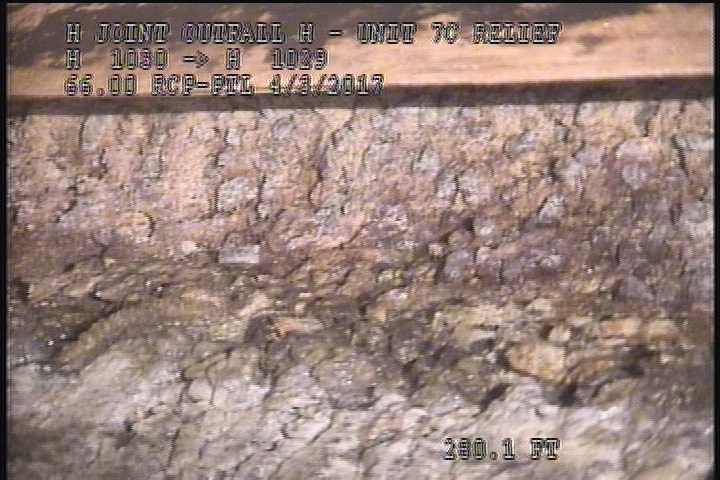

  • Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG-PEELED UP LINER

    280.1 ft. - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG-PEELED UP LINER

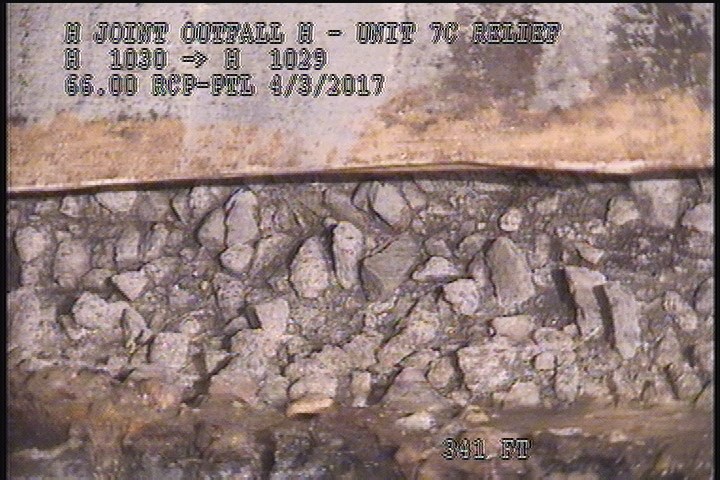

  • Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES - SEVERE AGG

    341 ft. - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: YES - SEVERE AGG

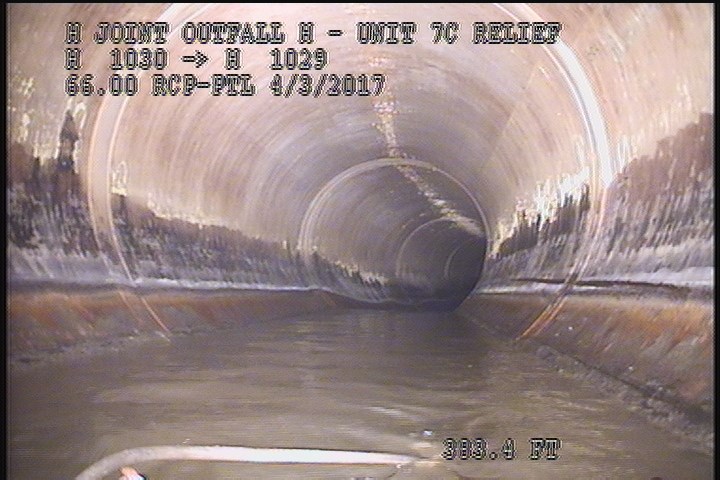

  • General Observation - 66" RCP-PTL

    383.4 ft. - General Observation - 66" RCP-PTL

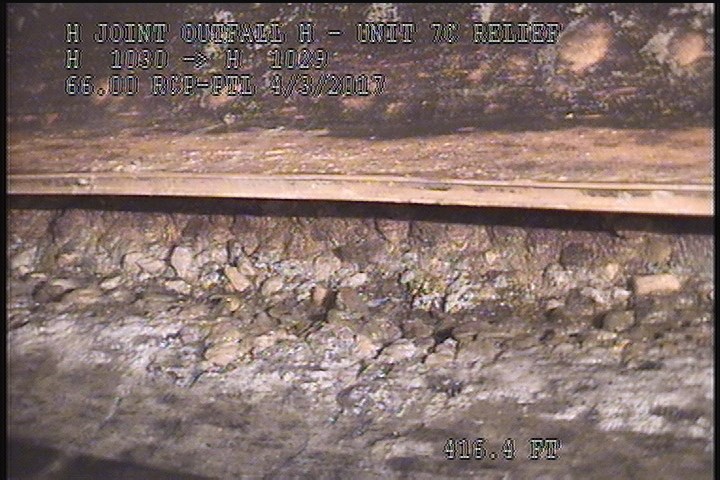

  • Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: NO - PEELED UP LINER

    416.4 ft. - Surface Aggregate Missing, at 05 o'clock, within 8 inches of joint: NO - PEELED UP LINER

All inspections of P22556Work order 0619014

Observations (11)

DistanceCodeObservation
383.4MGO66" RCP-PTL
0AMH4:40AM
359.9SAMSEVERE AGG - PEELED UP LINER
341SAMSEVERE AGG
0MWM—
84.7MGO66" RCP-PTL
0MWL—
416.4SAMPEELED UP LINER
855.3AMH5:20AM
280.1SAMSEVERE AGG
280.1SAMSEVERE AGG-PEELED UP LINER

Properties (6)

custom_field_three
SEVERE AGG MISSING-PEELED UP LINER
custom_field_two
3
customer
LACSD
datetime
2017-04-03T04:19:40-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
