Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 3, 2017, 08:41 AM

  • H 1031_H 1030_432017_025245.mp4

Date
04/03/2017
W/O
0619014
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01006
PipeID
P22557
Time
1:41 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0481
Sewer Name
H JOINT OUTFALL H - UNIT 7C RELIEF
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
20170403MDM_JOINT_OUTFALL_H_UNIT_7C_RELIEF
Material
RCP-PTL
Shape
Circular
Height
66 in.
Upstream MH
H 1031
Downstream MH
H 1030
Dir. of Survey
Downstream
Length Surveyed
820.1 ft.
Total Length
820.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 1031 to H 1030
MH: H 1031MH: H 1030downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:45AM0 ft. MWL - Water Level, 5 %of cross sectional area45.6 ft. MGO - General Observation - 66" RCP-PTL412.1 ft. MGO - General Observation - 66" RCP-PTL732.4 ft. MGP - General Photograph820.1 ft. AMH - Downstream Manhole, Survey Ends - 3:25AM

Observation photos (3)

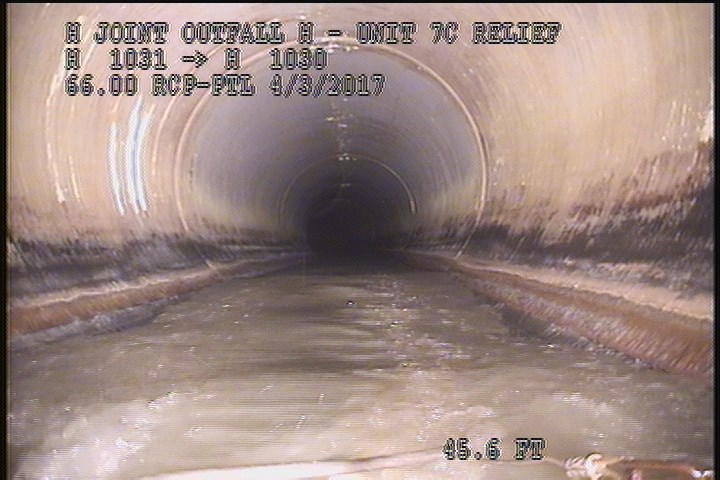

  • General Observation - 66" RCP-PTL

    45.6 ft. - General Observation - 66" RCP-PTL

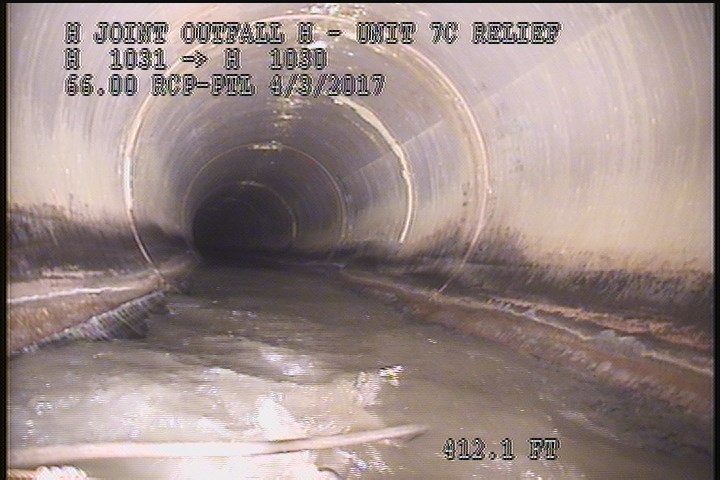

  • General Observation - 66" RCP-PTL

    412.1 ft. - General Observation - 66" RCP-PTL

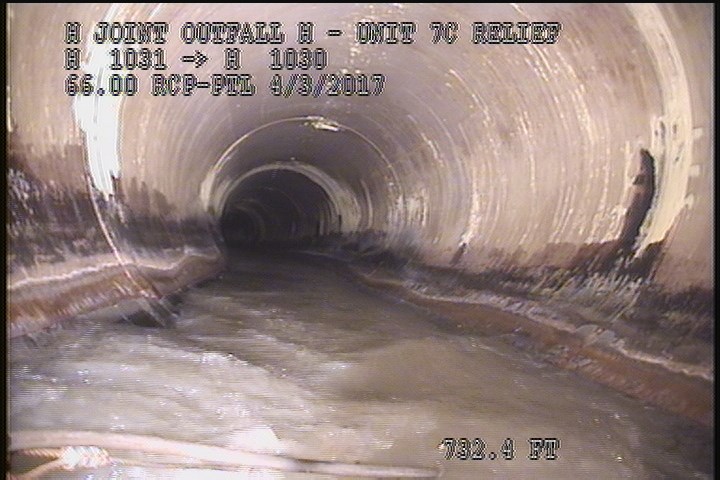

  • General Photograph

    732.4 ft. - General Photograph

All inspections of P22557Work order 0619014

Observations (7)

DistanceCodeObservation
0MWM—
0AMH2:45AM
45.6MGO66" RCP-PTL
412.1MGO66" RCP-PTL
732.4MGP—
820.1AMH3:25AM
0MWL—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2017-04-03T01:41:42-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
