Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 3, 2017, 08:29 AM

  • H 1032_H 1031_432017_015503.mp4

Date
04/03/2017
W/O
0619014
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01006
PipeID
P22558
Time
1:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0481
Sewer Name
H JOINT OUTFALL H - UNIT 7C RELIEF
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
20170403MDM_JOINT_OUTFALL_H_UNIT_7C_RELIEF
Material
RCP-PTL
Shape
Circular
Height
66 in.
Upstream MH
H 1032
Downstream MH
H 1031
Dir. of Survey
Downstream
Length Surveyed
596.5 ft.
Total Length
596.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 1032 to H 1031
MH: H 1032MH: H 1031downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM59.3 ft. MGP - General Photograph - PTL LINER59.3 ft. MGO - General Observation - 66" RCP-PTL283.7 ft. MGO - General Observation - 66"RCP-PTL367.5 ft. MGO - General Observation - THIN WHITE SUBSTANCE ON PIPE596.5 ft. AMH - Downstream Manhole, Survey Ends - 2:25AM

Observation photos (4)

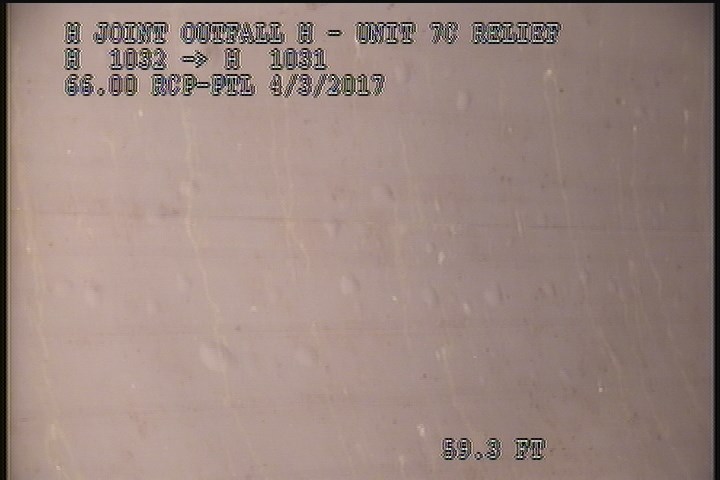

  • General Photograph - PTL LINER

    59.3 ft. - General Photograph - PTL LINER

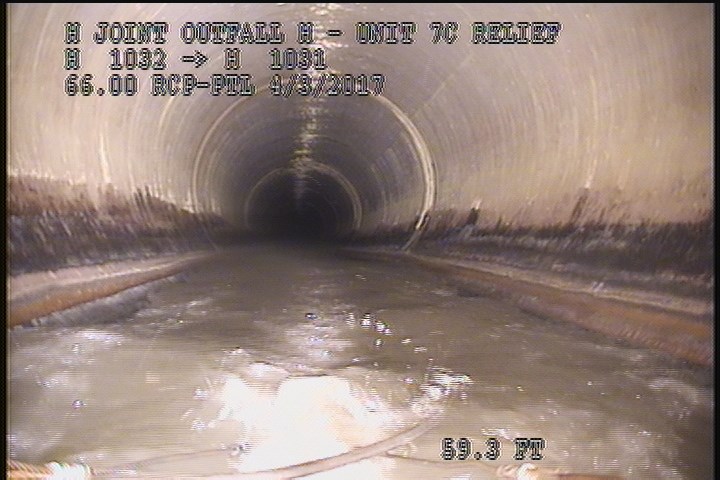

  • General Observation - 66" RCP-PTL

    59.3 ft. - General Observation - 66" RCP-PTL

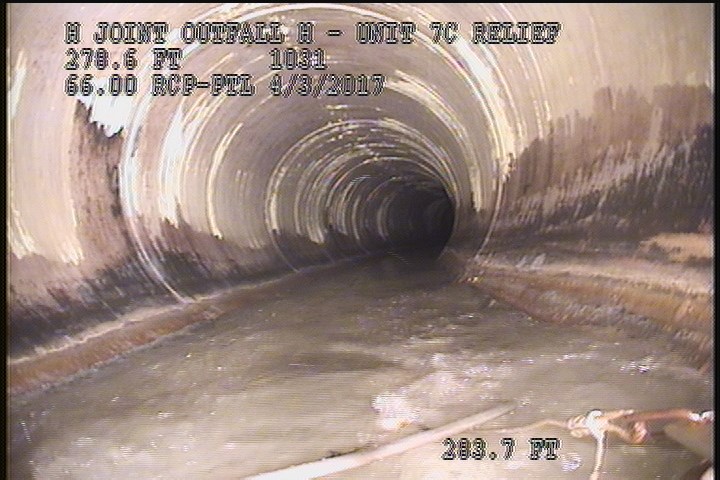

  • General Observation - 66"RCP-PTL

    283.7 ft. - General Observation - 66"RCP-PTL

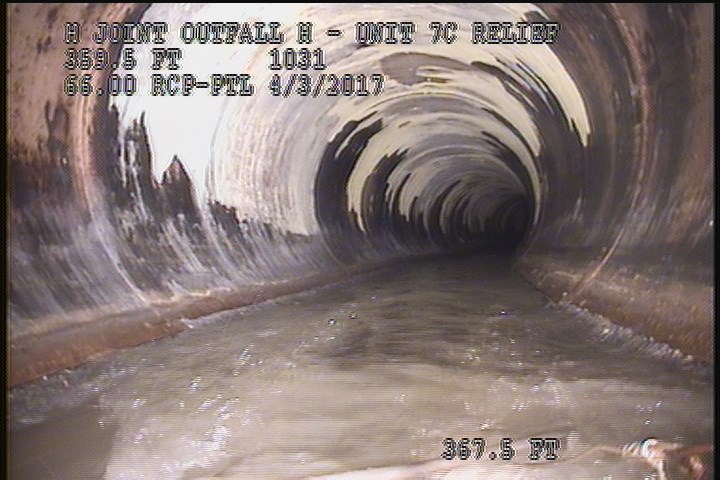

  • General Observation - THIN WHITE SUBSTANCE ON PIPE

    367.5 ft. - General Observation - THIN WHITE SUBSTANCE ON PIPE

All inspections of P22558Work order 0619014

Observations (8)

DistanceCodeObservation
367.5MGOTHIN WHITE SUBSTANCE ON PIPE
596.5AMH2:25AM
283.7MGO66"RCP-PTL
0MWM—
59.3MGPPTL LINER
0MWL—
0AMH1:45AM
59.3MGO66" RCP-PTL

Properties (6)

custom_field_two
4
customer
LACSD
datetime
2017-04-03T01:29:50-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
year_laid
20000202
