Wastewater/Activity/PacpInspection/1.0Mar 31, 2017, 03:45 PM
19 0030_19 0029_3312017_101021.mp4
- Date
- 03/31/2017
- W/O
- 0602260
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00727
- PipeID
- P15060
- Time
- 8:45 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7373
- Sewer Name
- 19 PALO VERDE TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20170331DF_PALO_VERDE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 23.15999984741211 in.
- Upstream MH
- 19 0030
- Downstream MH
- 19 0029
- Dir. of Survey
- Downstream
- Length Surveyed
- 373 ft.
- Total Length
- 373 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4231
- O&M Rating
- 13
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (5)

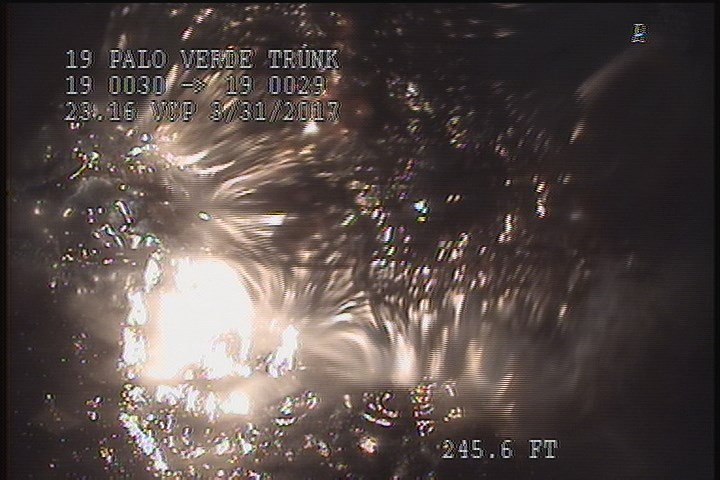

245.6 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

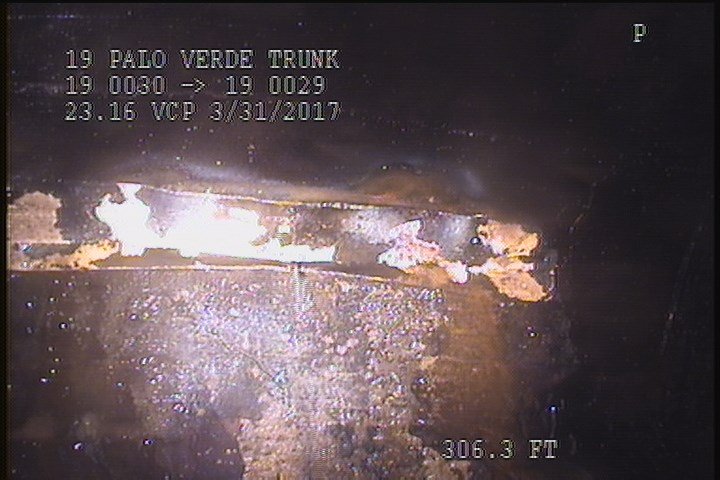

306.3 ft. - Lining Failure Other, at 10 o'clock, within 8 inches of joint: YES - TAPE PEELING OFF

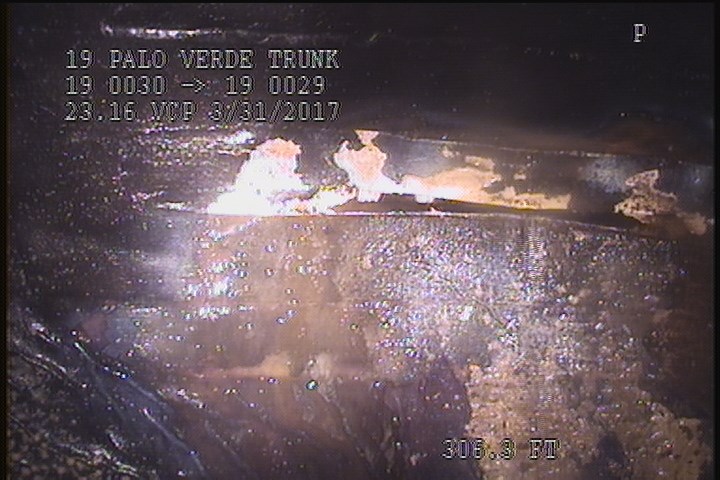

306.3 ft. - Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES

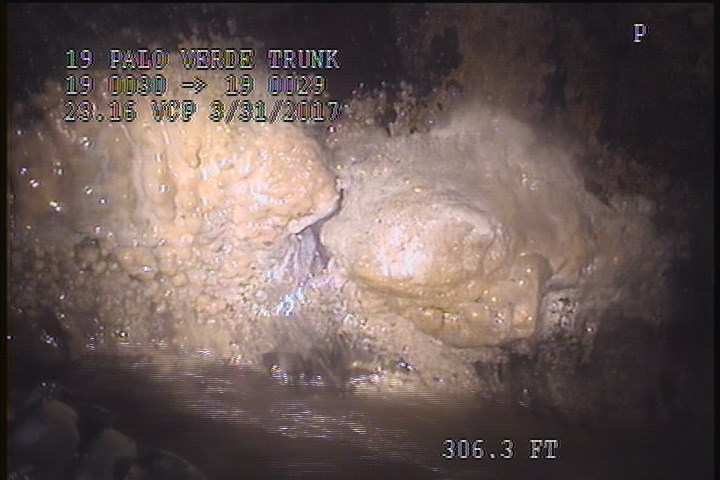

306.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: YES

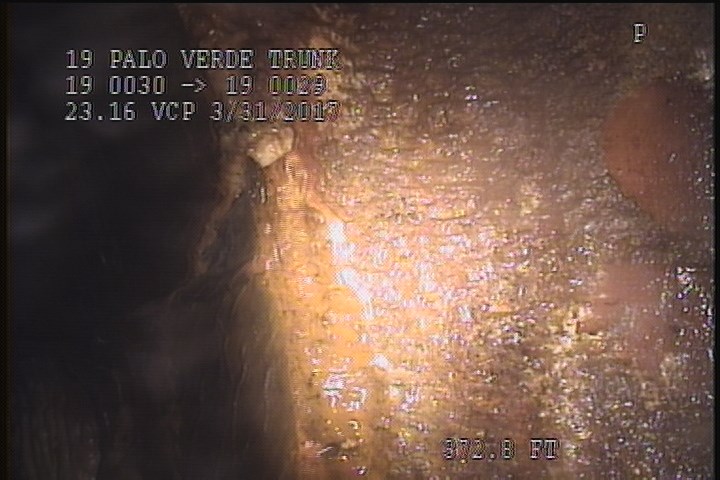

372 ft. - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 8:59 AM |
| 306.3 | LFZ | TAPE PEELING OFF |
| 306.3 | IR | — |
| 373 | AMH | 10:42 AM |
| 306.3 | DAGS | — |
| 245.6 | LFPH | POSSIBLE |
| 372 | IR | — |
| 0 | MWL | — |
| 245.6 | ID | — |
| 0 | MWM | — |
Properties (6)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-31T08:45:20-07:00
- documentation
- FRANKLIN, MIRANDA, IGNACIO, BRAR, SHADLER
- is_lateral_inspection
- false
- lining
- CIPP
