Wastewater/Activity/PacpInspection/1.0May 12, 2017, 10:51 AM
B 0660_B 0659 _051217_035249.mp4
- Date
- 05/12/2017
- W/O
- 635605
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00109
- PipeID
- P20281
- Time
- 3:51 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4525
- Sewer Name
- B JOINT OUTFALL B - UNIT 8F
- City
- ARCADIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_635605_TV15136_MAY2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 0660
- Downstream MH
- B 0659
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

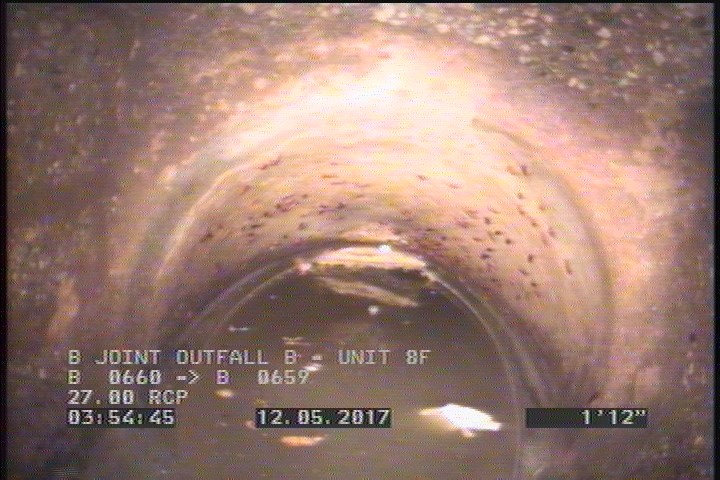

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

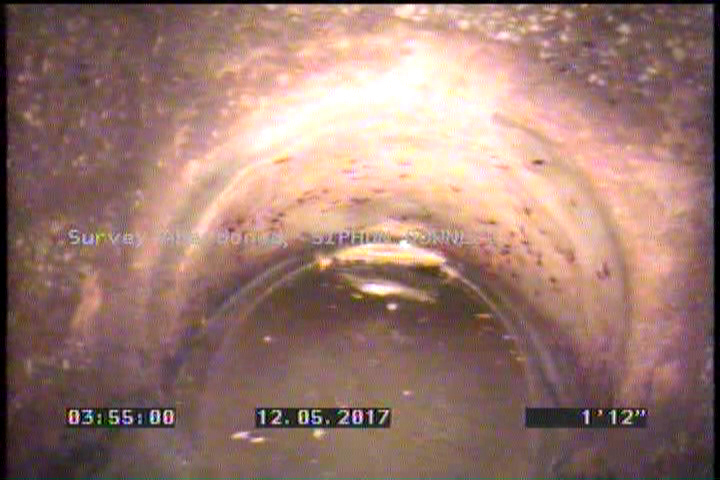

2 ft. - Survey Abandoned - SIPHON DOWNLEG
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0660 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 2 | MSA | SIPHON DOWNLEG |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC340739
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-12T03:51:45-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
