Wastewater/Activity/PacpInspection/1.0May 26, 2017, 08:30 AM
05 2266_05 2265 _20170526_014500.mp4
- Date
- 05/26/2017
- W/O
- 635497
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00546
- PipeID
- P07393
- Time
- 1:30 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4271
- Sewer Name
- 05 104TH STREET TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_635497_TV05028_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2265
- Downstream MH
- 05 2266
- Dir. of Survey
- Upstream
- Length Surveyed
- 269.7 ft.
- Total Length
- 269.7 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 3125
- O&M Rating
- 15
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

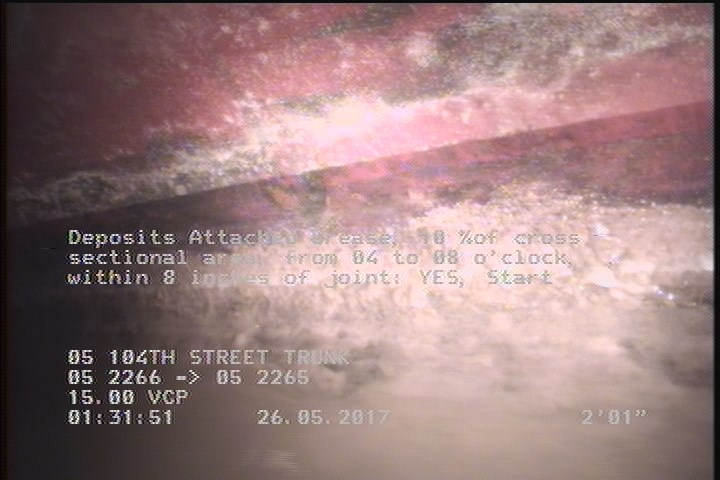

2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

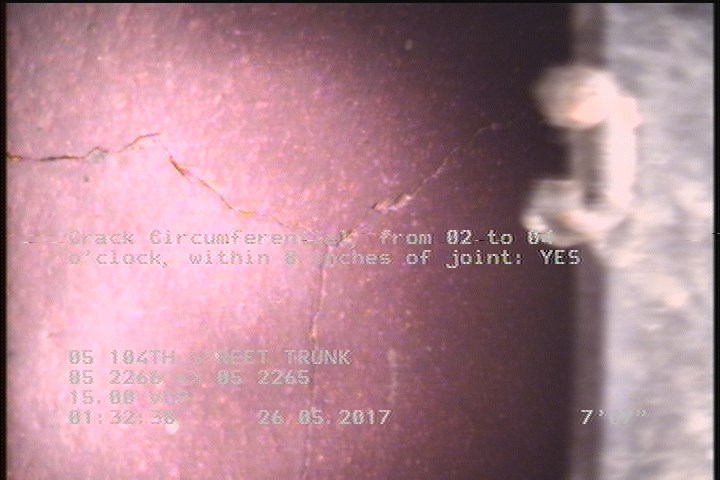

7.6 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

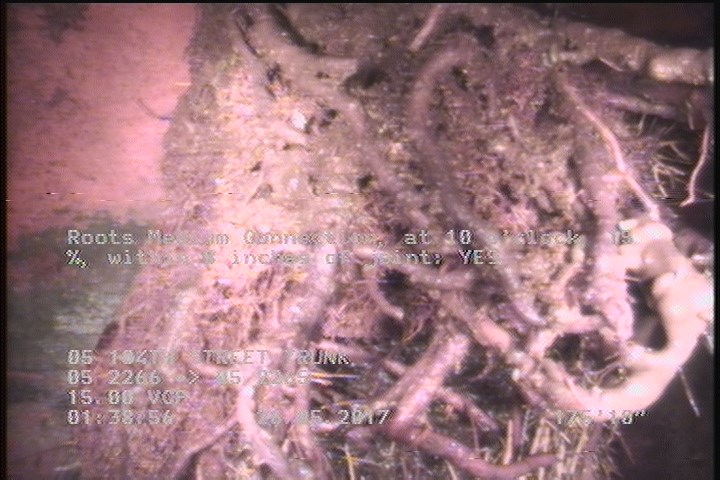

175.8 ft. - Roots Medium Connection, at 10 o'clock, 15 %, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 269.7 | AMH | 05 2266 |
| 125.6 | TBC | — |
| 0 | AMH | 05 2265 |
| 76.1 | TBC | — |
| 269.6 | MGO | CONNECTION AT MH 3 OCLOCK ACTIVE |
| 0 | MWM | — |
| 39 | TBC | — |
| 0 | MWL | — |
| 175.8 | RMC | — |
| 175.7 | TBA | — |
| 7.6 | CC | — |
| 268.4 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK ACTIVE |
| 2.1 | DAGS | — |
| 0 | VC | — |
| 269.6 | VC | — |
| 221.7 | TBC | — |
Properties (6)
- additional_info
- SC345271
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-26T01:30:56-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
