  • 05 2265_05 2264A _20170526_003333.mp4

Date
05/25/2017
W/O
635497
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00546
PipeID
P07391
Time
11:57 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4271
Sewer Name
05 104TH STREET TRUNK
City
LOS ANGELES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
09
Purpose
Routine Assessment
Project
WO_635497_TV05028_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2265
Downstream MH
05 2264A
Dir. of Survey
Downstream
Length Surveyed
327.5 ft.
Total Length
327.5 ft.
Structural Index
3
Structural Quick
4122
Structural Rating
8
O&M Index
2
O&M Quick
2611
O&M Rating
13
Overall Index
2
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 05 2265 to 05 2264A
MH: 05 2265MH: 05 2264Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 22650 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.5 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES10.5 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"72.8 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"127.3 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"176.7 ft. B - Broken, from 12 to 02 o'clock, within 8 inches of joint: YES - WITH REPAIR176.7 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"222.7 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"266.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES268.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"305.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"324.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish327.5 ft. MGO - General Observation - ABANDONED MH327.5 ft. AMH - Downstream Manhole, Survey Ends - 05 2264A ABANDONED

Observation photos (4)

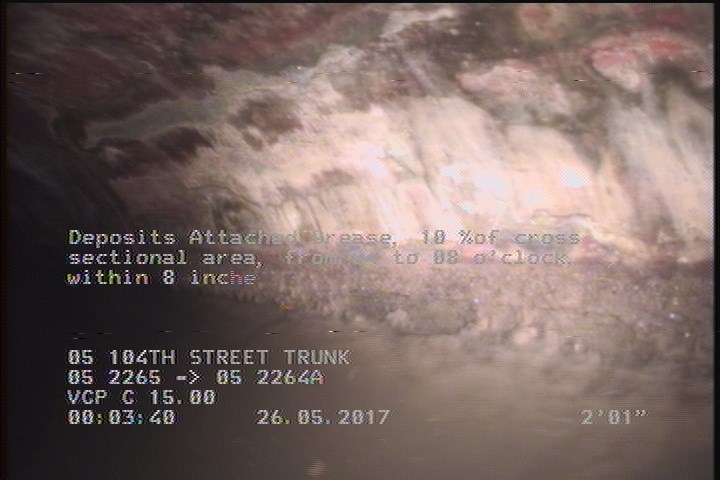

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

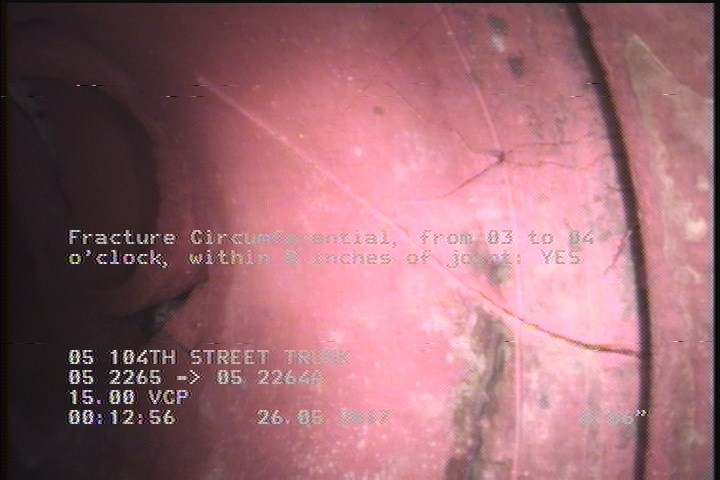

  • Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES

    8.5 ft. - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES

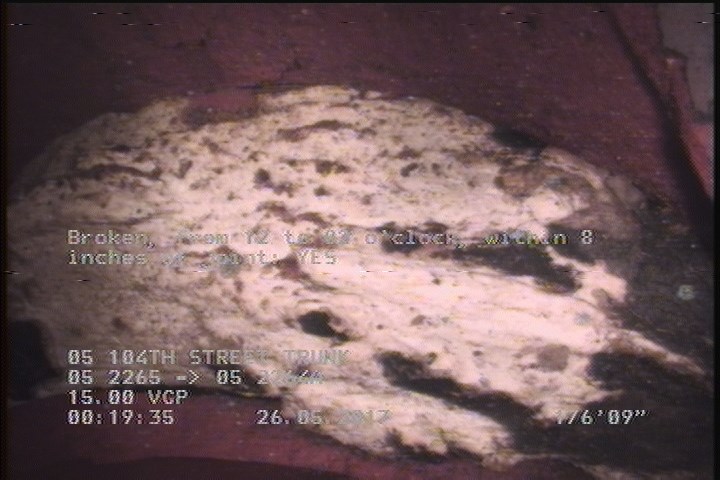

  • Broken, from 12 to 02 o'clock, within 8 inches of joint: YES - WITH REPAIR

    176.7 ft. - Broken, from 12 to 02 o'clock, within 8 inches of joint: YES - WITH REPAIR

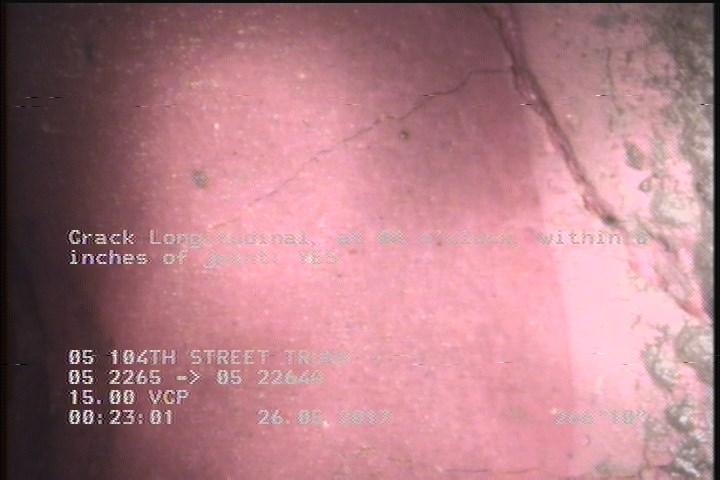

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    266.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P07391Work order 635497

Observations (19)

DistanceCodeObservation
0AMH05 2265
72.8TBC—
0VC—
268.5TB—
222.7TBC—
176.7BWITH REPAIR
327.5MGOABANDONED MH
305.9TB—
8.5FC—
10.5TBC—
266.8CL—
0MWM—
0MGOCONNECTION AT MH 9 OCLOCK ACTIVE
324.4DAGS—
2.1DAGS—
327.5AMH05 2264A ABANDONED
127.3TBC—
176.7TBC—
0MWL—

Properties (6)

additional_info
SC345271
custom_field_two
3
customer
LACSD
datetime
2017-05-25T23:57:03-07:00
documentation
PRO PIPE
is_lateral_inspection
false
