Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 26, 2017, 08:01 AM

  • 05 2263_05 2262_20170526_011804.mp4

Date
05/26/2017
W/O
635497
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00546
PipeID
P07389
Time
1:01 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4271
Sewer Name
05 104TH STREET TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
09
Purpose
Routine Assessment
Project
WO_635497_TV05028_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2263
Downstream MH
05 2262
Dir. of Survey
Downstream
Length Surveyed
322.3 ft.
Total Length
322.3 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2A11
O&M Rating
21
Overall Index
2
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 05 2263 to 05 2262
MH: 05 2263MH: 05 2262downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 22630 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. VC - Vermin Cockroach2.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start30.4 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES40.3 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"85.3 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"130.5 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"171.5 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"208.1 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"232.7 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"260.1 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"304.7 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"320.4 ft. TBC - Tap Break-In Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"321.6 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish322.3 ft. AMH - Downstream Manhole, Survey Ends - 05 2262

Observation photos (2)

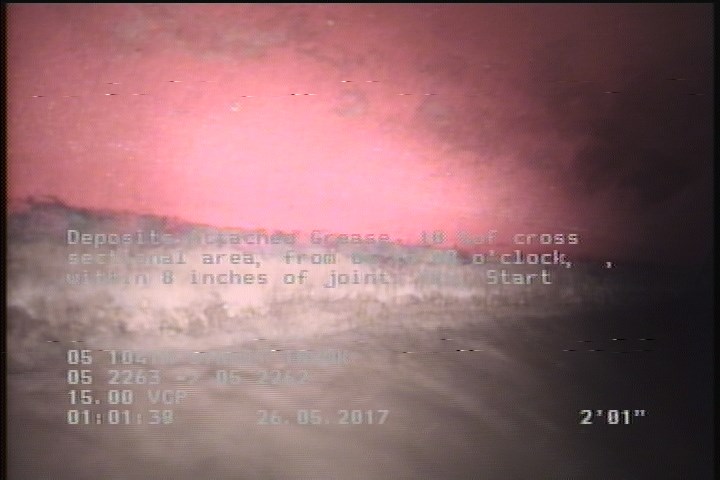

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

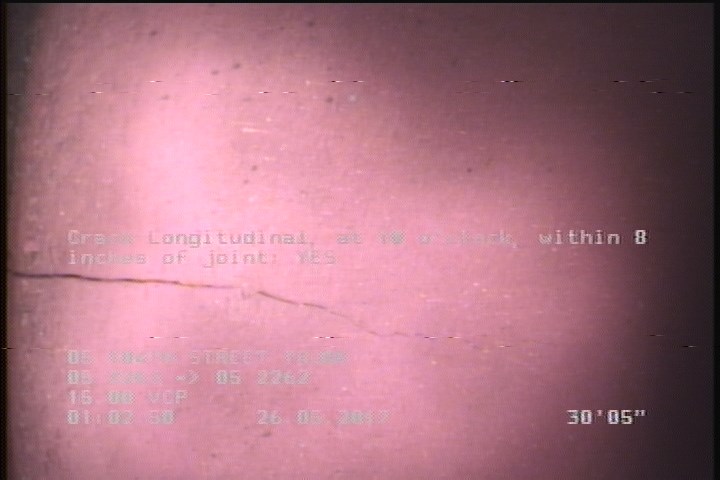

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    30.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

All inspections of P07389Work order 635497

Observations (17)

DistanceCodeObservation
30.4CL—
232.7TBC—
130.5TBC—
322.3AMH05 2262
304.7TBC—
85.3TBC—
171.5TBC—
321.6DAGS—
0AMH05 2263
0MWL—
2.1DAGS—
0MWM—
0VC—
320.4TBC—
260.1TBC—
208.1TBC—
40.3TBC—

Properties (6)

additional_info
SC345271
custom_field_two
4
customer
LACSD
datetime
2017-05-26T01:01:26-07:00
documentation
PRO PIPE
is_lateral_inspection
false
