Wastewater/Activity/PacpInspection/1.0May 26, 2017, 09:00 AM
05 2262_05 0300_20170526_020858.mp4
- Date
- 05/26/2017
- W/O
- 635497
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00546
- PipeID
- P07388
- Time
- 2:00 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4271
- Sewer Name
- 05 104TH STREET TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_635497_TV05028_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2262
- Downstream MH
- 05 0300
- Dir. of Survey
- Downstream
- Length Surveyed
- 45.4 ft.
- Total Length
- 45.4 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 3200
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)
2.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

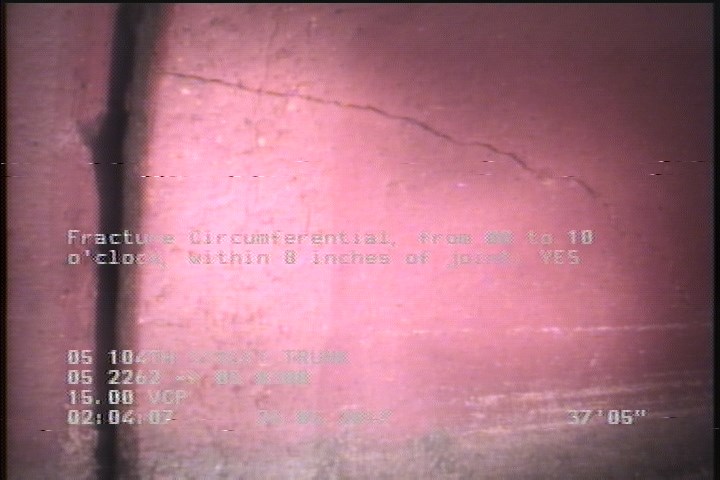

37.4 ft. - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

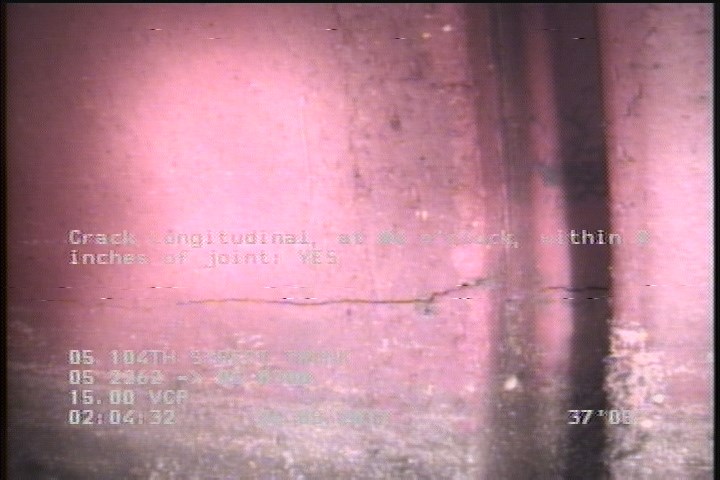

37.4 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

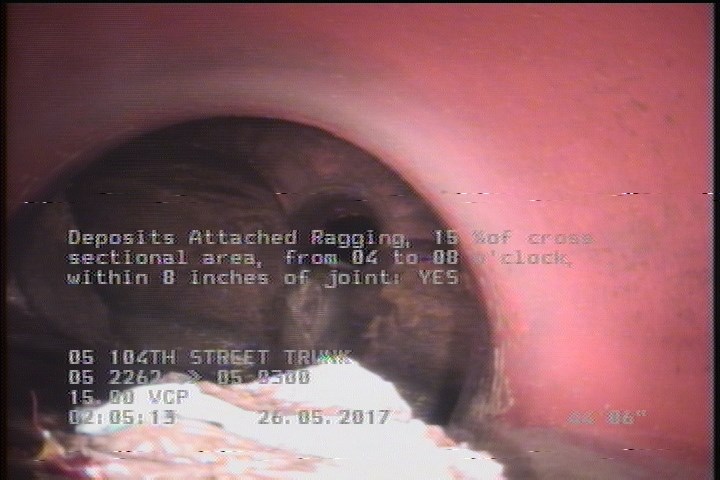

44.5 ft. - Deposits Attached Ragging, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | INVERT DANAGE AT MH |
| 2.1 | DAGS | — |
| 0 | MWL | — |
| 37.4 | FC | — |
| 0 | AMH | 05 2262 |
| 37.4 | CL | — |
| 0 | MWM | — |
| 45.4 | AMH | 05 0300 |
| 44.5 | DAGS | — |
| 45.4 | MGO | CONNECTION AT MH 9 OCLOCK ACTIVE |
| 44.5 | DAR | — |
Properties (6)
- additional_info
- SC345271
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-26T02:00:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
