Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 26, 2017, 07:35 AM

  • 05 2264A_05 2264_20170526_004404.mp4

Date
05/26/2017
W/O
635497
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00546
PipeID
P07392
Time
12:35 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4271
Sewer Name
05 104TH STREET TRUNK
City
LOS ANGELES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
09
Purpose
V
Project
WO_635497_TV05028_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2264A
Downstream MH
05 2264
Dir. of Survey
Downstream
Length Surveyed
52.8 ft.
Total Length
52.8 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 2264A to 05 2264
MH: 05 2264AMH: 05 2264downstream0 ft. MGO - General Observation - ABANDONED MH0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 2264A ABANDONED0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start18.5 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES19.9 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"31 ft. RPL - Repair Localized Liner, within 8 inches of joint: YES, Start - LINER40.7 ft. RPL - Repair Localized Liner, within 8 inches of joint: YES, Finish - LINER49.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish52.8 ft. MGO - General Observation - MH ABANDONED52.8 ft. AMH - Downstream Manhole, Survey Ends - 05 2264 ABANDONED

Observation photos (3)

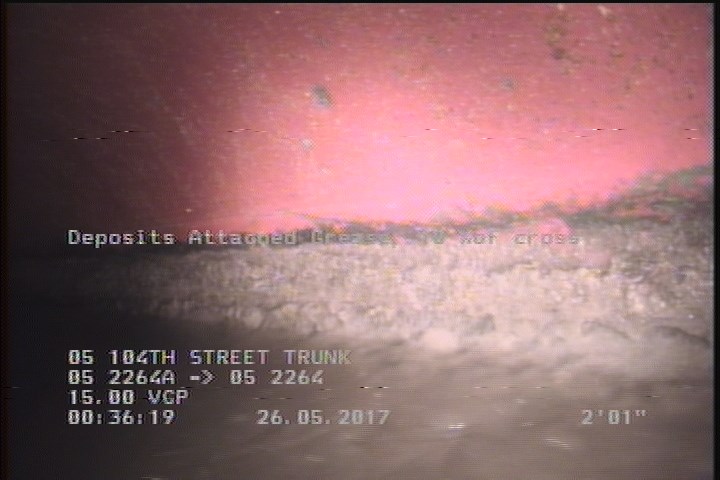

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

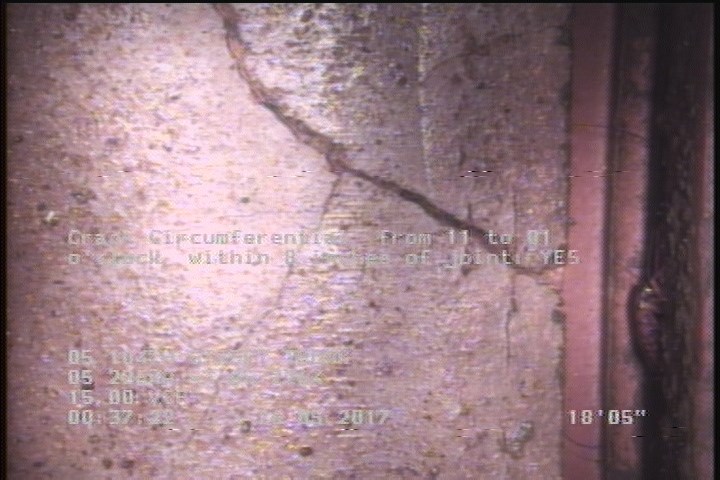

  • Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

    18.5 ft. - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

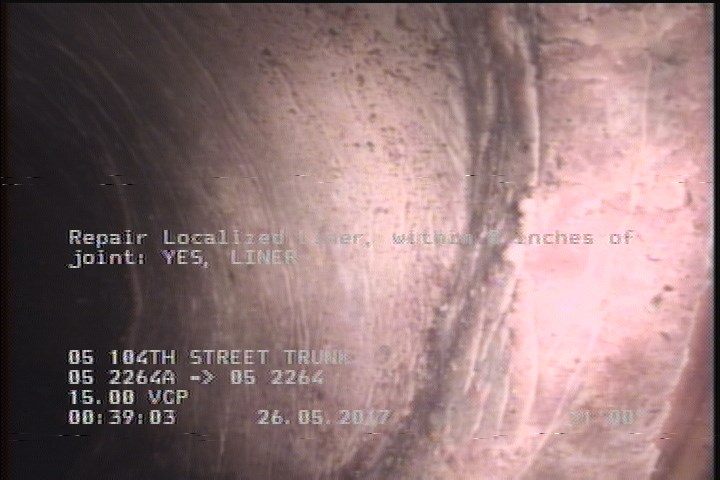

  • Repair Localized Liner, within 8 inches of joint: YES, Start - LINER

    31 ft. - Repair Localized Liner, within 8 inches of joint: YES, Start - LINER

All inspections of P07392Work order 635497

Observations (12)

DistanceCodeObservation
0MGOABANDONED MH
2.1DAGS—
0MWM—
19.9TBC—
0AMH05 2264A ABANDONED
52.8MGOMH ABANDONED
18.5CC—
49.8DAGS—
0MWL—
52.8AMH05 2264 ABANDONED
40.7RPLLINER
31RPLLINER

Properties (6)

additional_info
SC345271
custom_field_two
4
customer
LACSD
datetime
2017-05-26T00:35:39-07:00
documentation
PRO PIPE
is_lateral_inspection
false
