Wastewater/Activity/PacpInspection/1.0Jul 31, 2017, 08:08 AM
Section#2_29 0483_29 0482__7312017__G6785.mp4
- Date
- 07/31/2017
- W/O
- 0642334
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00789
- PipeID
- P24529
- Time
- 1:08 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6785
- Sewer Name
- 29 CHERRY AVENUE TRUNK
- City
- SIGNAL HILL
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170731MDM_CHERRY_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0483
- Downstream MH
- 29 0482
- Dir. of Survey
- Downstream
- Length Surveyed
- 175.1 ft.
- Total Length
- 175.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

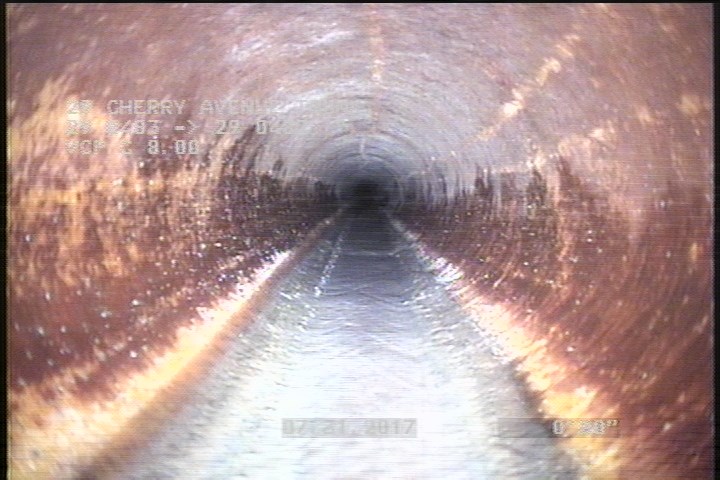

2 ft. - General Observation - PIPE IS LINED

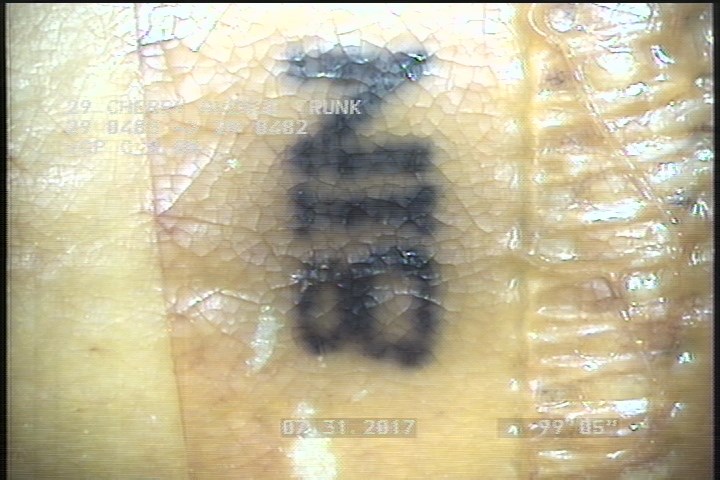

99.4 ft. - General Photograph

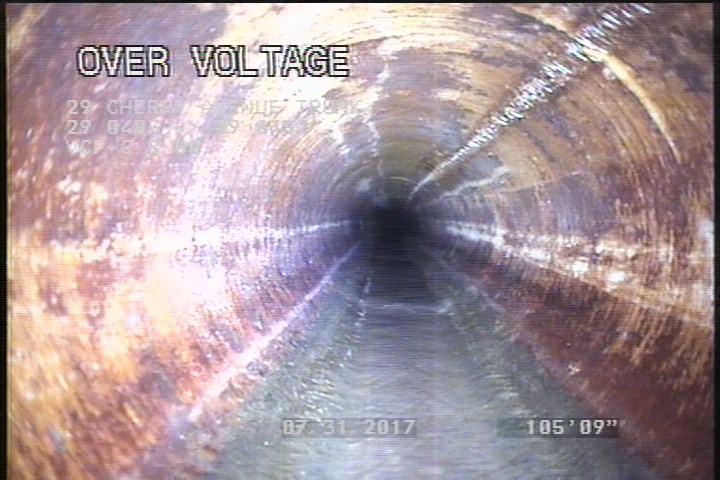

105.8 ft. - General Observation - LINER
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | MGO | PIPE IS LINED |
| 0 | MWL | — |
| 175.1 | AMH | 3:30AM |
| 105.8 | MGO | LINER |
| 0 | AMH | 3:15AM |
| 0.1 | MGO | MH CONN ACTIVE 9:00 |
| 99.4 | MGP | — |
Properties (6)
- custom_field_three
- LINED PIPE IN GOOD COND.
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-31T01:08:34-07:00
- documentation
- MARTIN,MANANES,OLIVER 111
- is_lateral_inspection
- false
