Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2017, 08:50 PM

  • A 0534_05 2079_7272017_141805.mp4

Date
07/27/2017
W/O
0635420
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00315
PipeID
P07771
Time
1:50 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7471
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20170727DF_JOA_1A_DISTRICT_5_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Upstream MH
05 2079
Downstream MH
A 0534
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 05 2079 to A 0534
MH: 05 2079MH: A 0534upstream0 ft. MSA - Survey Abandoned - STAGNANT WATER1.6 ft. MGP - General Photograph1.7 ft. MGP - General Photograph1.8 ft. MGP - General Photograph1.9 ft. MWL - Water Level, 25 %of cross sectional area1.9 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. AMH - Upstream Manhole, Survey Begins - 2:00 PM

Observation photos (3)

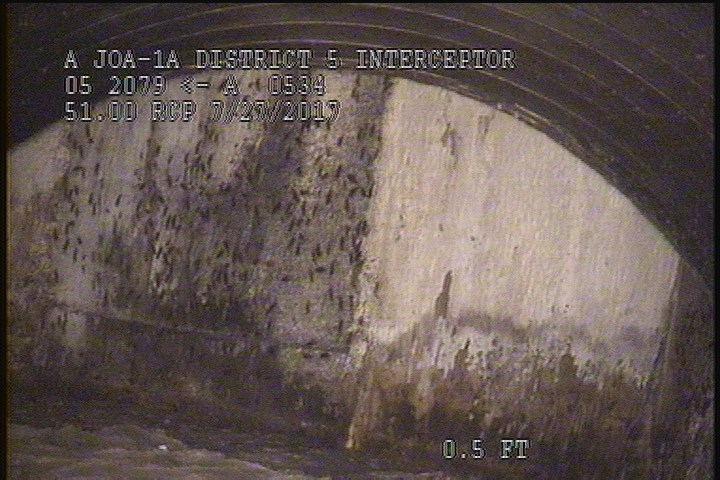

  • General Photograph

    0.2 ft. - General Photograph

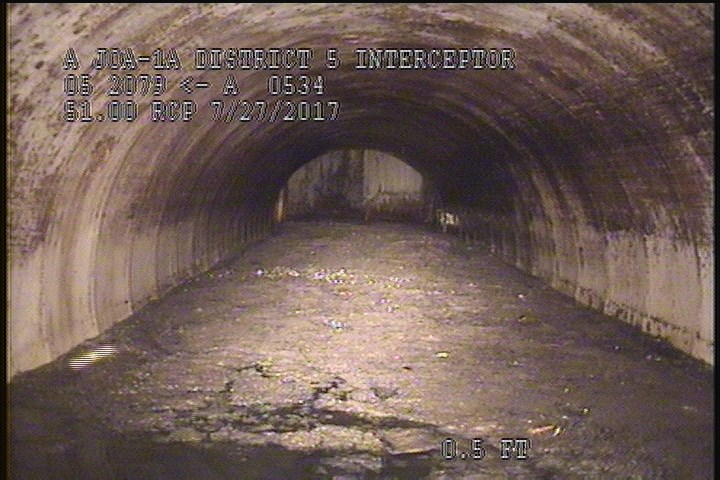

  • General Photograph

    0.3 ft. - General Photograph

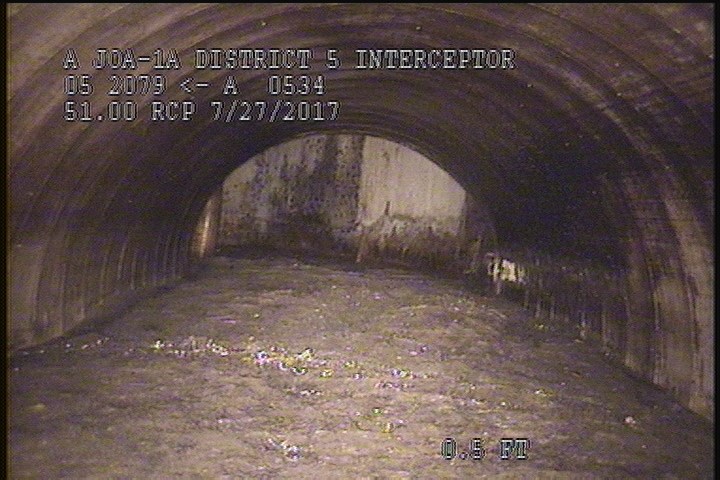

  • General Photograph

    0.4 ft. - General Photograph

All inspections of P07771Work order 0635420

Observations (7)

DistanceCodeObservation
0.4MGP—
0.1MWL—
0.1MWM—
0.3MGP—
0.2MGP—
0AMH2:00 PM
2MSASTAGNANT WATER

Properties (7)

custom_field_two
3
customer
LACSD
datetime
2017-07-27T13:50:37-07:00
documentation
FRANKLIN, BRAR
is_lateral_inspection
false
lining
PVC LINER
year_laid
19981218
