Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 11:32 AM

  • 01 0165_01 0164_06092016_043244.mp4

Date
09/06/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01191
Time
4:32 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3579
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0165
Downstream MH
01 0164
Dir. of Survey
Downstream
Length Surveyed
326 ft.
Total Length
326.1 ft.
Structural Index
3
Structural Quick
3G21
Structural Rating
122
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
122
Pipe schematic from manhole 01 0165 to 01 0164
MH: 01 0165MH: 01 0164downstream0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01650 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK44.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"47 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"70.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"75.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"77.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"97.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"112.9 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES117.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"120.9 ft. CM - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Start130.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"148 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"196.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"221.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"224.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"245.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"247.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"267.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"270.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"295.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"299.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"322.3 ft. CM - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Finish326.1 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH326.1 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK326.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0164

Observation photos (2)

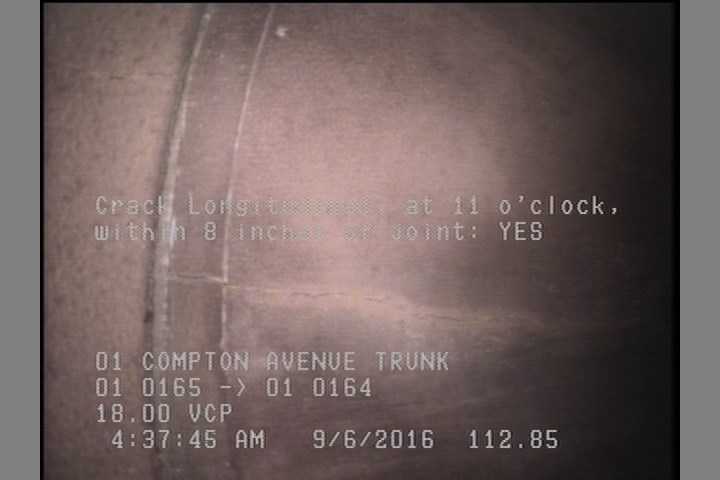

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    112.9 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

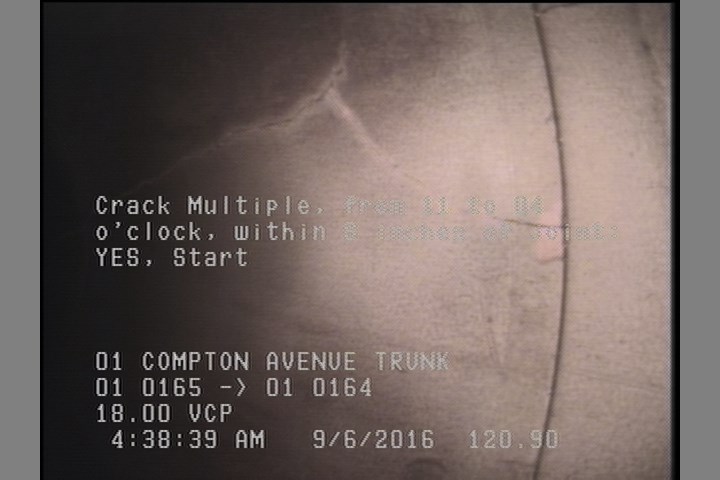

  • Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Start

    120.9 ft. - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01191Work order 585995

Observations (32)

DistanceCodeObservation
299.2TFC—
326.1MGOCAPPED LATERAL 9 O'CLOCK @ MH
0MGOLATERAL AT MH 9 OCLOCK
148TFC—
0MWL—
326.1MGOLATERAL AT MH 3 OCLOCK
44.1TFC—
120.9CM—
77.2TF—
295.6TFC—
0MWM—
117.9TF—
47TF—
159.3TF—
247.4TF—
326.1AMH01 0164
0AMH01 0165
224.6TFC—
322.3CM—
75.7TFC—
267.8TFC—
112.9CL—
221.8TF—
130.9TF—
97.2TF—
70.8TFC—
196.6TFC—
245.2TF—
0MGOLATERAL AT MH 3 OCLOCK
193.9TFC—
120.8TF—
270.8TFC—
