Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 09:57 AM

  • 01 0168_01 0167_06092016_025803.mp4

Date
09/06/2016
W/O
585995
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00202
PipeID
P01194
Time
2:57 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3579
Sewer Name
01 COMPTON AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_585995_TV01012_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0168
Downstream MH
01 0167
Dir. of Survey
Downstream
Length Surveyed
291.6 ft.
Total Length
291.7 ft.
Structural Index
2
Structural Quick
2900
Structural Rating
18
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 01 0168 to 01 0167
MH: 01 0168MH: 01 0167downstream0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 016856.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"59 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"81.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"123.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start130.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"130.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"133.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"148.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"163 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish197 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"215.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"236.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"258.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"286.9 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES291.7 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK291.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0167

Observation photos (3)

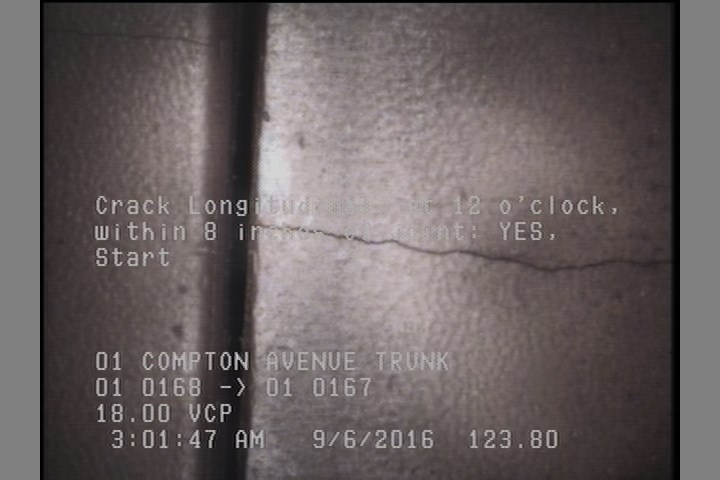

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    123.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

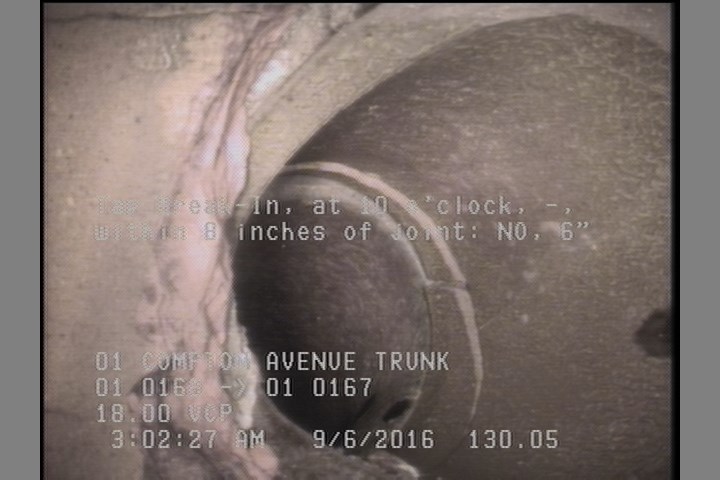

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    130.1 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

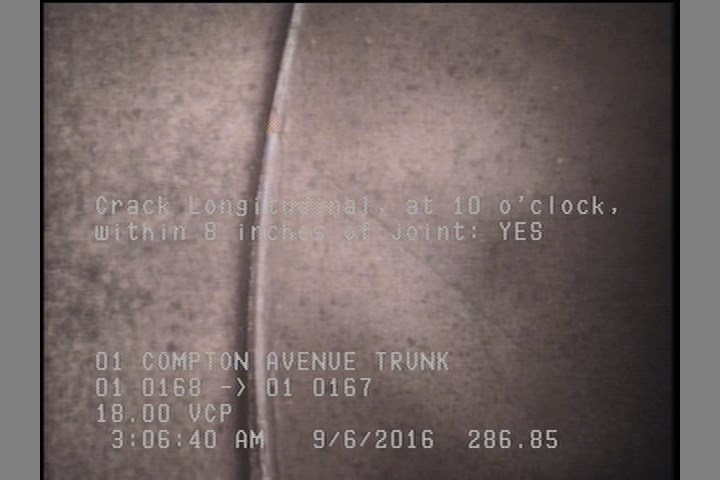

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    286.9 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

All inspections of P01194Work order 585995

Observations (20)

DistanceCodeObservation
286.9CL—
236.2TFC—
163CL—
81.7TFC—
291.7MGOLATERAL AT MH 9 OCLOCK
56.1TFC—
291.7AMH01 0167
215.4TF—
197TF—
123.8CL—
130.1TF—
130.1TB—
0MGOLATERAL AT MH 9 OCLOCK
148.9TFC—
59TF—
0MWM—
258.4TF—
0MWL—
133.4TF—
0AMH01 0168

Properties (6)

additional_info
SC306169
custom_field_two
4
customer
LACSD
datetime
2016-09-06T02:57:18-07:00
documentation
PROPIPE
is_lateral_inspection
false
