Wastewater/Activity/PacpInspection/1.0Aug 15, 2016, 08:55 AM
B 1077_B 1076 _08152016_021214.mp4
- Date
- 08/15/2016
- W/O
- 585984
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00923
- PipeID
- P23043
- Time
- 1:55 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3682
- Sewer Name
- B JOINT OUTFALL B - UNIT 1C REPLACEMENT
- City
- MONTEBELLO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_585984_TV02129_AUG2016
- Sewer Type
- Gravity
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 72 in.
- Width
- 72 in.
- Upstream MH
- B 1077
- Downstream MH
- B 1076
- Dir. of Survey
- Downstream
- Length Surveyed
- 261.3 ft.
- Total Length
- 261.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

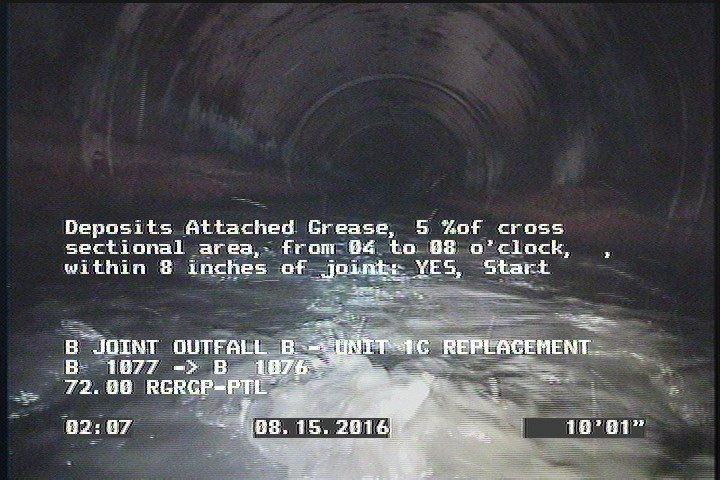

10.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 261.3 | AMH | B 1076 |
| 0 | AMH | B 1077 |
| 0 | MWL | — |
| 10.1 | DAGS | — |
| 0 | MWM | — |
| 251.2 | DAGS | — |
Properties (6)
- additional_info
- SC306012
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-15T01:55:37-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
