Wastewater/Activity/PacpInspection/1.0May 9, 2017, 05:40 PM
H 0795_H 0794_592017_105514.mp4
- Date
- 05/09/2017
- W/O
- 0630308
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00942
- PipeID
- P11203
- Time
- 10:40 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7402
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20170509DF_JOINT_OUTFALL_H_UNIT_9C
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- H 0794
- Downstream MH
- H 0795
- Dir. of Survey
- Upstream
- Length Surveyed
- 27.7 ft.
- Total Length
- 27.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 4
- O&M Quick
- 5141
- O&M Rating
- 11
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

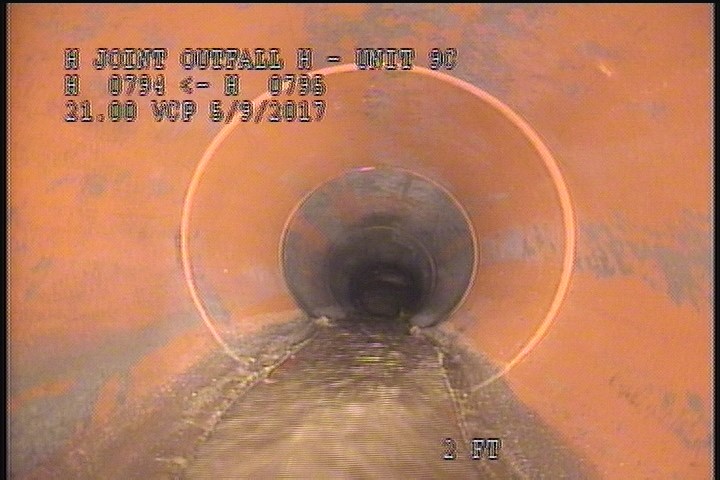

2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

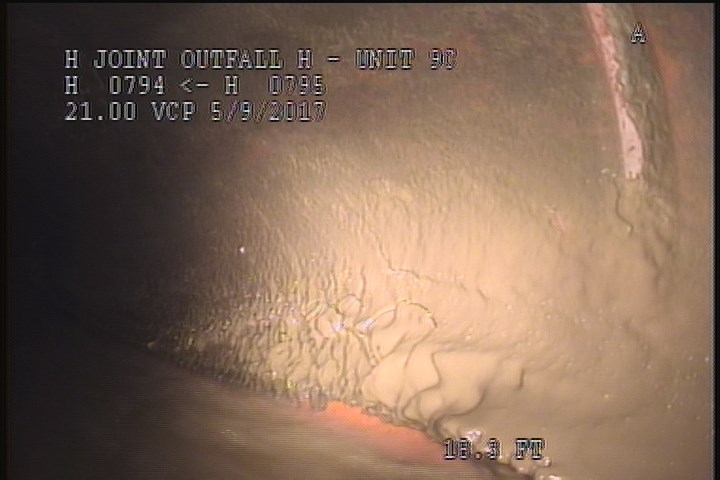

18.3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

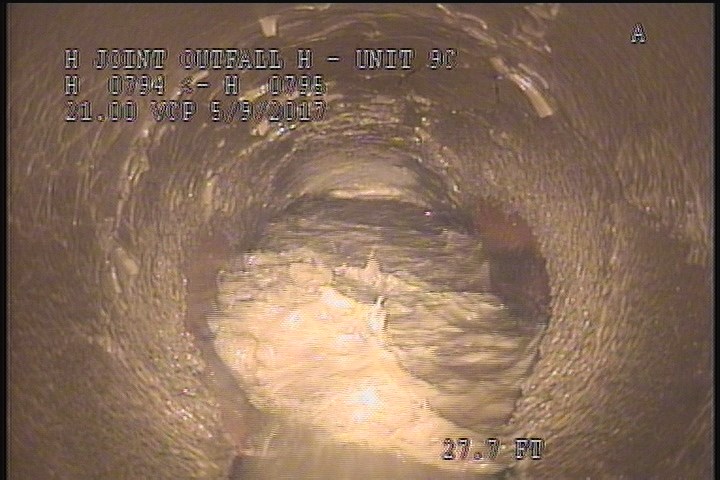

27.7 ft. - Survey Abandoned - HIGH WATER
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | LD | — |
| 18.3 | DAGS | — |
| 0 | AMH | 10:51 AM |
| 0.1 | MWM | — |
| 2 | SSS | — |
| 27.7 | SSS | — |
| 0.1 | MWL | — |
| 27.7 | MSA | HIGH WATER |
| 27.7 | DAGS | — |
Properties (7)
- additional_info
- (TAPE NUMBER IS G7402) DOWNLEG VIEW OF THE UPSTREAM SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-09T10:40:45-07:00
- documentation
- FRANKLIN, IGNACIO, BRAR, SHADLER
- is_lateral_inspection
- false
- year_laid
- 19850823
