Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2017, 04:49 PM

  • 21 0425_21 0424_592017_095135.mp4

Date
05/09/2017
W/O
PENDING(R)
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00762
PipeID
P15632
Time
9:49 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7401R
Sewer Name
21 DIAMOND BAR TRUNK
City
DIAMOND BAR
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
36
Purpose
Maintenance Related
Project
20170509DF_DIAMOND_BAR_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
21 0424
Downstream MH
21 0425
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
1
Overall Quick
—
Overall Rating
1
Pipe schematic from manhole 21 0424 to 21 0425
MH: 21 0424MH: 21 0425upstream0 ft. MSA - Survey Abandoned - ROOT MASS0.1 ft. MGP - General Photograph0.1 ft. RFJ - Roots Fine Joint, from 09 to 04 o'clock, within 8 inches of joint: YESR2.1 ft. AMH - Downstream Manhole, Survey Begins - 9:50 AM2.1 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (2)

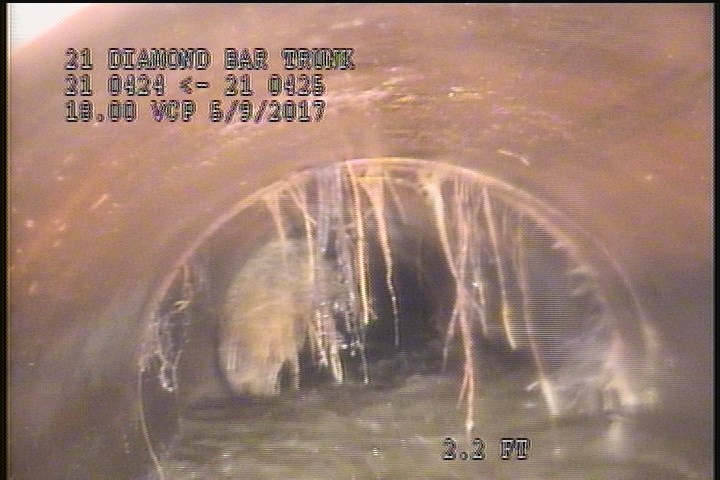

  • General Photograph

    2.1 ft. - General Photograph

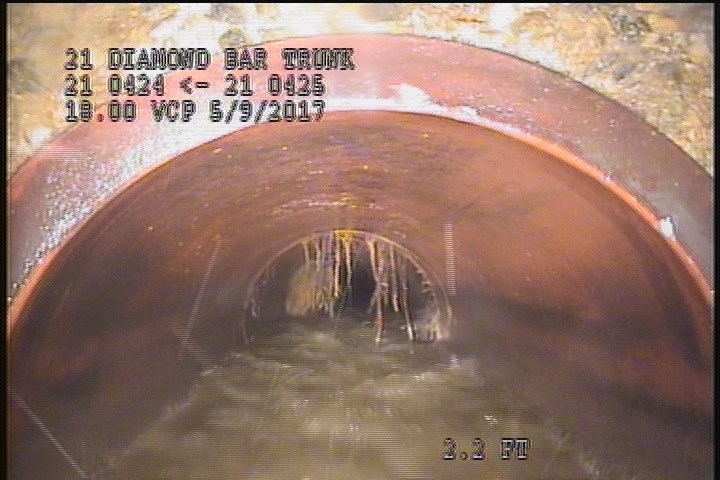

  • Roots Fine Joint, from 09 to 04 o'clock, within 8 inches of joint: YESR

    2.1 ft. - Roots Fine Joint, from 09 to 04 o'clock, within 8 inches of joint: YESR

All inspections of P15632Work order PENDING(R)

Observations (6)

DistanceCodeObservation
0.1AMH9:50 AM
0.1MWL—
2.1MGP—
2.2MSAROOT MASS
0.1MWM—
2.1RFJ—

Properties (5)

custom_field_two
5
customer
LACSD
datetime
2017-05-09T09:49:12-07:00
documentation
FRANKLIN, IGNACIO, BRAR, SHADLER
is_lateral_inspection
false
