Wastewater/Activity/PacpInspection/1.0May 5, 2017, 03:11 PM
C 0466_C 0465_552017_082926.mp4
- Date
- 05/05/2017
- W/O
- 0571398
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00118
- PipeID
- P09539
- Time
- 8:11 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7397
- Sewer Name
- C JOINT OUTFALL C - UNIT 1 RELIEF EMERGENCY BYPASS
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 18
- Purpose
- Maintenance Related
- Project
- 20170505MI_JOINT_OUTFALL_C_UNIT_1_RELIEF_EMERGENCY_BYPASS
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- C 0466
- Downstream MH
- C 0465
- Dir. of Survey
- Downstream
- Length Surveyed
- 359.6 ft.
- Total Length
- 359.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (2)

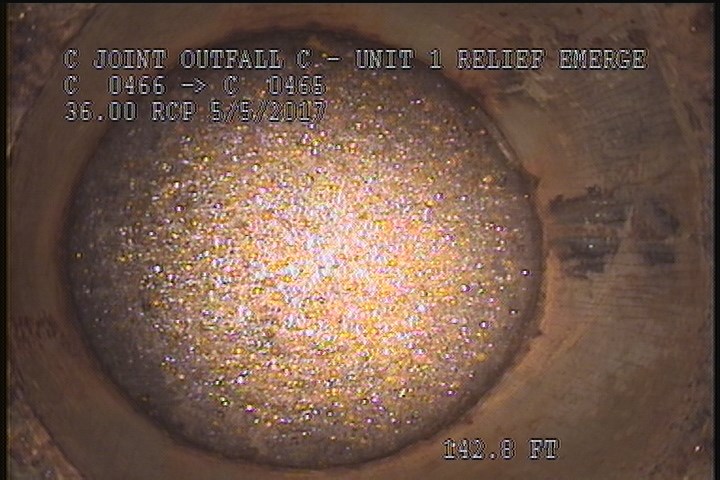

142.8 ft. - General Observation - POSSIBLE CAPPED CONNECTION OR UNMAPPED MH, 12 OCLOCK

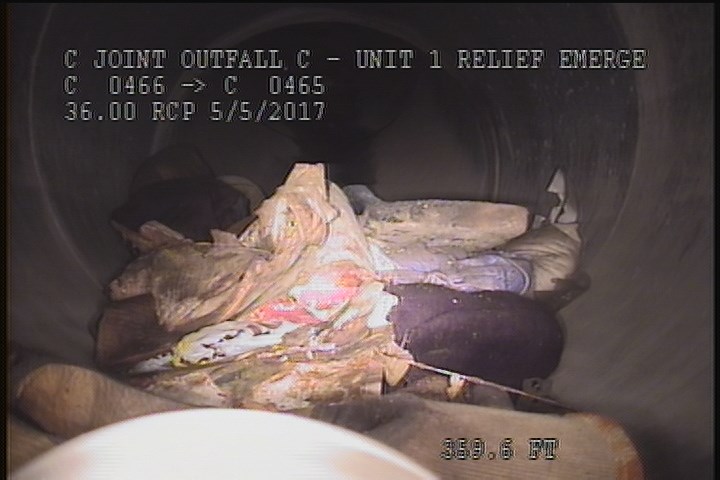

359.6 ft. - Survey Abandoned - DUE TO DEBRIS, 40%
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 142.8 | MGO | POSSIBLE CAPPED CONNECTION OR UNMAPPED MH, 12 OCLOCK |
| 359.6 | MSA | DUE TO DEBRIS, 40% |
| 0 | AMH | 08:28 AM |
| 0 | MWL | — |
Properties (6)
- additional_info
- GENERAL INSPECTION OF PIPE AS FAR AS POSSIBLE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-05T08:11:08-07:00
- documentation
- IGNACIO, OBREGON, SHADLER, BRAR
- is_lateral_inspection
- false
