Wastewater/Activity/PacpInspection/1.0Apr 6, 2017, 05:57 PM
19 0021_19 0020_462017_105927.mp4
- Date
- 04/06/2017
- W/O
- 0602259
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00727
- PipeID
- P15051
- Time
- 10:57 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7379
- Sewer Name
- 19 PALO VERDE TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20170406DF_PALO_VERDE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 19 0021
- Downstream MH
- 19 0020
- Dir. of Survey
- Downstream
- Length Surveyed
- 257.6 ft.
- Total Length
- 257.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)
2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

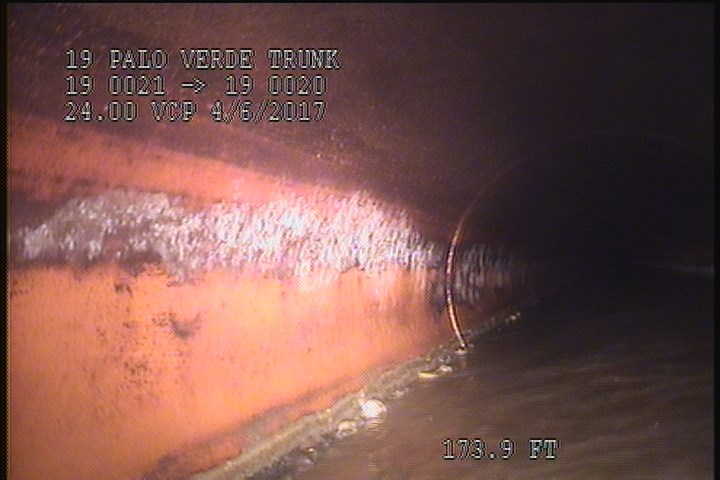

173.9 ft. - General Photograph - SPALLING
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 257 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | MWL | — |
| 257.6 | AMH | 11:14 AM |
| 0 | AMH | 10:58 AM |
| 2 | SSS | — |
| 255.7 | SSS | — |
| 0 | MWM | — |
| 173.9 | MGP | SPALLING |
| 0 | MGO | ROACHES @ MH |
| 257 | MGO | ROACHES @ MH |
| 257 | MGO | Grease Throughout The Reach (5%) |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-06T10:57:09-07:00
- documentation
- FRANKLIN, BRAR, SHADLER
- is_lateral_inspection
- false
