Wastewater/Activity/PacpInspection/1.0Mar 28, 2017, 04:45 PM
C 0402_C 0401_3282017_094854.mp4
- Date
- 03/28/2017
- W/O
- 0631627
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00143
- PipeID
- P09870
- Time
- 9:45 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7370
- Sewer Name
- C JOINT OUTFALL C - UNIT 8E
- City
- ARTESIA
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 40
- Purpose
- Routine Assessment
- Project
- 20170328AM_JOINT_OUTFALL_C_UNIT_8E
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- C 0402
- Downstream MH
- C 0401
- Dir. of Survey
- Downstream
- Length Surveyed
- 401.2 ft.
- Total Length
- 401.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)
0 ft. - Water Mark, 40 %of cross sectional area

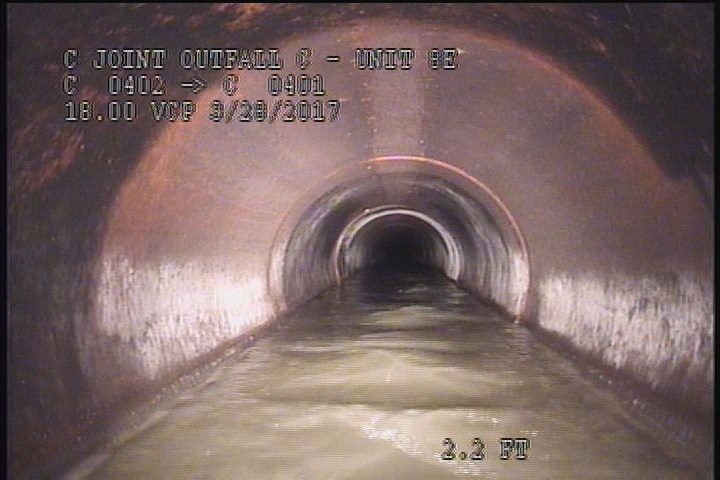

2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

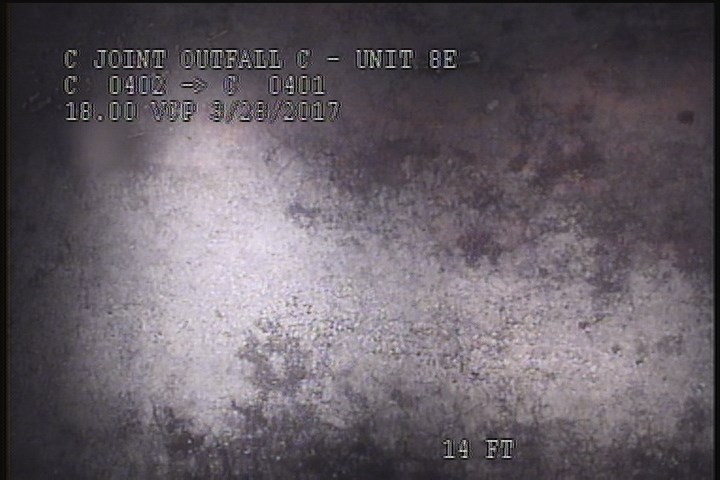

14 ft. - General Photograph - SPALLING

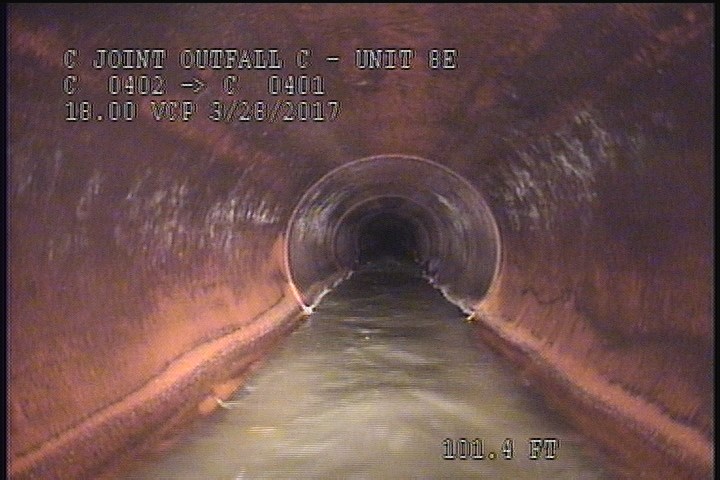

101.4 ft. - General Observation - SAG/DIP IN GRADE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 400.2 | MGO | ROACHES INSIDE THE MH. |
| 14 | MGP | SPALLING |
| 0 | MWL | — |
| 399.7 | MGO | SAGS/DIP IN GRADES THROUGHOUT THE REACH |
| 401.2 | AMH | 10:06 AM |
| 0 | MWM | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 101.4 | MGO | SAG/DIP IN GRADE |
| 0 | AMH | 9:47 AM |
| 399.7 | SSS | — |
| 399.7 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 2.2 | SSS | — |
Properties (6)
- custom_field_three
- SPALLING THROUGHOUT THE REACH
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-28T09:45:38-07:00
- documentation
- MIRANDA, FRANKLIN, BRAR
- is_lateral_inspection
- false
