Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 07:36 AM
29 0259A_29 0259 _05102018_010903.mpg
- Date
- 10/05/2018
- W/O
- 729275
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00550
- PipeID
- P24163
- Time
- 12:36 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6131
- Sewer Name
- 29 WEST HILL STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729275_TV29063_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0259A
- Downstream MH
- 29 0259
- Dir. of Survey
- Downstream
- Length Surveyed
- 216 ft.
- Total Length
- 216 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

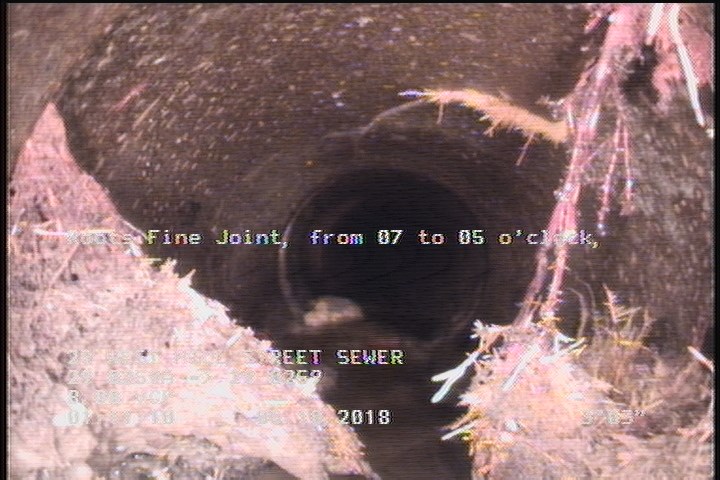

3 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

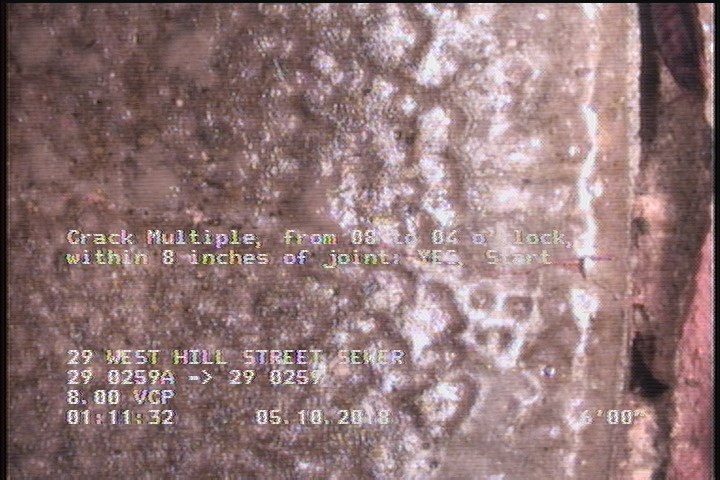

6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

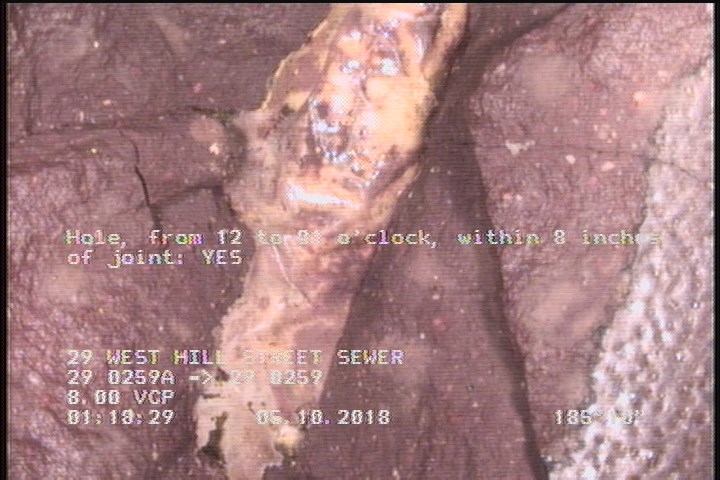

186 ft. - Hole, from 12 to 01 o'clock, within 8 inches of joint: YES

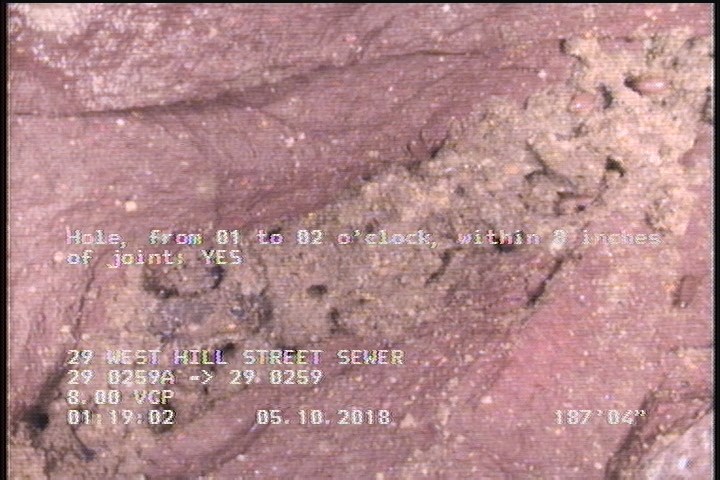

187 ft. - Hole, from 01 to 02 o'clock, within 8 inches of joint: YES
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 216 | MGO | CONNECTION AT MH 9 OCLOCK |
| 11 | RFJ | — |
| 31 | TFC | — |
| 186 | H | — |
| 97 | TF | — |
| 179 | TF | — |
| 3 | RFJ | — |
| 6 | CM | — |
| 130 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 29 0259A C/O |
| 216 | CM | — |
| 187 | H | — |
| 216 | MGO | CONNECTION AT MH 3 OCLOCK |
| 216 | AMH | 29 0259 |
| 0 | MGO | ROOTS IN C/O |
| 3 | TF | — |
| 7 | TFA | — |
Properties (6)
- additional_info
- SC364850
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-05T00:36:30-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
