Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 09:07 AM

  • 29 0267_29 0266 _05102018_020757.mpg

Date
10/05/2018
W/O
729275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00550
PipeID
P24172
Time
2:07 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6131
Sewer Name
29 WEST HILL STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_729275_TV29063_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0267
Downstream MH
29 0266
Dir. of Survey
Downstream
Length Surveyed
336 ft.
Total Length
336 ft.
Structural Index
4
Structural Quick
5242
Structural Rating
21
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
4
Overall Quick
—
Overall Rating
24
Pipe schematic from manhole 29 0267 to 29 0266
MH: 29 0267MH: 29 0266downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 02670 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area4 ft. FM - Fracture Multiple, from 07 to 03 o'clock, within 8 inches of joint: YES5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"6 ft. B - Broken, from 04 to 07 o'clock, within 8 inches of joint: YES8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"11 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"30 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start59 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"65 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"104 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"122 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"168 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"217 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"218 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start220 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"223 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"262 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"264 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"316 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"316 ft. RML - Roots Medium Lateral, at 02 o'clock, 10 %, within 8 inches of joint: NO330 ft. B - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES336 ft. AMH - Downstream Manhole, Survey Ends - 29 0266336 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish336 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

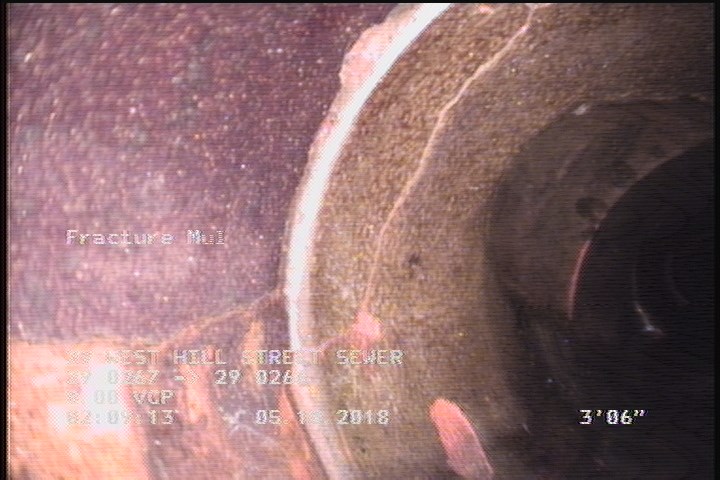

  • Fracture Multiple, from 07 to 03 o'clock, within 8 inches of joint: YES

    4 ft. - Fracture Multiple, from 07 to 03 o'clock, within 8 inches of joint: YES

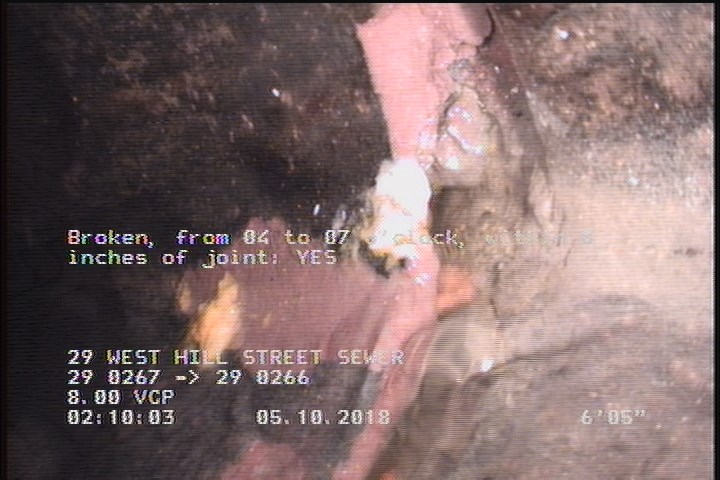

  • Broken, from 04 to 07 o'clock, within 8 inches of joint: YES

    6 ft. - Broken, from 04 to 07 o'clock, within 8 inches of joint: YES

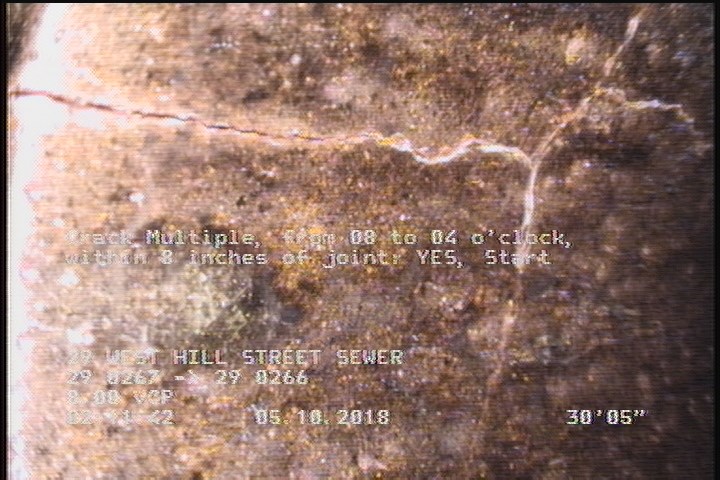

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    30 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

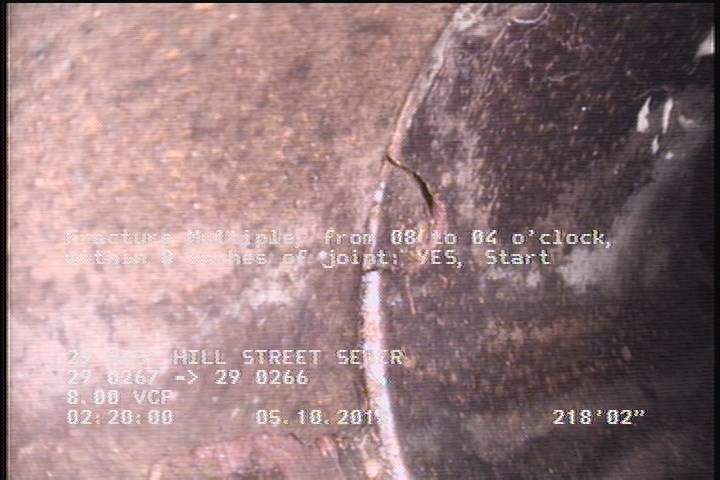

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    218 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

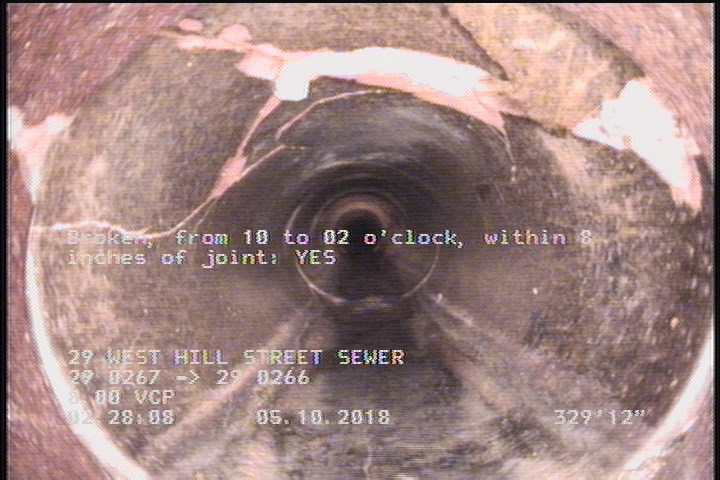

  • Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

    330 ft. - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P24172Work order 729275

Observations (26)

DistanceCodeObservation
218FM—
168TF—
262TF—
65TF—
336AMH29 0266
220TF—
59TF—
316TF—
316RML—
30CM—
336CM—
122TF—
223TFC—
6B—
330B—
0AMH29 0267
104TF—
217TF—
0MWM—
336FM—
4FM—
5TF—
11TF—
0MWL—
264TF—
8TFC—

Properties (6)

additional_info
SC364850
custom_field_two
2
customer
LACSD
datetime
2018-10-05T02:07:29-07:00
documentation
PROPIPE
is_lateral_inspection
false
