Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2018, 09:53 AM

  • 29 0268_29 0267 _05102018_030058.mpg

Date
10/05/2018
W/O
729275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00550
PipeID
P24173
Time
2:53 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6131
Sewer Name
29 WEST HILL STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_729275_TV29063_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0268
Downstream MH
29 0267
Dir. of Survey
Downstream
Length Surveyed
330 ft.
Total Length
330 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 29 0268 to 29 0267
MH: 29 0268MH: 29 0267downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 02680 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start78 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"81 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"130 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"132 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"181 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"184 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"186 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"238 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"286 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"288 ft. FM - Fracture Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES289 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"330 ft. AMH - Downstream Manhole, Survey Ends - 29 0267330 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

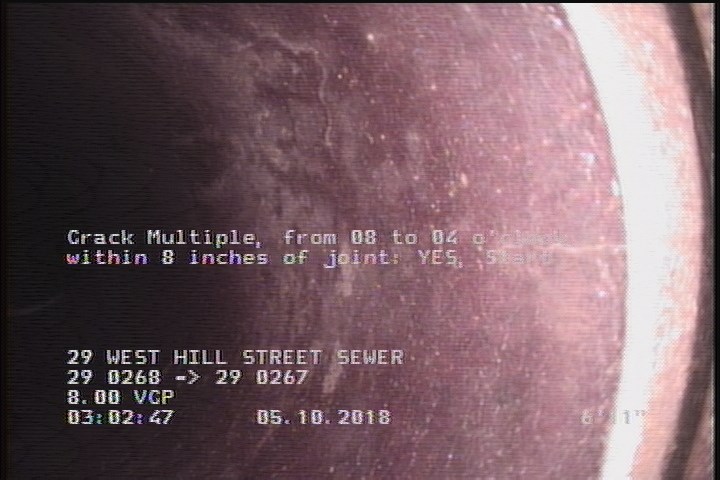

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

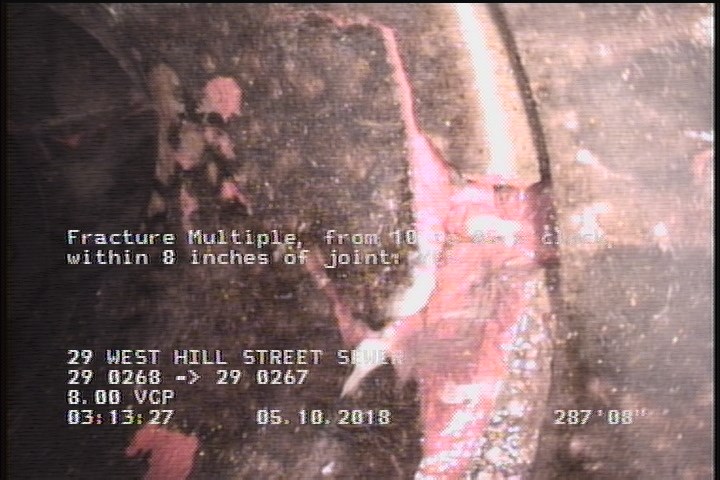

  • Fracture Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

    288 ft. - Fracture Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

All inspections of P24173Work order 729275

Observations (17)

DistanceCodeObservation
0AMH29 0268
78TF—
289TF—
130TF—
81TF—
330AMH29 0267
238TF—
0MWL—
132TFC—
288FM—
0MWM—
286TF—
7CM—
330CM—
186TF—
184TF—
181TF—

Properties (6)

additional_info
SC364850
custom_field_two
3
customer
LACSD
datetime
2018-10-05T02:53:33-07:00
documentation
PROPIPE
is_lateral_inspection
false
