Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 30, 2018, 07:25 AM

  • 29 0423_29 0422_10302018_005010.mp4

Date
10/30/2018
W/O
0736994
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00989
PipeID
P24460
Time
12:25 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
H1033R
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Maintenance Related
Project
20181030MDM_LEWIS_AVENUE_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0423
Downstream MH
29 0422
Dir. of Survey
Downstream
Length Surveyed
138.5 ft.
Total Length
138.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 29 0423 to 29 0422
MH: 29 0423MH: 29 0422downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWM - Water Mark, 20 %of cross sectional area1 ft. MGO - General Observation - BROKEN SHELF 3:00 FALLING INTO CHANNEL1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - PAPER & RAGS IN MH14.9 ft. MGO - General Observation - 8' VCP66.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open120.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open138 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 10 o'clock, , within 8 inches of joint: NO - INSIDE MH138 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active138.5 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (4)

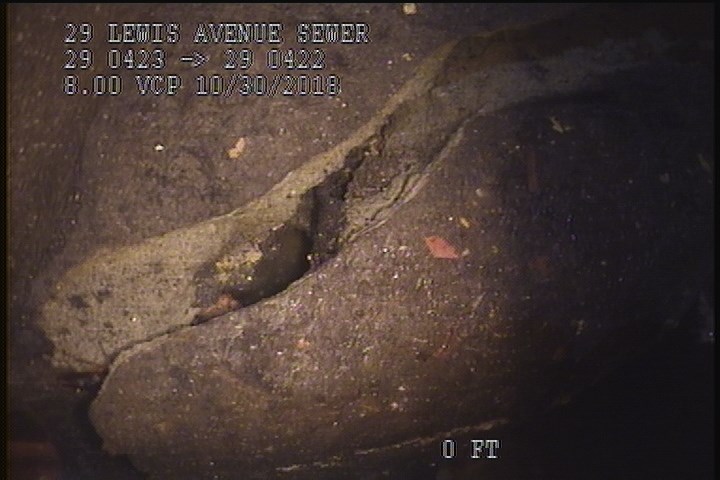

  • General Observation - BROKEN SHELF 3:00 FALLING INTO CHANNEL

    1 ft. - General Observation - BROKEN SHELF 3:00 FALLING INTO CHANNEL

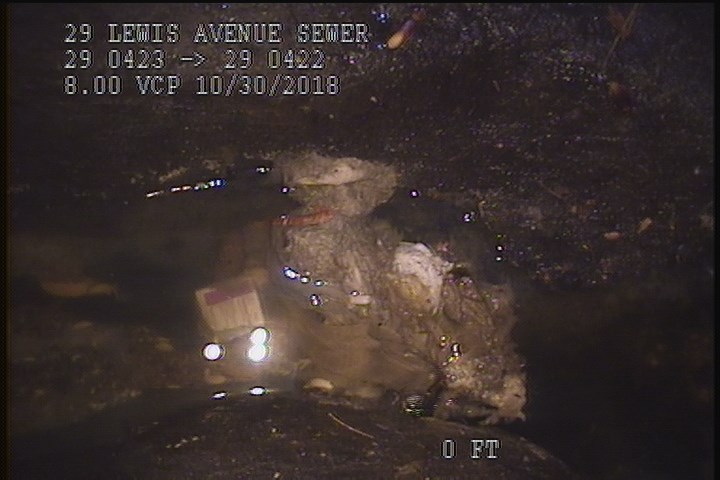

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - PAPER & RAGS IN MH

    1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - PAPER & RAGS IN MH

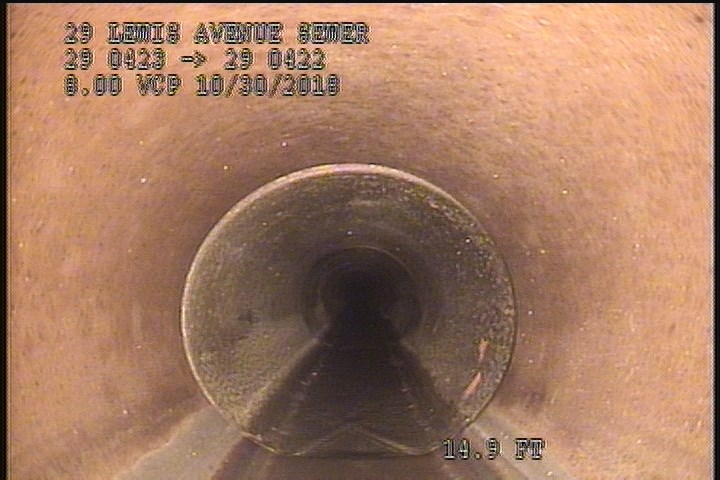

  • General Observation - 8' VCP

    14.9 ft. - General Observation - 8' VCP

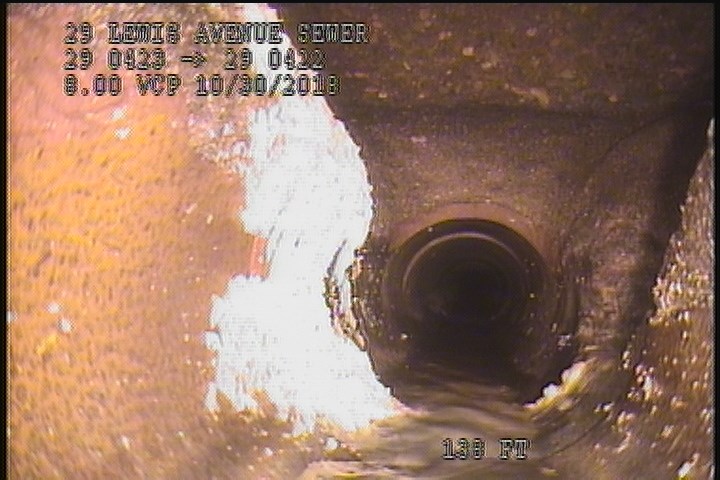

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 10 o'clock, , within 8 inches of joint: NO - INSIDE MH

    138 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 10 o'clock, , within 8 inches of joint: NO - INSIDE MH

All inspections of P24460Work order 0736994

Observations (11)

DistanceCodeObservation
0MWL—
138DAGSINSIDE MH
0AMH12:45AM
138.5AMH1:10AM
120.8TFOpen
0MWM—
66.5TFOpen
1MGOBROKEN SHELF 3:00 FALLING INTO CHANNEL
14.9MGO8' VCP
1DSZPAPER & RAGS IN MH
138MGOConn. @ Mh, 3 O' Clock. Active

Properties (7)

additional_info
POST DEBRIE/ROOT CCTV
custom_field_three
MH# 423-SHELF BROKEN FALLING INTO CHANNEL
custom_field_two
1
customer
LACSD
datetime
2018-10-30T00:25:29-07:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
