Wastewater/Activity/PacpInspection/1.0Mar 27, 2018, 03:47 PM
Section#1_A 0348_A 0347__3272018__G6981.mp4
- Date
- 03/27/2018
- W/O
- 0686845
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00325
- PipeID
- P08258
- Time
- 8:47 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6981
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20180327DF_JOA_1ASAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- A 0347
- Downstream MH
- A 0348
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (6)

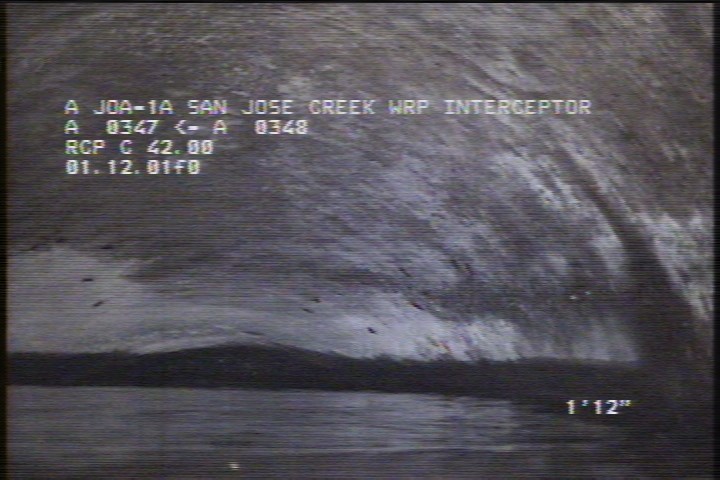

0 ft. - Upstream Manhole, Survey Begins - 8:57 AM

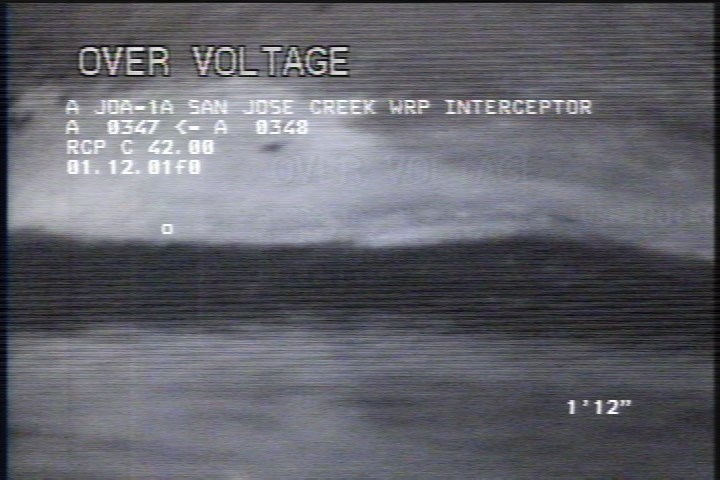

0.1 ft. - Water Level, 100 %of cross sectional area

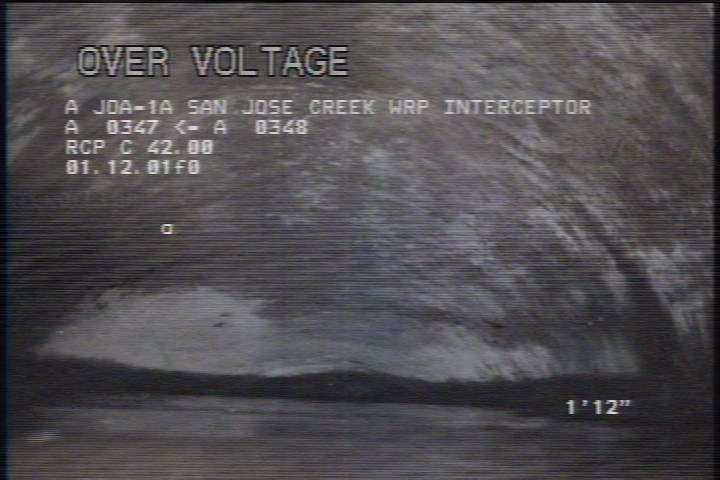

0.1 ft. - Water Mark, 100 %of cross sectional area

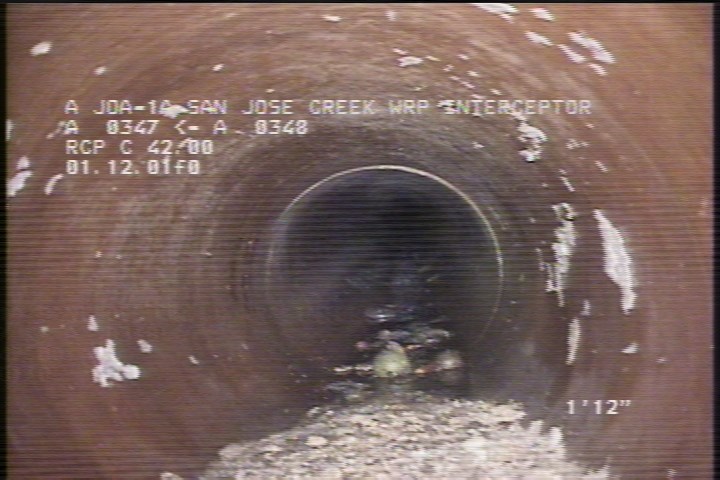

0.1 ft. - General Photograph - AIRLINE

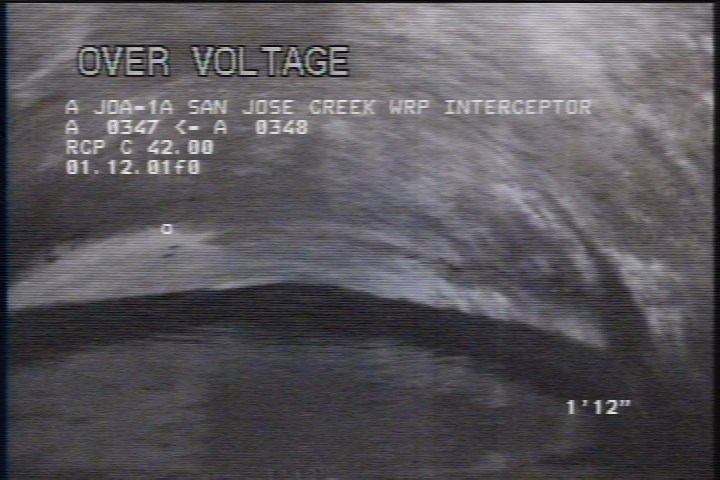

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

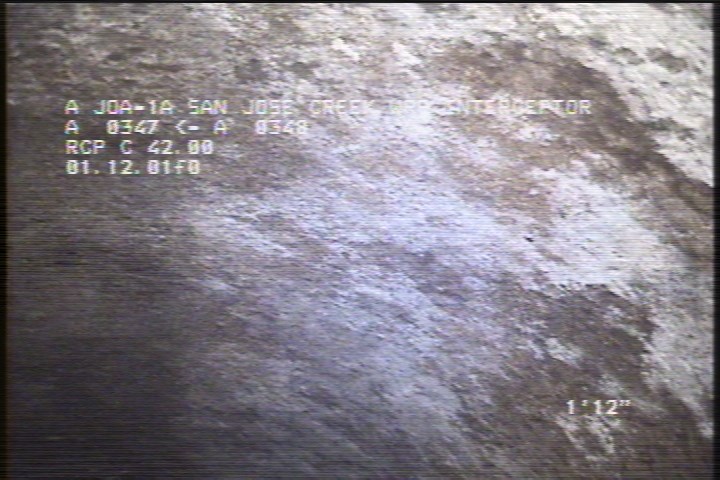

2.1 ft. - Survey Abandoned - 9:25 AM
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 2 | LU | — |
| 0 | AMH | 8:57 AM |
| 0.1 | MWL | — |
| 0.1 | MWM | — |
| 2.1 | MSA | 9:25 AM |
| 0.1 | MGP | AIRLINE |
| 2 | SZ | 50% MAG |
Properties (7)
- additional_info
- VIEW OF THE UPLEG FROM THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-27T08:47:31-07:00
- documentation
- FRANKLIN,PARAISO, SHADLER
- is_lateral_inspection
- false
- year_laid
- 19800725
