Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 09:37 AM

  • Section#5_29 0277_29 0226__272018__,. G6950.mp4

Date
02/07/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01020
PipeID
P24129
Time
1:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
,. G6950
Sewer Name
29 WALNUT AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Capital Improvement Program Assesment
Project
20180206MDM_WALNUT_AVENUE_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0277
Downstream MH
29 0226
Dir. of Survey
Downstream
Length Surveyed
344.3 ft.
Total Length
344.3 ft.
Structural Index
2
Structural Quick
2611
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 29 0277 to 29 0226
MH: 29 0277MH: 29 0226downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MWL - Water Level, 5 %of cross sectional area36.6 ft. MGO - General Observation - 8" VCP100 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB199.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB262 ft. FC - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT272.6 ft. FC - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT277.5 ft. FC - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SL277.5 ft. FC - Fracture Circumferential, from 07 to 12 o'clock, within 8 inches of joint: YES - SL299.1 ft. JOL - Joint Offset Large305.4 ft. JOM - Joint Offset Medium306 ft. JSL - Joint Separated Large - SEALED344.3 ft. AMH - Downstream Manhole, Survey Ends - 2:30AM

Observation photos (7)

  • General Observation - 8" VCP

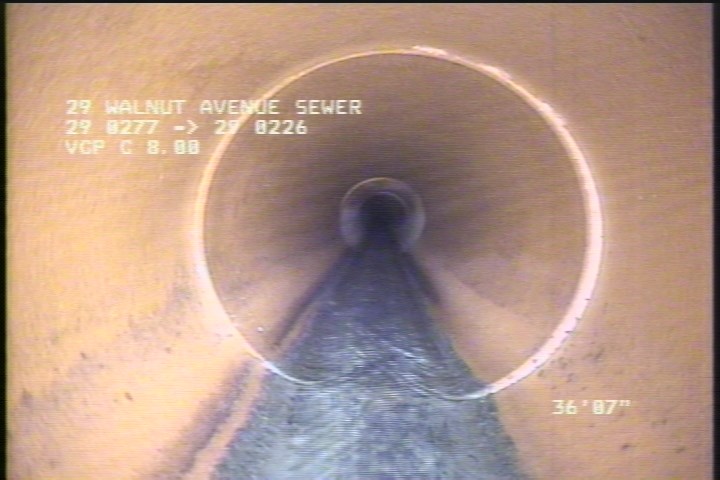

    36.6 ft. - General Observation - 8" VCP

  • Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

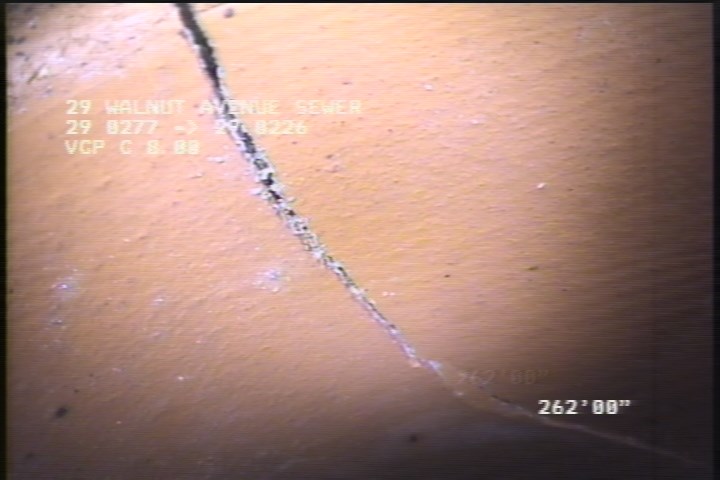

    262 ft. - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

  • Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

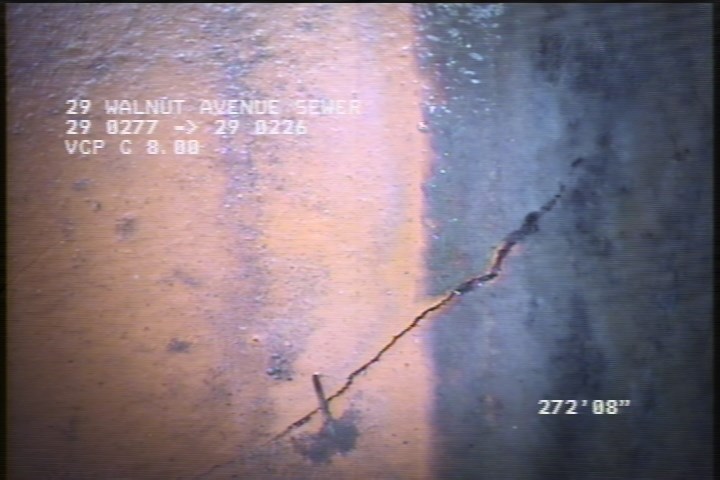

    272.6 ft. - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

  • Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SL

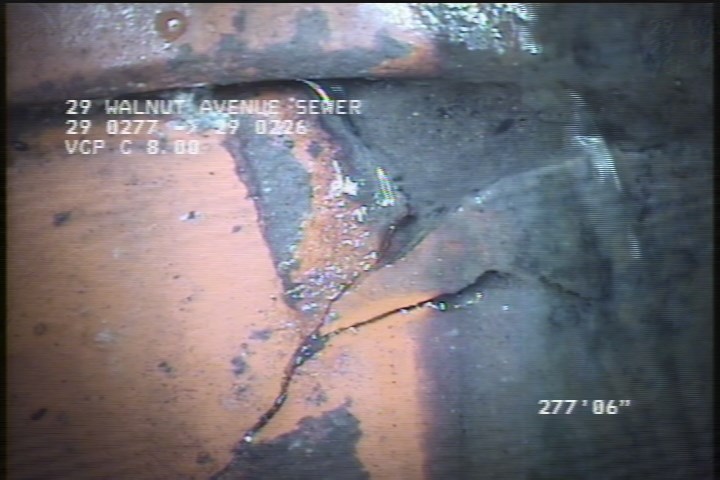

    277.5 ft. - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SL

  • Joint Offset Large

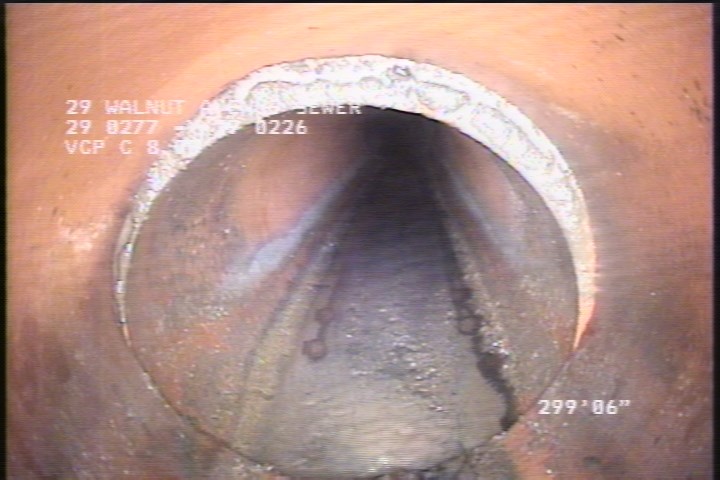

    299.1 ft. - Joint Offset Large

  • Joint Offset Medium

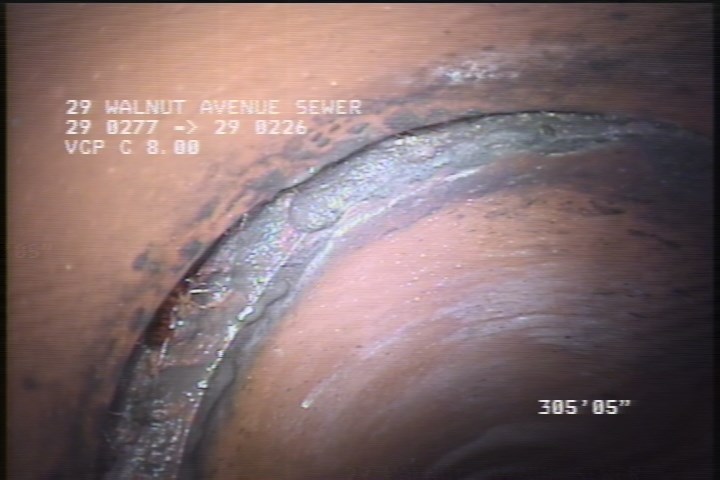

    305.4 ft. - Joint Offset Medium

  • Joint Separated Large - SEALED

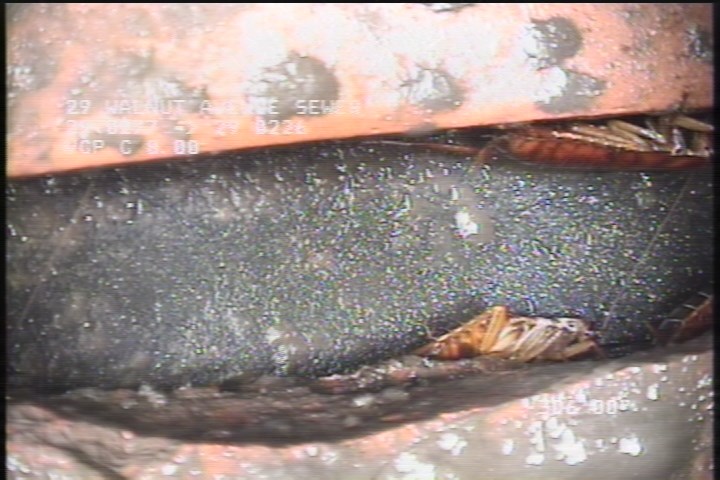

    306 ft. - Joint Separated Large - SEALED

All inspections of P24129Work order #

Observations (14)

DistanceCodeObservation
306JSLSEALED
0MWM—
100TFCSTUB
344.3AMH2:30AM
36.6MGO8" VCP
0AMH1:55AM
277.5FCSL
199.3TFCSTUB
277.5FCSL
272.6FCSLIGHT
305.4JOM—
0MWL—
299.1JOL—
262FCSLIGHT

Properties (6)

custom_field_three
OFFSET JOINT LARGE
custom_field_two
3
customer
LACSD
datetime
2018-02-07T01:37:59-08:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
