Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 08:54 PM
05 0031_05 0030_262018_135625.mp4
- Date
- 02/06/2018
- W/O
- 0674047
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00431
- PipeID
- P05316
- Time
- 12:54 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7623
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- TORRANCE
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180206DF_DISTRICT_5_MAIN_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- 05 0031
- Downstream MH
- 05 0030
- Dir. of Survey
- Downstream
- Length Surveyed
- 159.6 ft.
- Total Length
- 159.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)
0.1 ft. - Water Mark, 30 %of cross sectional area
2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70 % MAG

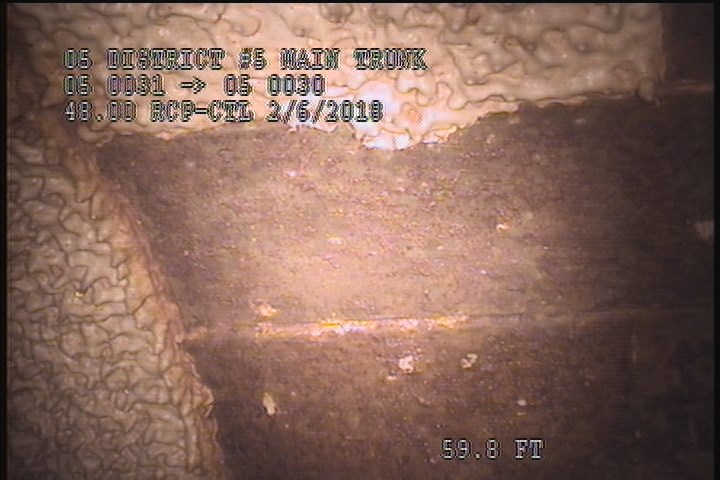

59.8 ft. - General Photograph

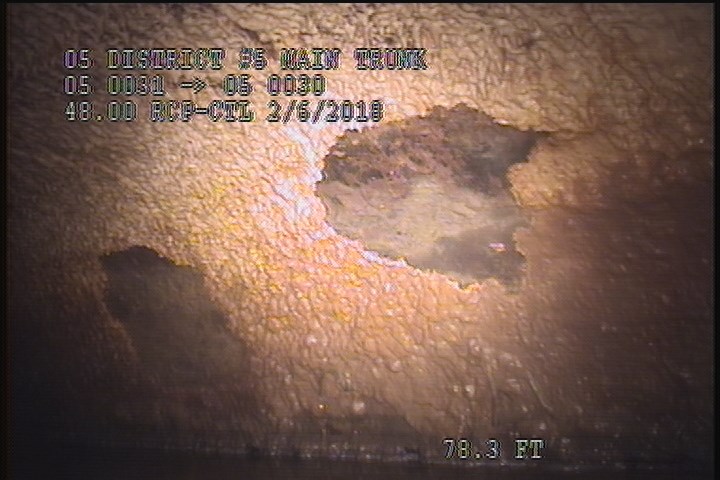

78.3 ft. - General Photograph

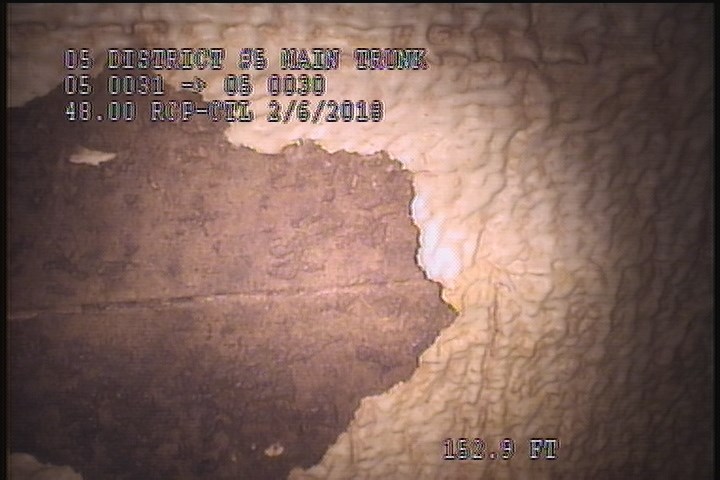

152.9 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWL | — |
| 0 | AMH | 1:39 PM |
| 152.9 | MGP | — |
| 159.6 | AMH | 2:26 PM |
| 152.9 | SZ | 70% MAG |
| 78.3 | MGP | — |
| 59.8 | MGP | — |
| 2 | SZ | 70 % MAG |
| 0.1 | MWM | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-06T12:54:04-08:00
- documentation
- FRANKLIN, PARAISO, BRAR, VENDRYES
- is_lateral_inspection
- false
