Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 08:53 PM
05 0032_05 0031_262018_130941.mp4
- Date
- 02/06/2018
- W/O
- 0674047
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00431
- PipeID
- P05317
- Time
- 12:53 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7623
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- TORRANCE
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180206DF_DISTRICT_5_MAIN_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- 05 0032
- Downstream MH
- 05 0031
- Dir. of Survey
- Downstream
- Length Surveyed
- 67 ft.
- Total Length
- 67 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (6)

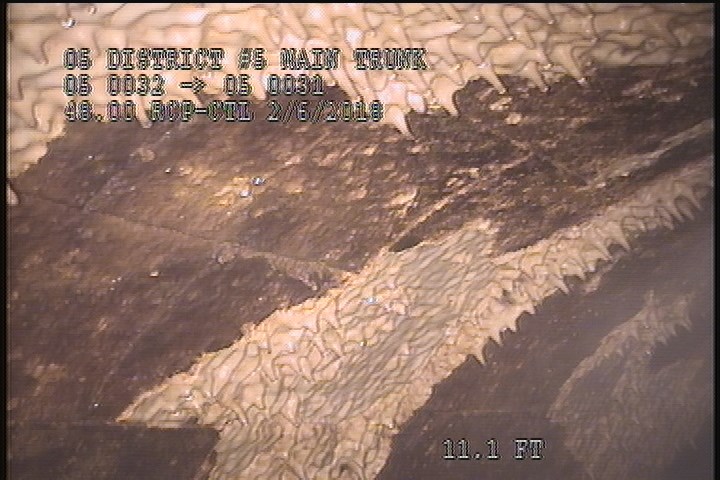

0.1 ft. - Water Mark, 30 %of cross sectional area

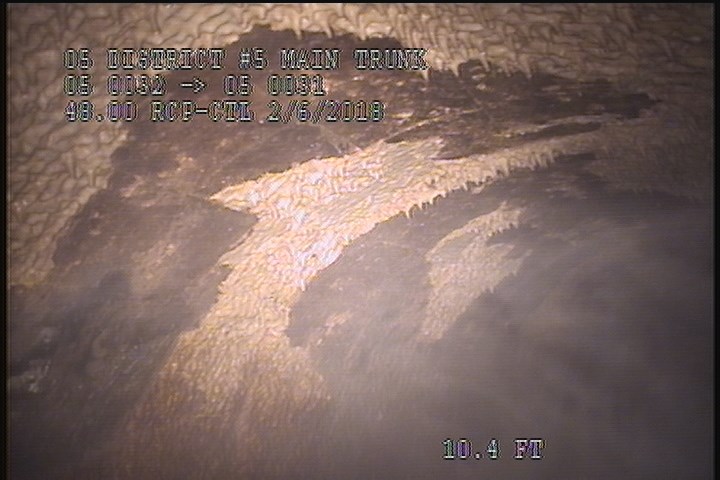

10.4 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70 % MAG

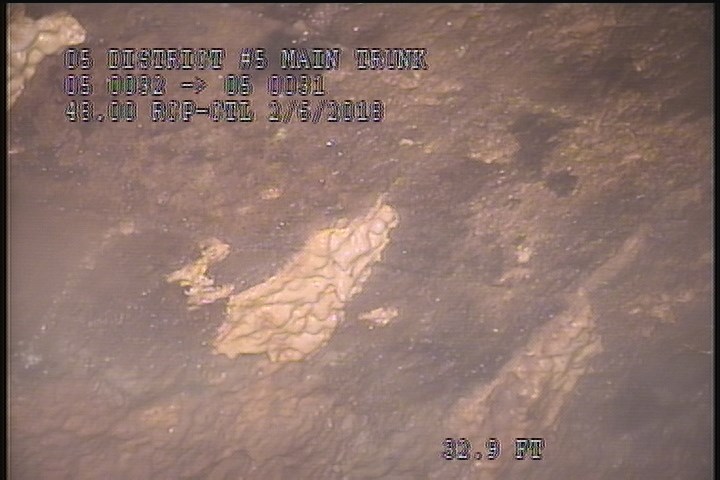

32.9 ft. - General Photograph

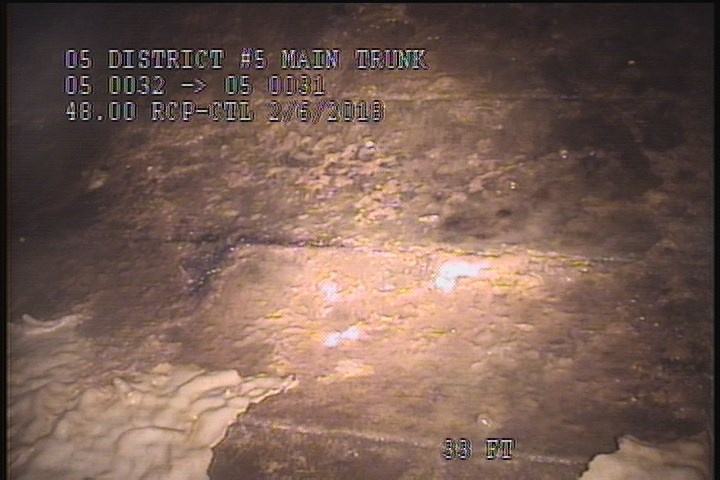

33 ft. - General Photograph

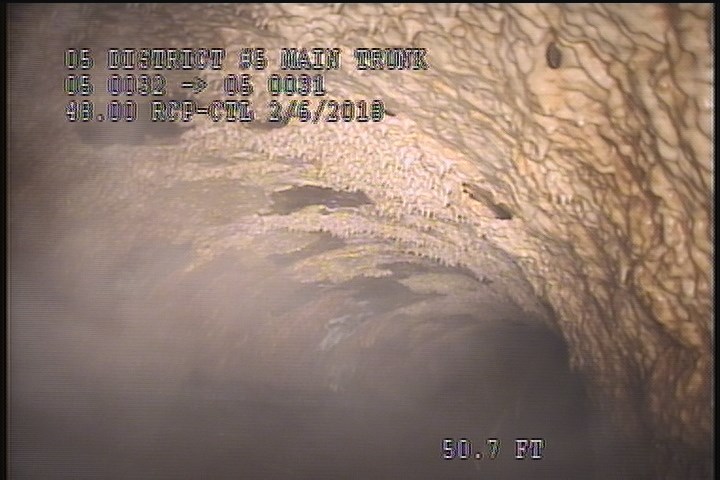

50.7 ft. - General Photograph

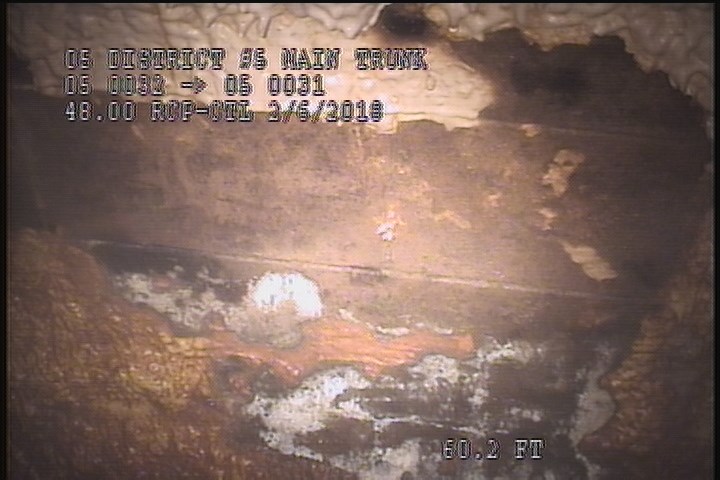

60.2 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 21.8 | TFA | — |
| 60.2 | MGP | — |
| 32.9 | MGP | — |
| 0.1 | MWM | — |
| 0.1 | MWL | — |
| 0 | AMH | 10:00 AM |
| 50.7 | MGP | — |
| 10.4 | SZ | 70 % MAG |
| 66 | SZ | 70% MAG |
| 60.2 | MGO | Grease Throughout The Reach (5%) |
| 33 | MGP | — |
| 67 | AMH | 1:28 PM |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-06T12:53:05-08:00
- documentation
- FRANKLIN, PARAISO, BRAR, VENDRYES
- is_lateral_inspection
- false
