Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 5, 2018, 08:54 AM

  • Section#2_29 077A_29 0277__252018__G6947.mp4

Date
02/05/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00543
PipeID
P24186
Time
12:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6947
Sewer Name
29 ORANGE AVENUE TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20180205MDM_ORANGE_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0277A
Downstream MH
29 0277
Dir. of Survey
Downstream
Length Surveyed
279.9 ft.
Total Length
279.9 ft.
Structural Index
3
Structural Quick
3A26
Structural Rating
48
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
48
Pipe schematic from manhole 29 0277A to 29 0277
MH: 29 0277AMH: 29 0277downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:30AM0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB18.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB48.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - OPEN49.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE63.3 ft. MGO - General Observation - 8" VCP72.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6" - STUB73.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - HAIRLINE79.7 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H85.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H89.1 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H104.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - OPEN106.6 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H106.6 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H121.9 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H121.9 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H122.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - OPEN125.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - OPEN173.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN175 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H184.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H199.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT200.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN207.7 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H222.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H223 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H223.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN225 ft. MWL - Water Level, 5 %of cross sectional area225 ft. MWM - Water Mark, 10 %of cross sectional area246.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H247.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - OPEN248.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H261.6 ft. MGP - General Photograph - WEBS272.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL274 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6" - STUB279.9 ft. AMH - Downstream Manhole, Survey Ends - 2:05AM

Observation photos (3)

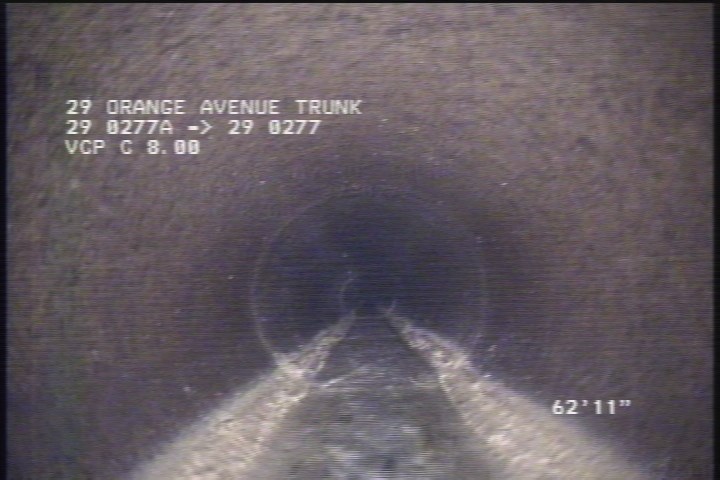

  • General Observation - 8" VCP

    63.3 ft. - General Observation - 8" VCP

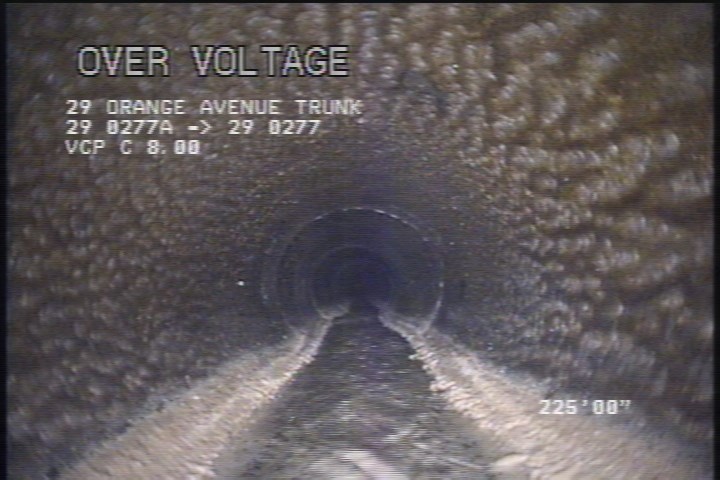

  • Water Mark, 10 %of cross sectional area

    225 ft. - Water Mark, 10 %of cross sectional area

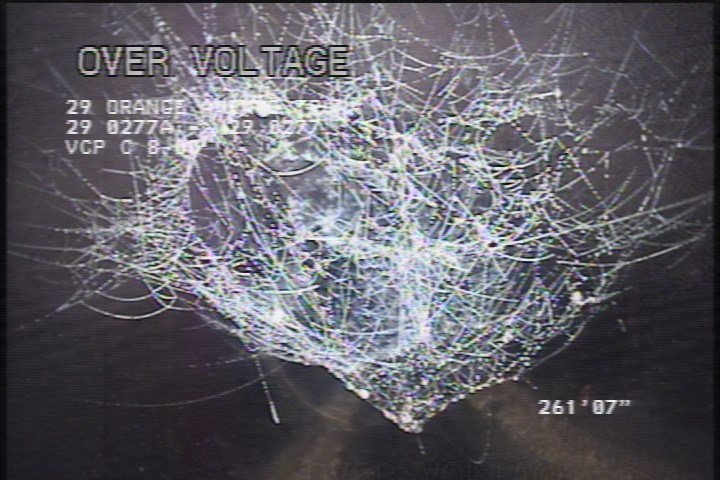

  • General Photograph - WEBS

    261.6 ft. - General Photograph - WEBS

All inspections of P24186Work order #

Observations (38)

DistanceCodeObservation
106.6FLH
207.7FLH
279.9AMH2:05AM
73.8FLHAIRLINE
63.3MGO8" VCP
0AMH1:30AM
222.8FCH
2.8TFCSTUB
85.8FLH
89.1FCH
173.7TFOPEN
272.9FLSL
48.4TFOPEN
0MWM—
261.6MGPWEBS
225MWL—
121.9FCH
49.1FCHAIRLINE
200.5TFOPEN
223.7TFOPEN
246.5FCH
247.3TFOPEN
72.3TFCSTUB
18.5TFCSTUB
125.6TFOPEN
121.9FLH
175FLH
122.7TFOPEN
79.7FLH
104.9TFOPEN
248.1FLH
225MWM—
0MWL—
184.5FLH
274TFCSTUB
106.6FLH
223FLH
199.1FCSLIGHT

Properties (6)

custom_field_three
SLIGHT-HAIRLINE FRACTURES
custom_field_two
4
customer
LACSD
datetime
2018-02-05T00:54:48-08:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
