Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 3, 2018, 06:52 PM

  • 18 1119_18 1118A_232018_105530.mp4

Date
02/03/2018
W/O
0688138
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00711
PipeID
P14972
Time
10:52 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7621
Sewer Name
18 STAGE ROAD JUNCTION TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
20180203DF_STAGE_ROAD_JUNCTION_TR
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
18 1119
Downstream MH
18 1118A
Dir. of Survey
Downstream
Length Surveyed
73.3 ft.
Total Length
73.3 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
11
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 18 1119 to 18 1118A
MH: 18 1119MH: 18 1118Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:54 AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.8 ft. MGP - General Photograph - SPALLING21.2 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Start40.2 ft. MGP - General Photograph44.4 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"47.4 ft. DAR - Deposits Attached Ragging, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES53.2 ft. MGP - General Photograph61.4 ft. MGP - General Photograph70.7 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Finish70.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish70.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish70.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish70.9 ft. MGP - General Photograph73.3 ft. AMH - Downstream Manhole, Survey Ends - 11:08 AM73.3 ft. MGO - General Observation - Grease Throughout The Reach (5%)

Observation photos (8)

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

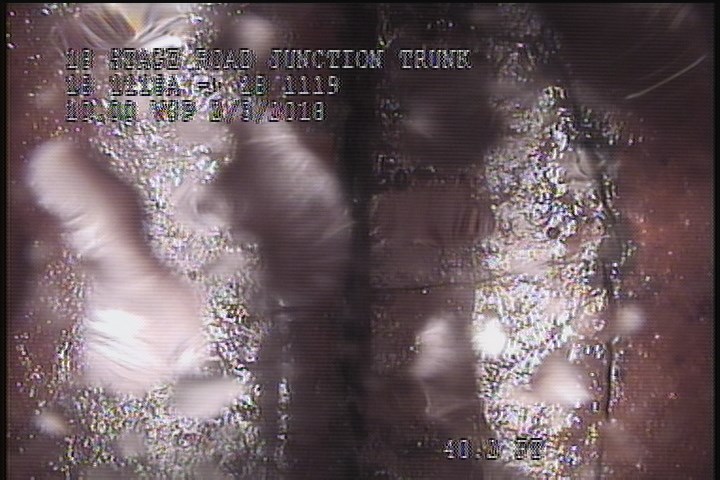

    2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

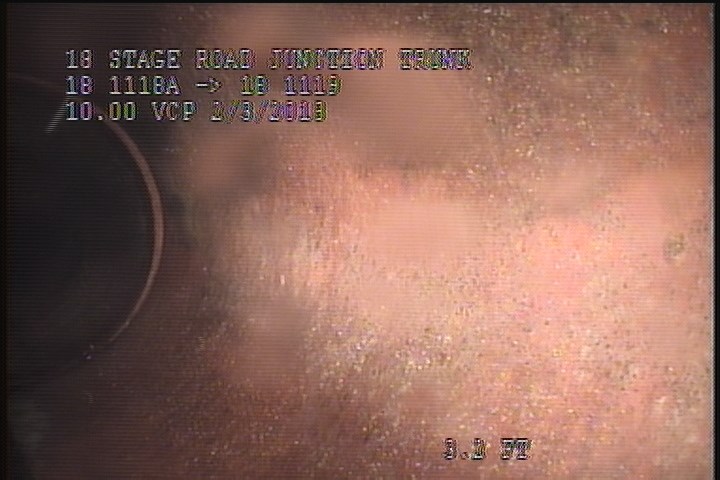

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph - SPALLING

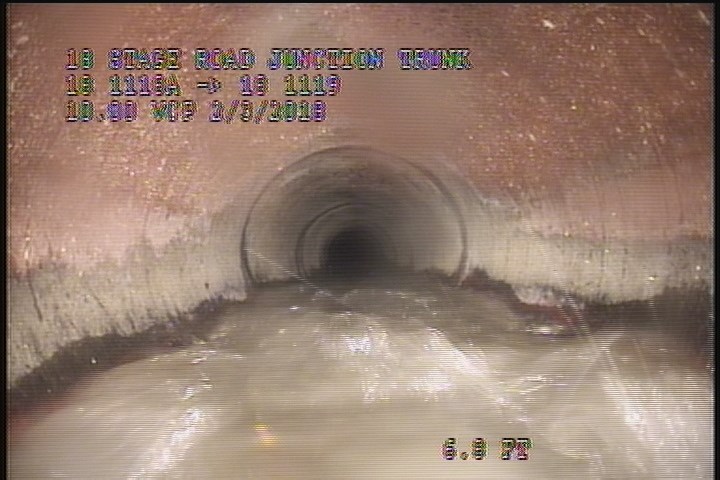

    6.8 ft. - General Photograph - SPALLING

  • General Photograph

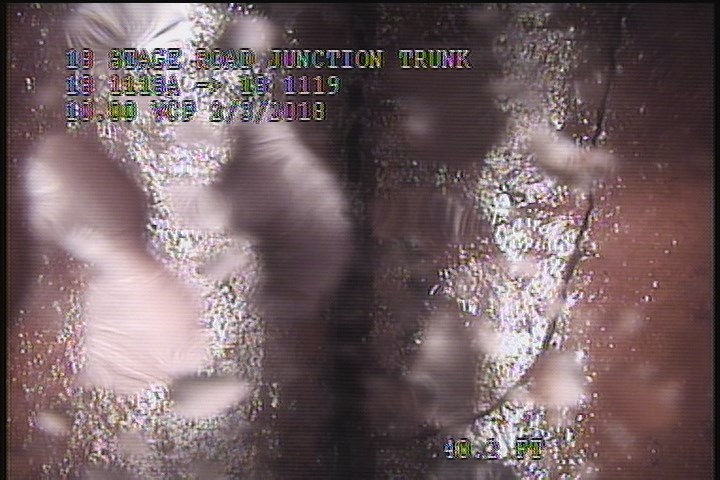

    40.2 ft. - General Photograph

  • Deposits Attached Ragging, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

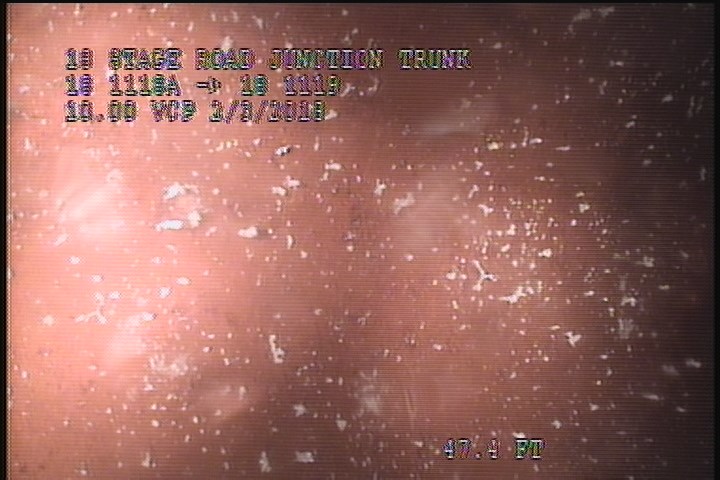

    47.4 ft. - Deposits Attached Ragging, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

  • General Photograph

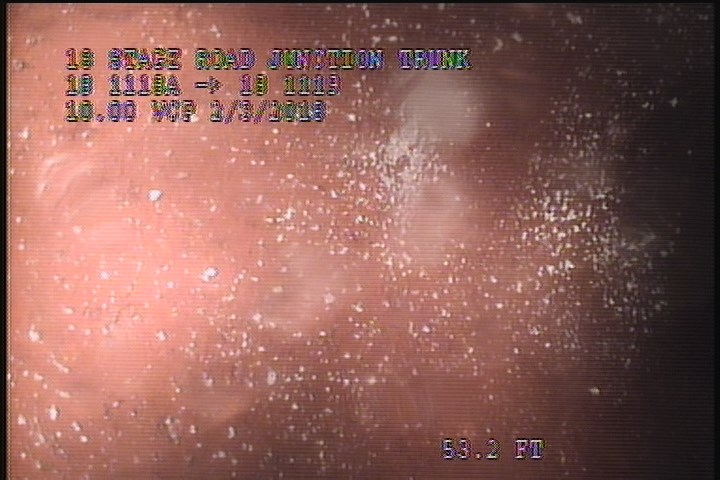

    53.2 ft. - General Photograph

  • General Photograph

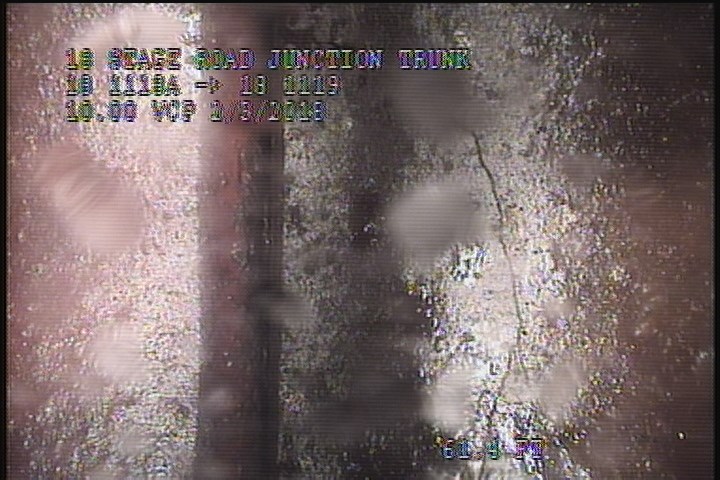

    61.4 ft. - General Photograph

  • General Photograph

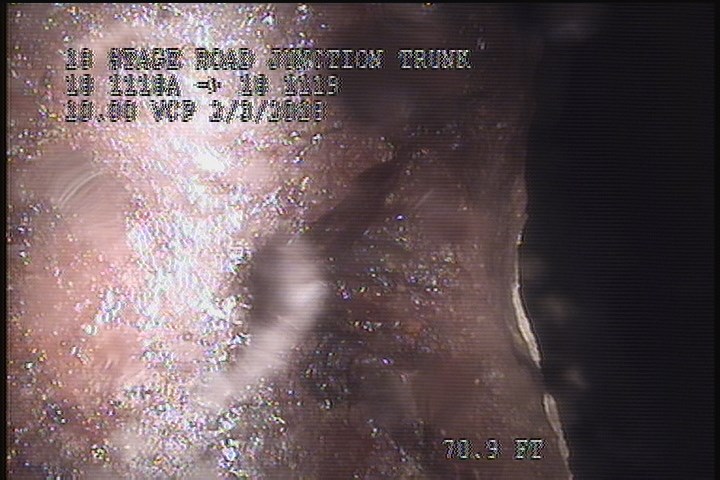

    70.9 ft. - General Photograph

All inspections of P14972Work order 0688138

Observations (20)

DistanceCodeObservation
73.3AMH11:08 AM
70.7MWLS—
70.9MGP—
0AMH10:54 AM
2FM—
47.4DAR—
70.7FM—
6.8MGPSPALLING
2CM—
70.7CM—
0MWL—
0MWM—
53.2MGP—
61.4MGP—
40.2MGP—
70.7SSS—
21.2MWLS—
44.4TFC—
2SSS—
73.3MGOGrease Throughout The Reach (5%)

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-02-03T10:52:50-08:00
documentation
FRANKLIN, VENDRYES
is_lateral_inspection
false
