Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 07:03 AM

  • 03 0239_03 0238_25012018_232618.mp4

Date
01/25/2018
W/O
684824
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00385
PipeID
P04841
Time
11:03 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5422
Sewer Name
03 MARKET STREET TRUNK
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
06
Purpose
Routine Assessment
Project
WO_684824_TV03122_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
03 0239
Downstream MH
03 0238
Dir. of Survey
Downstream
Length Surveyed
592.3 ft.
Total Length
592.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
422P
O&M Rating
178
Overall Index
2
Overall Quick
—
Overall Rating
178
Pipe schematic from manhole 03 0239 to 03 0238
MH: 03 0239MH: 03 0238downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 02390 ft. MWL - Water Level, 25 %of cross sectional area45.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"98.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"134.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start147 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"180.6 ft. MCU - Camera Underwater, Start191.8 ft. MCU - Camera Underwater, Finish195.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"247.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"295.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"348.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"396.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"446.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"498.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"547.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"558.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish592.4 ft. AMH - Downstream Manhole, Survey Ends - 03 0238

Observation photos (2)

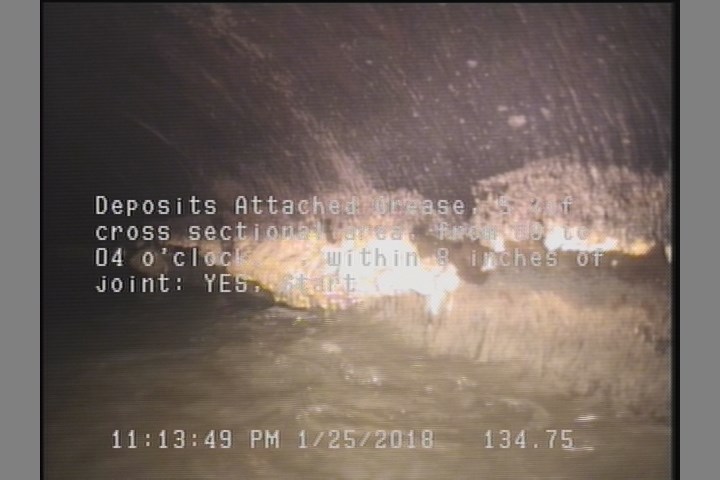

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    134.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

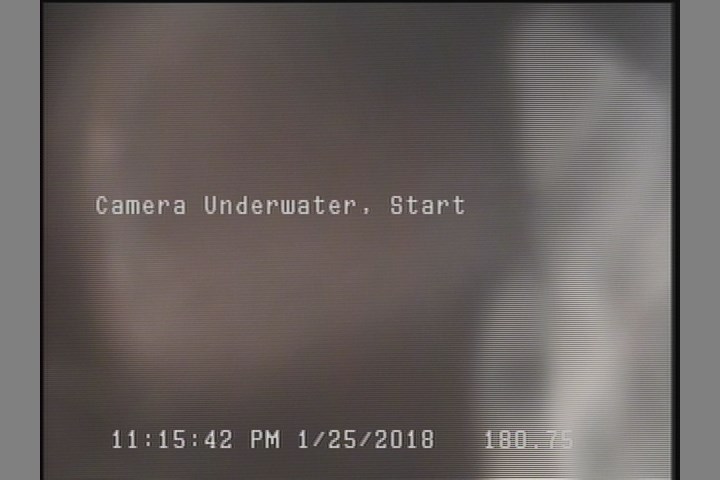

  • Camera Underwater, Start

    180.6 ft. - Camera Underwater, Start

All inspections of P04841Work order 684824

Observations (20)

DistanceCodeObservation
558.4DAGS—
98.5TF—
0MGOCONNECTION AT MH 9 O'CLOCK
348.8TF—
247.3TF—
147TF—
547.5TF—
191.8MCU—
45.4TF—
134.8DAGS—
195.3TF—
180.6MCU—
446.3TF—
592.4AMH03 0238
396.9TF—
0MWM—
0AMH03 0239
0MWL—
498.4TFA—
295.6TF—

Properties (8)

additional_info
SC347057
custom_field_two
4
customer
LACSD
datetime
2018-01-25T23:03:51-08:00
documentation
PROPIPE
is_lateral_inspection
false
lining
CIPP
year_laid
39082
