Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 05:36 AM
20 0129_20 0128 _25012018_215007.mp4
- Date
- 01/25/2018
- W/O
- 684819
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00744
- PipeID
- P19052
- Time
- 9:36 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5387
- Sewer Name
- 20 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_684819_TV20027_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0129
- Downstream MH
- 20 0128
- Dir. of Survey
- Downstream
- Length Surveyed
- 382.1 ft.
- Total Length
- 382.1 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 380
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 152
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 532
Observation photos (3)

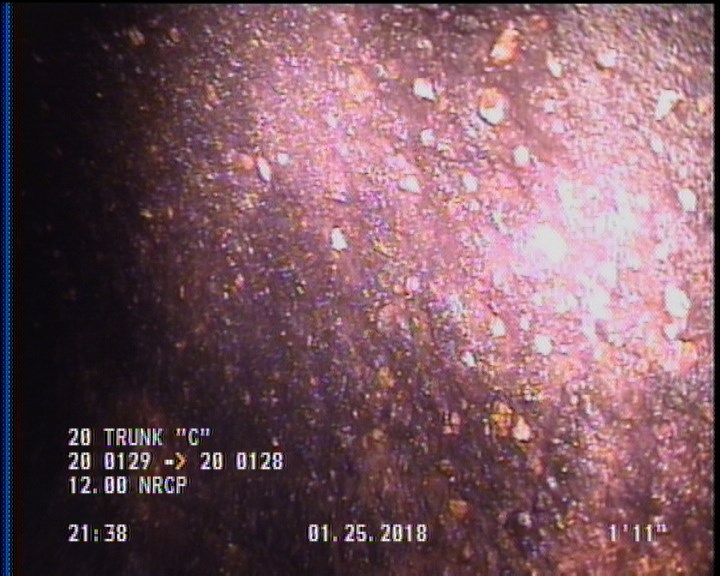

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

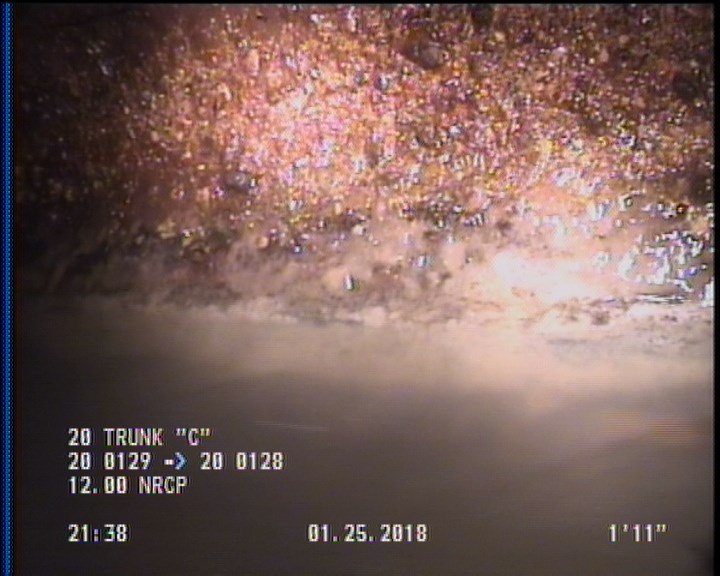

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

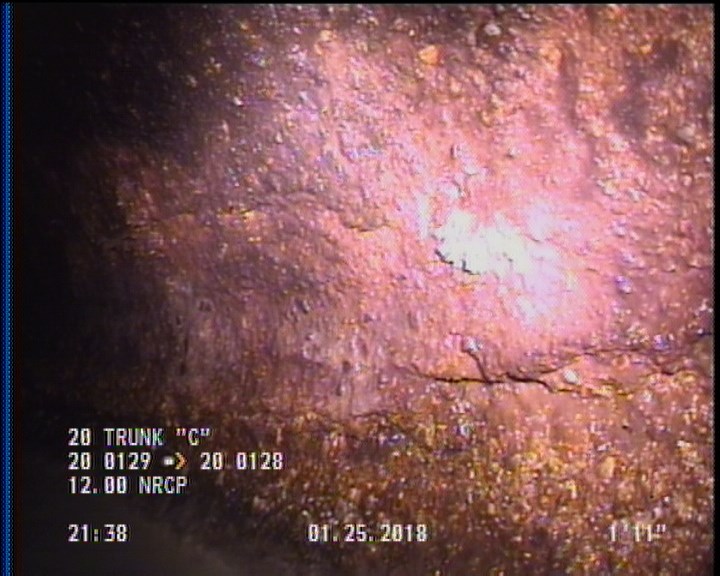

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 20 0129 |
| 2 | SAP | — |
| 2 | DAGS | — |
| 72.1 | TFC | — |
| 172.8 | TFC | — |
| 268.8 | TFC | — |
| 365.2 | TFC | — |
| 168.7 | TFC | — |
| 369.4 | TFC | — |
| 0 | MWL | — |
| 382.1 | AMH | 20 0128 |
| 67.7 | TFC | — |
| 380.3 | SSS | — |
| 2 | SSS | — |
| 380.3 | SAP | — |
| 380.3 | DAGS | — |
| 272.8 | TFC | — |
Properties (6)
- additional_info
- SC346966
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-25T21:36:11-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
