Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 09:16 AM
20 0135_20 0134A _26012018_012017.mp4
- Date
- 01/26/2018
- W/O
- 684819
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00744
- PipeID
- P22291
- Time
- 1:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5387
- Sewer Name
- 20 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_684819_TV20027_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0135
- Downstream MH
- 20 0134A
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.7 ft.
- Total Length
- 11.7 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 3122
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

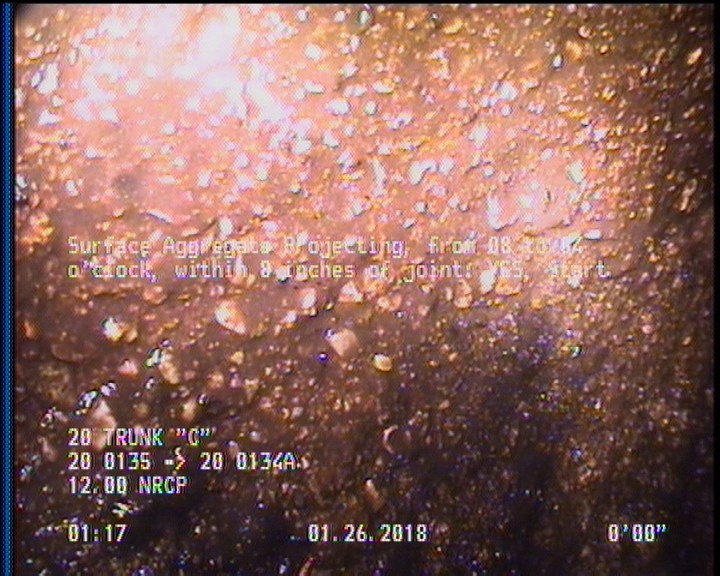

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

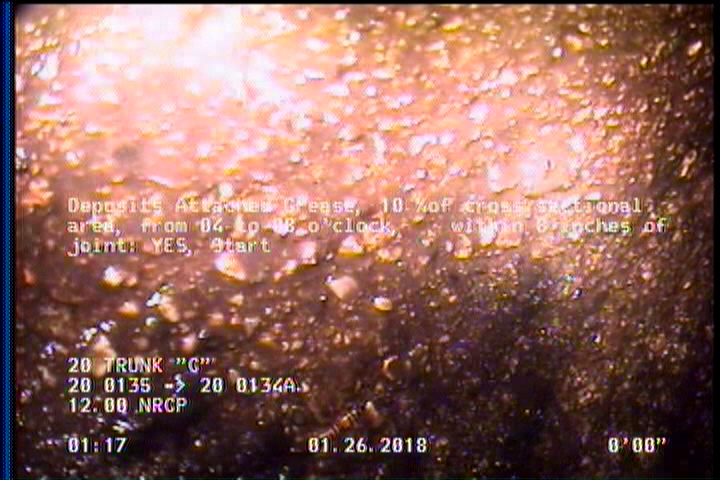

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

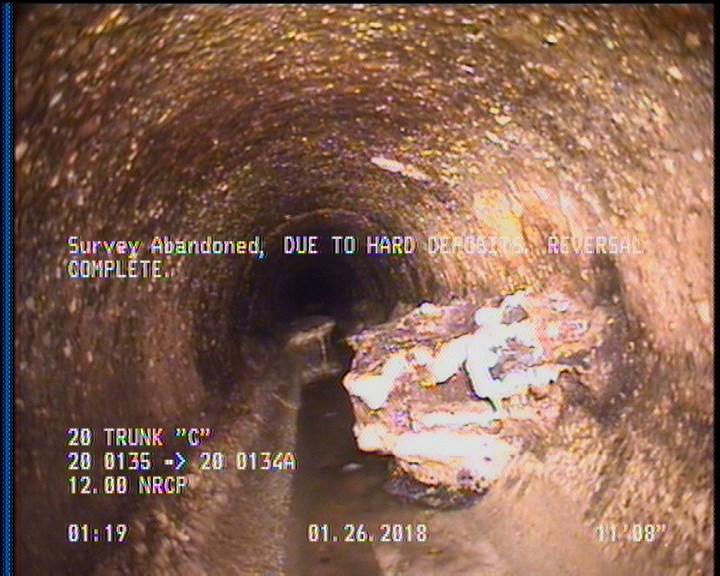

11.7 ft. - Survey Abandoned - DUE TO HARD DEPOSITS. REVERSAL COMPLETE.

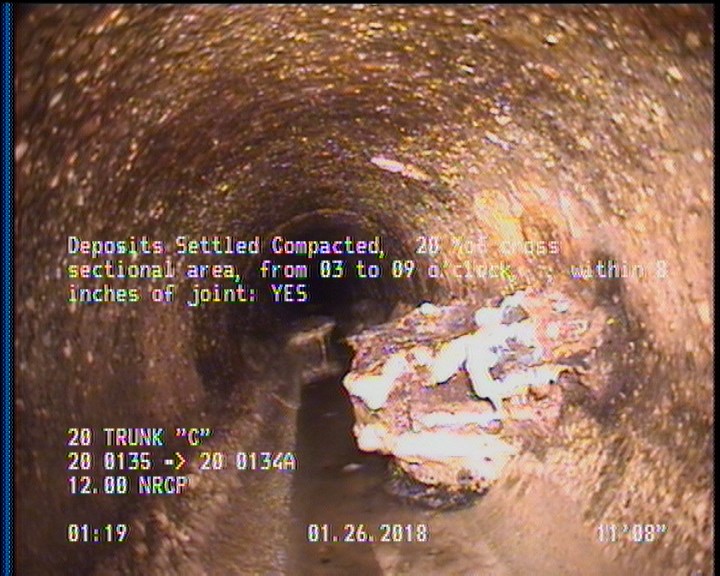

11.7 ft. - Deposits Settled Compacted, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 20 0135 |
| 0 | MWL | — |
| 2 | SAP | — |
| 11.7 | SAP | — |
| 2 | DAGS | — |
| 11.7 | DAGS | — |
| 11.7 | MSA | DUE TO HARD DEPOSITS. REVERSAL COMPLETE. |
| 11.7 | DSC | — |
Properties (6)
- additional_info
- SC346966
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-26T01:16:15-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
