Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 08:58 AM

  • 05 2287_05 2286 _01052018_010706.mp4

Date
01/05/2018
W/O
679437
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00429
PipeID
P07410
Time
12:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5366
Sewer Name
05 COLDEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_679437_TV05094_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2286
Downstream MH
05 2287
Dir. of Survey
Upstream
Length Surveyed
372.2 ft.
Total Length
372.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 2286 to 05 2287
MH: 05 2286MH: 05 2287upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 22874.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish57.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"96.1 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"138.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"177.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"218.1 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"258.9 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"297.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"338 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"370.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start372.2 ft. AMH - Downstream Manhole, Survey Begins - 05 2286372.2 ft. MWM - Water Mark, 20 %of cross sectional area372.2 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (1)

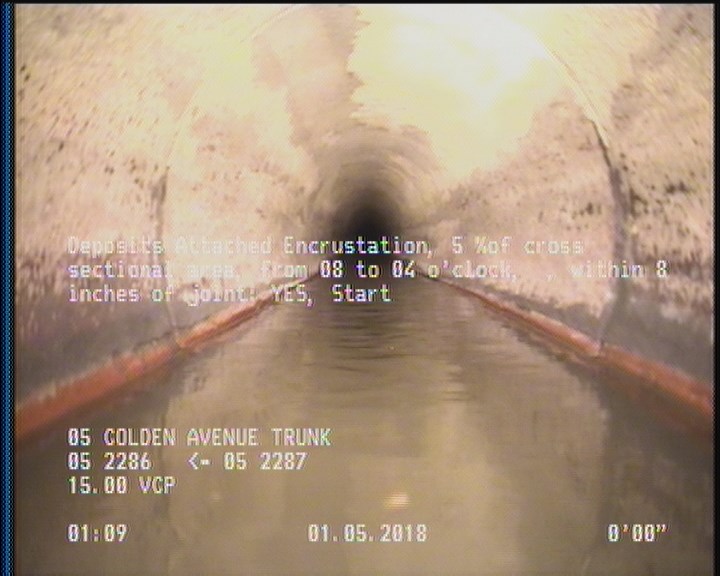

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07410Work order 679437

Observations (14)

DistanceCodeObservation
0AMH05 2286
372.2AMH05 2287
2DAE—
314.8TFA—
34.2TFA—
75TFA—
113.3TFA—
0MWM—
276.1TFA—
367.8DAE—
0MWL—
233.4TFA—
154.1TFA—
194.9TFA—

Properties (7)

additional_info
SC346443
custom_field_two
4
customer
LACSD
datetime
2018-01-05T00:58:21-08:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
28956
